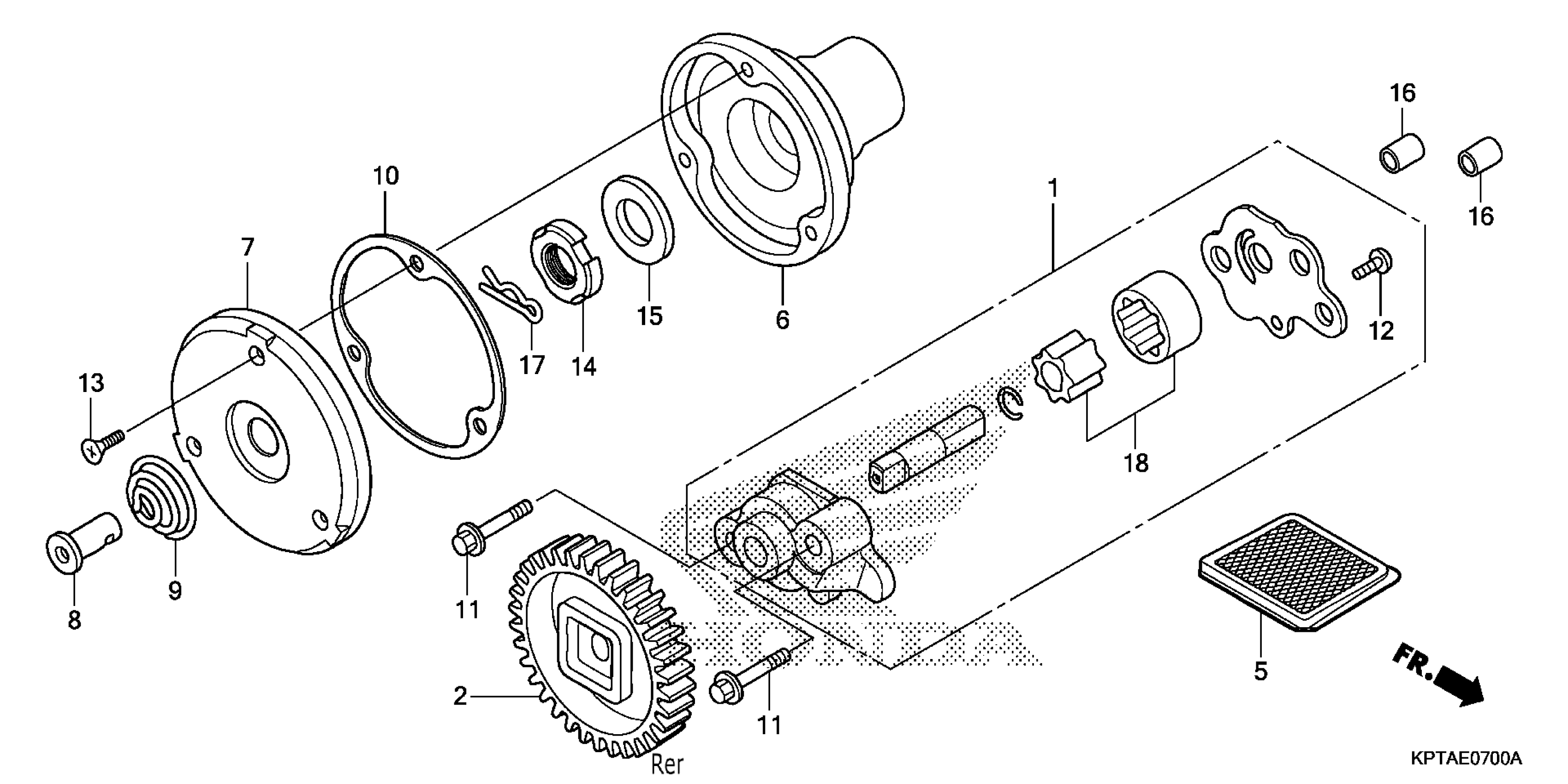

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-KVS-740

$66.77

GEAR, OIL PUMP DRIVE (34T)

15130-KRM-840

$56.70

SCREEN, OIL FILTER

15421-KSP-910

$3.65

ROTOR, OIL FILTER

15430-KSP-910

$8.39

CAP, OIL FILTER ROTOR

15436-KRM-840

$7.23

THROUGH, OIL

15441-KCS-650

$6.77

SPRING, OIL THROUGH

15446-107-000

$4.11

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.56

GSKT, OIL FILTER CAP

15459-K70-630

$3.56

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

SCREW, TAPPING (4X8)

93901-34120

$1.49

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

NUT, LOCK (14MM)

90231-KRM-840

$9.77

WASHER (14.2X26X3)

90432-KPT-A00

$1.85

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

PIN, LOCK (8MM)

90751-KPS-900

$1.49

ROTOR SET B, OIL PUMP

15022-KRE-G00

Unavailable
