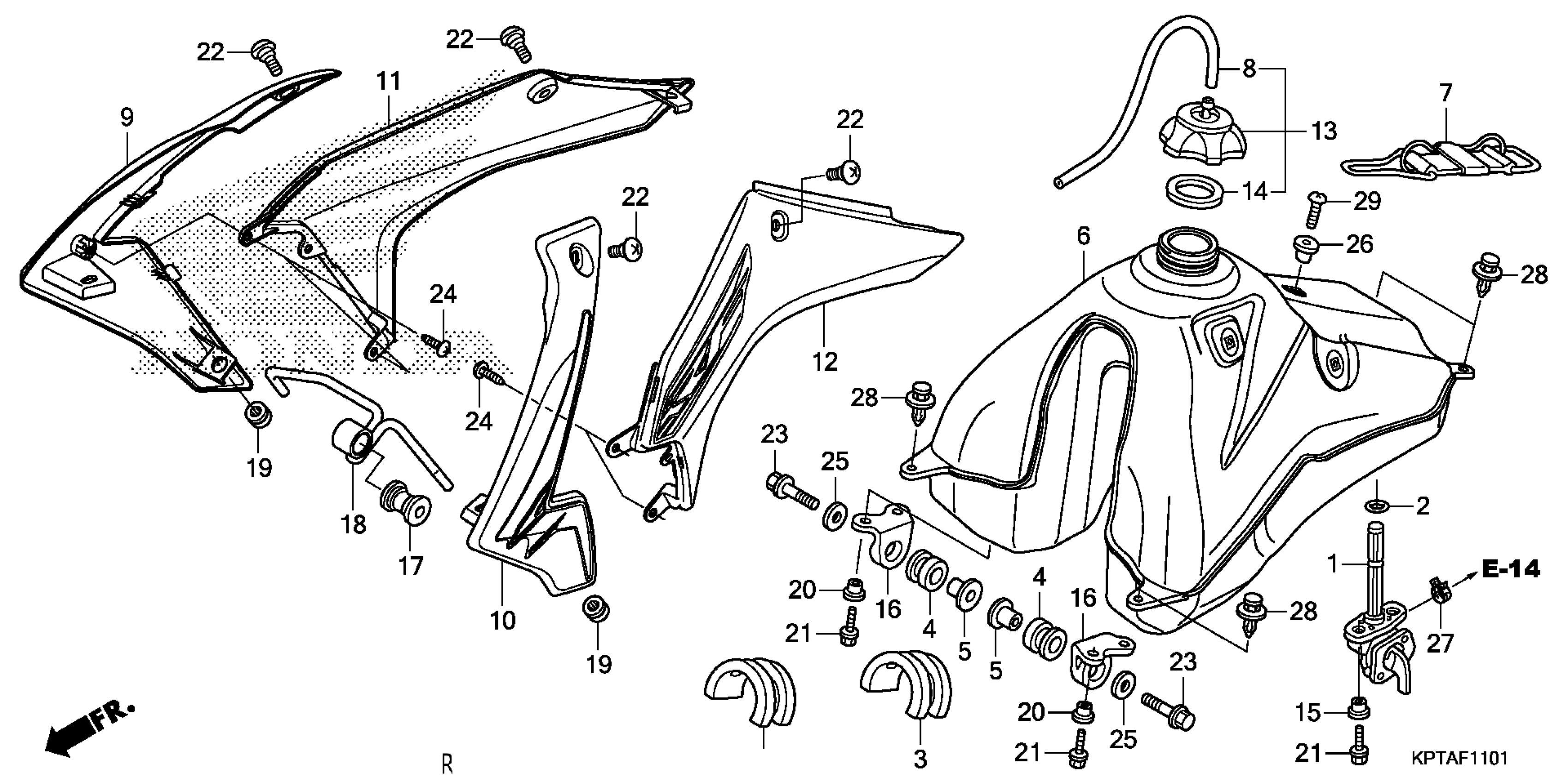

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 FUEL TANK (2) Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-GCF-671

$66.51

2

O-RING (11.8X3.55)

16997-467-000

$2.01

3

RUBBER, TANK SETTING

17506-KPS-900

$3.55

4

RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING

17508-GBF-830

$5.50

5

COLLAR, TANK SETTING

17509-KPS-900

$8.96

6

TANK, FUEL

17510-KPS-A10

$331.70

7

BAND, RR. TANK

17516-KPS-900

$13.81

8

TUBE, FUEL CAP BREATHER

17521-429-000

$6.49

9

SHROUD SET A, R. TANK (TYPE1) (WL)

17545-KPT-B80ZA

$209.74

10

SHROUD SET A, L. TANK (TYPE1) (WL)

17555-KPT-B80ZA

$209.74

11

SHROUD SET B, R. TANK (TYPE1) (WL)

17565-KPS-B70ZA

$145.78

12

SHROUD SET B, L. TANK (TYPE1) (WL)

17575-KPS-B70ZA

$144.93

13

CAP ASSY., FUEL TANK

17620-GEL-770

$28.24

14

GASKET, FUEL CAP

17624-GEL-770

$4.27

15

COLLAR, TANK SETTING

17626-KPS-900

$0.87

16

BRACKET, FR. FUEL TANK

17634-KPS-900

$1.99

17

RUBBER, MUFFLER MOUNTING

18421-KFB-000

$4.18

18

JOINT, SHROUD

19040-KPS-B70

$15.72

19

RUBBER, METER MOUNTING

37244-KVK-900

$1.16

20

COLLAR

84706-415-000

$2.13

21

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

22

SCREW A, COWL SETTING

90103-KV3-830

$2.80

23

BOLT, FLANGE (6X40)

90137-KA3-830

$2.64

24

SCREW, TAPPING (4X12)

93913-14220

$0.83

25

WASHER, TANK CUSHION

90503-898-000

$2.17

26

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.16

27

CLAMP, TUBE (D10.0)

90651-KPS-A11

$1.87

28

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

29

SCREW, PAN (6X18)

93500-06018-0A

$1.04
