Description

Price

1

CLAMP A, BRAKE HOSE

45461-KPS-900

$7.32

2

SPRING, FR. FORK

51401-KPT-901

$12.19

3

PIPE, FR. FORK

51410-KPT-901

$97.68

4

RING, BACK-UP

51412-422-003

$7.14

5

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$18.02

6

BUSH, SLIDER This part replaces 51415-KL4-951.

51415-MBV-711

Unavailable

7

SPRING, FR. REBOUND

51416-GC4-731

$7.53

8

DUST SEAL

51425-KL4-951

$8.03

9

CASE SET, R. (LOWER)

51430-KPT-B81

$112.29

10

PIECE, OIL LOCK

51432-KB7-003

$23.82

11

RING, PISTON

51437-461-003

$8.84

12

PIPE, SEAT

51440-KPT-B81

$20.90

13

RING, OIL SEAL STOPPER

51447-KL4-951

$3.84

14

BOLT, FR. FORK

51455-KE1-901

$41.32

15

FORK SET, R. FR. (COO)

51480-KPT-305

$396.32

16

SEAL SET, FR. FORK

51490-KL4-951

$24.76

17

CASE SET, L. (LOWER)

51530-KPT-B81

$110.85

18

FORK SET, L. FR. (COO)

51580-KPT-305

$396.32

19

BOOT, FR. FORK NH1 (BLACK) This part replaces 51611-KL4-952ZH.

51611-KL4-952ZK

$34.62

19

BOOT, FR. FORK NH1 (BLACK)

51611-KL4-952ZK

$34.62

20

BAND, FR. FORK BOOT

51612-428-900

$10.00

20

BAND, FR. FORK BOOT This part replaces 51612-473-000.

51612-428-900

$10.00

21

HOLDER, AXLE NH109MS (SHOT SILVER METALLIC SPECIAL)

51634-MK5-003ZK

$26.13

22

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

23

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

24

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

25

GASKET (SHOWA)

90544-439-930

$1.97

26

O-RING (25.7X2.8) (SHOWA)

91356-428-003

$3.44

27

BOLT, STUD (6X25) (R. SIDE ONLY)

92900-06025-0E

$0.96

28

SCREW, PAN (3X20)

93500-03020-0G

$0.69

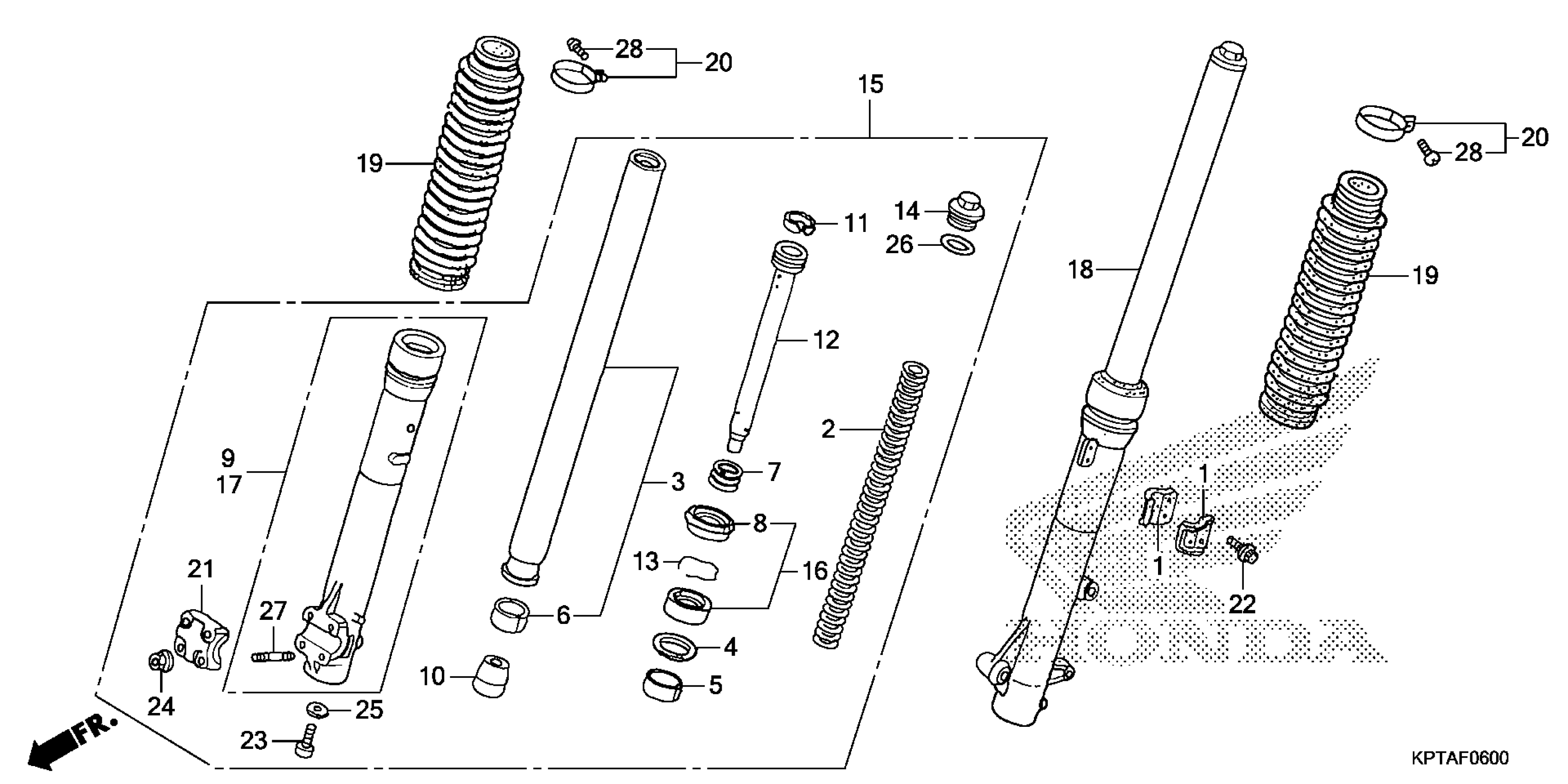

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 FRONT FORK Diagram
