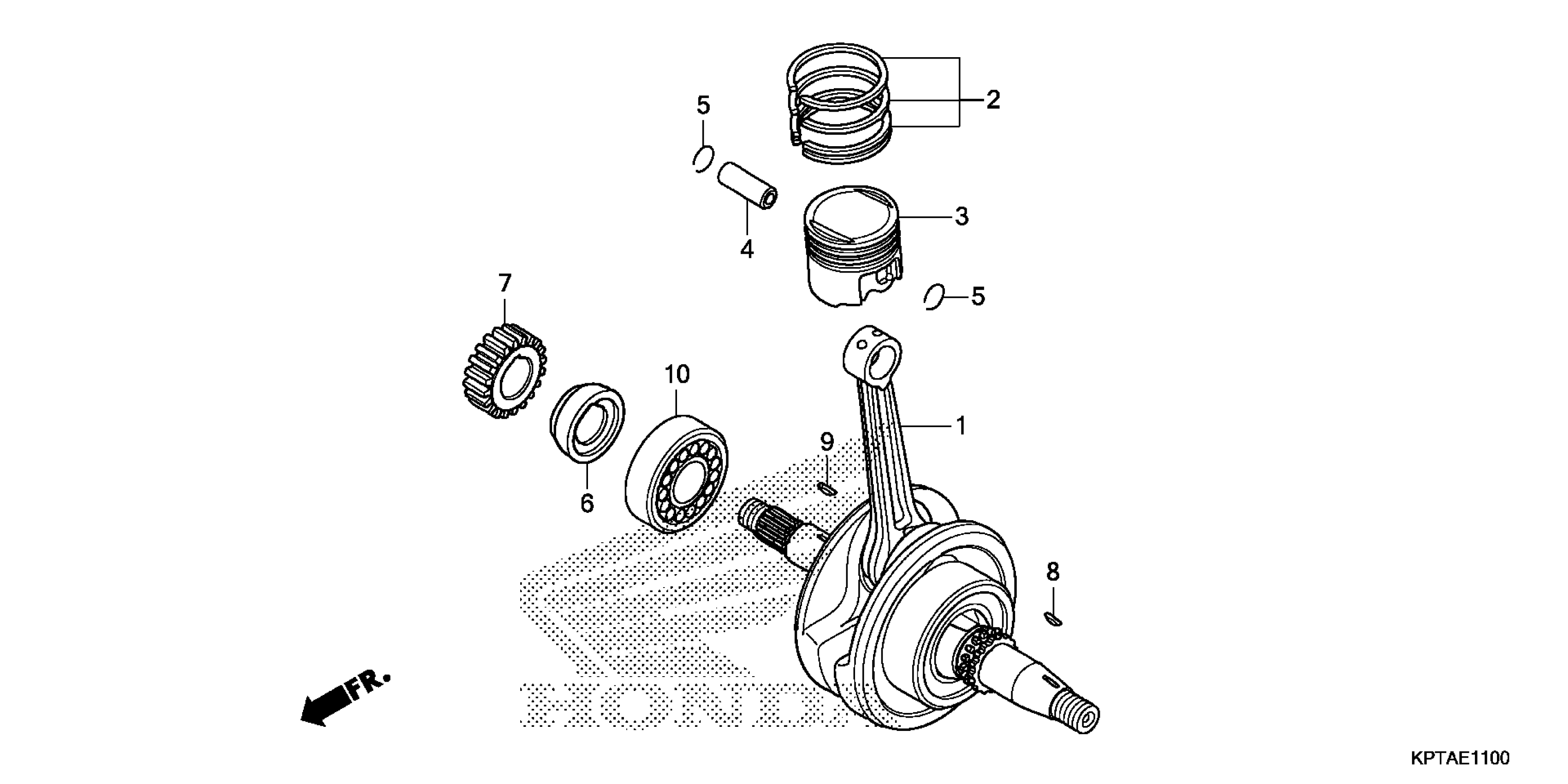

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 CRANKSHAFT@PISTON Diagram

CRANKSHAFT

13000-KSP-911

$243.29

RING SET, PISTON (STD)

13011-KRM-306

$60.26

RING SET, PISTON (0.25) | (Optional).

13021-KRM-306

$59.03

RING SET, PISTON (0.50) | (Optional).

13031-KRM-306

$90.70

RING SET, PISTON (0.75) | (Optional).

13041-KRM-306

$53.38

RING SET, PISTON (1.00) | (Optional).

13051-KRM-306

$53.38

PISTON (STD)

13101-KRM-930

$38.39

PISTON (0.25) | (Optional).

13102-KRM-305

$53.07

PISTON (0.50) | (Optional).

13103-KRM-305

$54.33

PISTON (0.75) (NA USE ALT:13105-KRM-315) | (Optional).

13104-KRM-305

Unavailable

PISTON (1.00) (NA USE ALT:13105-KRM-315) | (Optional).

13105-KRM-305

Unavailable

PIN, PISTON

13111-KRM-840

$7.18

PIN, PISTON (NOT AVAILABLE)

13111-KTT-900

$9.69

CLIP, PISTON PIN (14MM)

13112-KRM-840

$1.49

COLLAR, R. CRANKSHAFT

13412-KTE-910

$14.05

GEAR, PRIMARY DRIVE (20T)

23121-KRM-840

$34.62

KEY, WOODRUFF (4MM)

90741-KFB-000

$2.92

KEY, WOODRUFF (4MM)

90741-KGH-900

$2.26

BEARING, ROLLER (30X58X17) (NTN)

91001-KRM-842

$57.11
