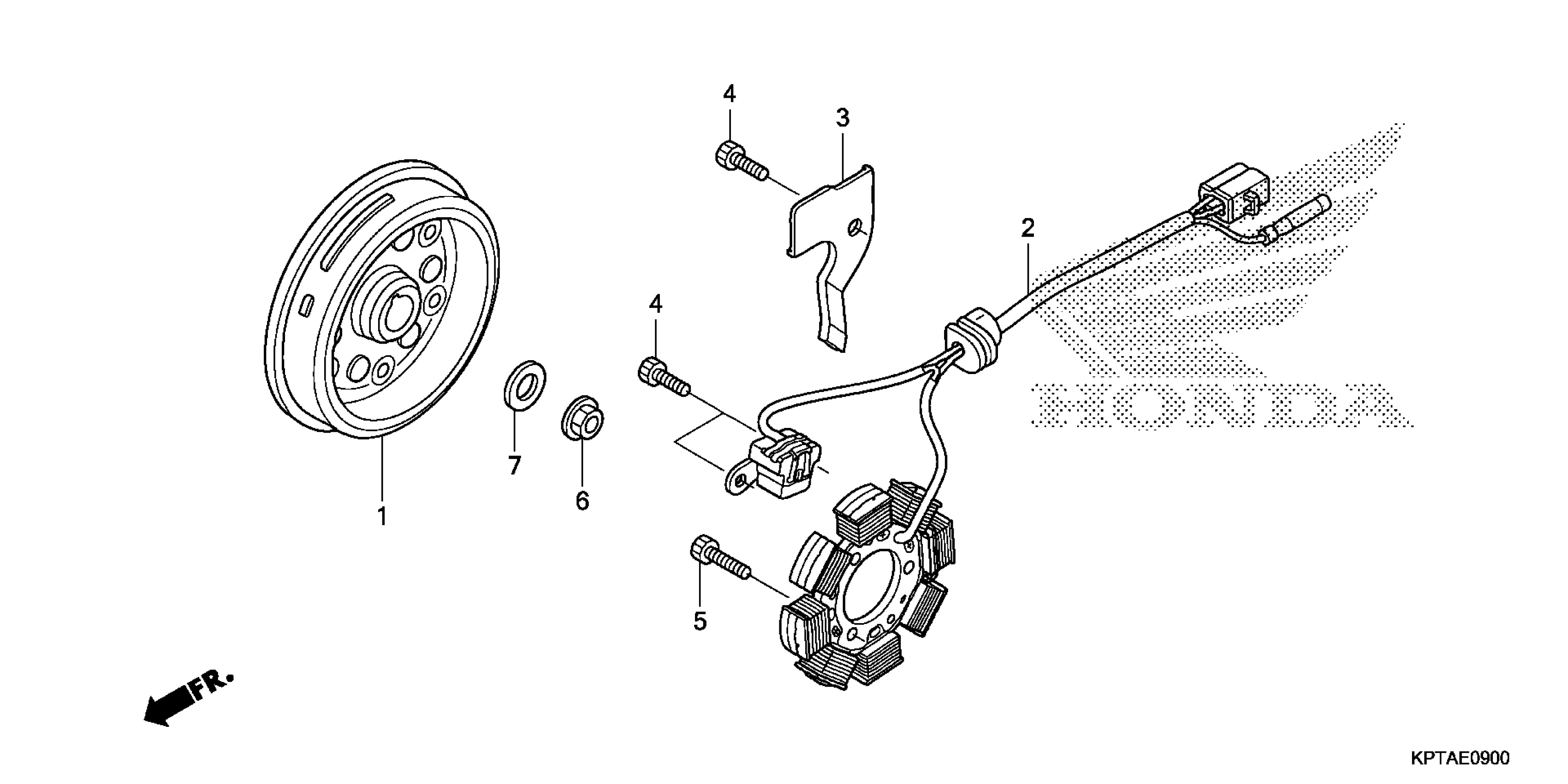

Honda CRF150FAC (17) MOTORCYCLE, BRA, VIN# 9C2KE021-HR100001 ALTERNATOR Diagram

#

Description

Price

1

FLYWHEEL

31110-KPT-A01

$167.64

2

STATOR

31120-KPT-A01

$139.01

3

CLAMP, ALTERNATOR WIRE

32111-KSP-910

$0.80

4

BOLT, SOCKET (6X16)

90009-KRM-840

$7.64

5

BOLT, SOCKET (6X22) This part replaces 90010-KRM-840.

96600-06022-00

$1.64

6

NUT, FLANGE (14MM)

90201-KRM-840

$1.41

7

WASHER (14.1X29X2.8)

90501-KPT-A00

$2.78
