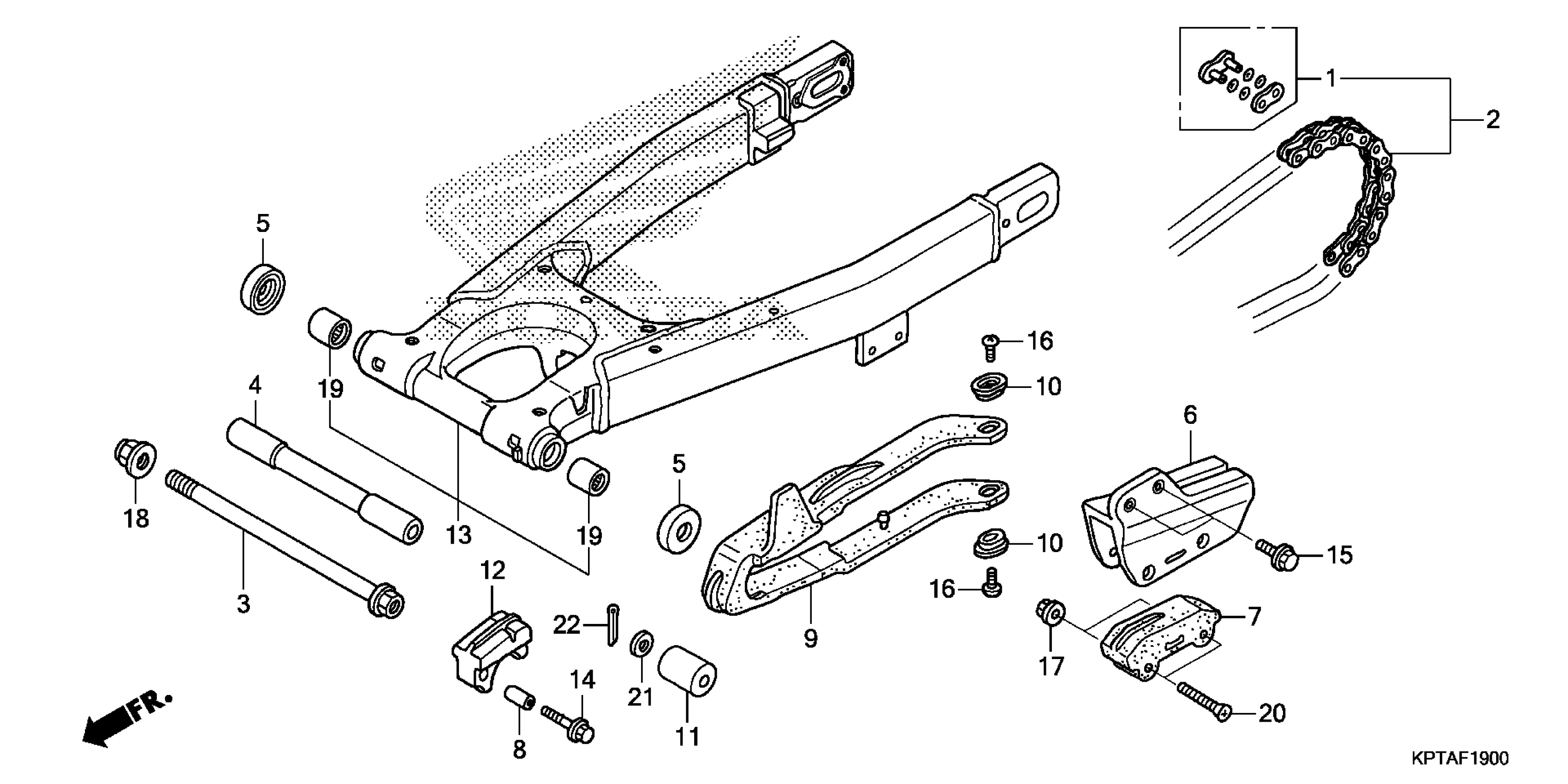

Honda CRF150FAC (15) MOTORCYCLE, BRA, VIN# 9C2KE021-FR100001 TO 9C2KE021-FR199999 SWINGARM Diagram

#

Description
Price

1

MASTER LINK SET (SEAL TYPE) (DAIDO)

40535-KCR-305

$6.82

1

MASTER LINK SET (SEAL TYPE) (RK EXCEL)

40535-KCR-306

$7.54

2

CHAIN, DRIVE (DID520V6-120ZB) (DAIDO) (STANDARD LINK 110L)

40540-KCR-305

$192.57

2

CHAIN, DRIVE (RK EXCEL) (RK520SMOZ2-120LJ-FZ) (STANDARD LINK 110L)

40540-KCR-306

$192.57

3

BOLT, SWINGARM PIVOT

52101-KPS-900

$35.37

4

COLLAR, SWINGARM PIVOT CENTER DISTANCE

52141-KPS-900

$37.57

5

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$15.89

5

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$15.89

5

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$15.89

5

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$15.89

5

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$15.89

6

GUIDE, CHAIN

52146-KPS-900

$41.76

7

SLIDER, CHAIN GUIDE

52147-MN1-670

$12.83

8

COLLAR, CHAIN SLIPPER

52159-KPE-900

$0.66

9

SLIDER, CHAIN

52170-KPT-A00

$59.31

10

WASHER, CHAIN SLIDER This part replaces 52171-KPS-900.

52171-KR6-000

$2.38

10

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

11

ROLLER, CHAIN (UPPER)

52175-KPS-900

$8.21

12

SLIDER, CHAIN (LOWER)

52185-KPS-900

$23.43

13

SWINGARM SUB-ASSY., RR.

52200-KPT-900

$233.65

14

BOLT, FLANGE (6X28) This part replaces 90032-GHR-710.

90106-KPS-900

$1.21

14

BOLT, FLANGE (6X28)

90106-KPS-900

$1.21

14

BOLT, FLANGE (6X28)

95701-06028-00

$1.68

15

BOLT, FLANGE (6X16)

90103-MY6-670

$3.56

16

SCREW, PAN (5X8)

90115-KPS-900

$0.75

17

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

18

NUT, U (14MM)

90305-GE8-003

$3.69

19

BEARING, NEEDLE (20X26X20)

91070-KPE-901

$8.88

20

SCREW, FLAT (6X45)

93600-06045-0A

$0.87

21

WASHER, PLAIN (8MM)

94102-08700

$0.87

22

PIN, COTTER (2.0X15)

94201-20150

$0.96
