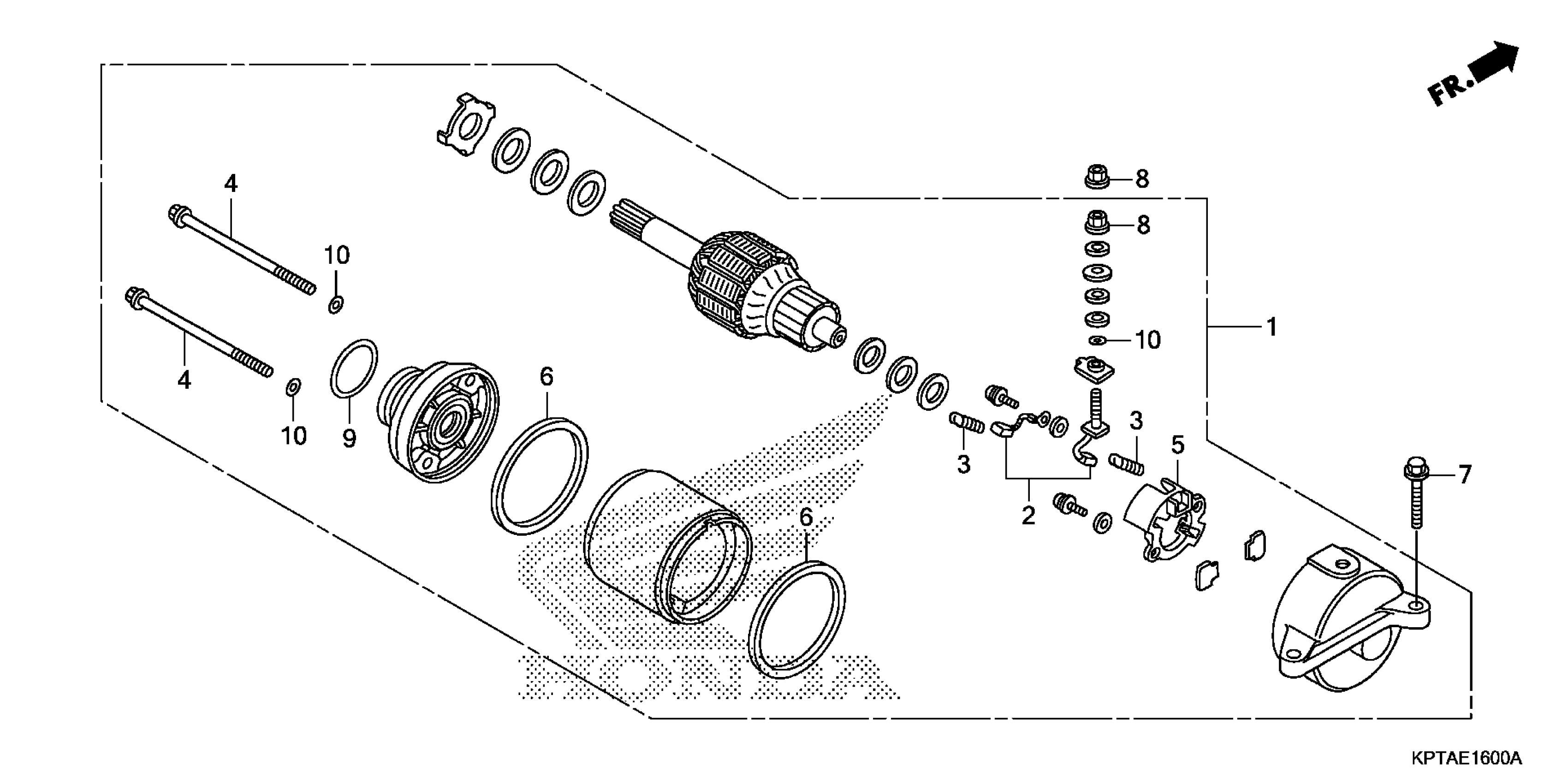

Honda CRF150FAC (13) MOTORCYCLE, BRA, VIN# 9C2KE021-DR100001 TO 9C2KE021-DR199999 STARTING MOTOR Diagram

STARTER MOTOR ASSY.

31200-KPT-A01

$402.98

TERMINAL SET, BRUSH This part replaces 31201-KPT-A01.

31201-KVS-J01

$12.34

TERMINAL SET, BRUSH

31201-KVS-J01

$12.34

SPRING, CARBON BRUSH

31204-KG8-004

$3.53

BOLT, SETTING

31205-KPT-A01

$1.85

HOLDER, BRUSH

31206-KPH-881

$76.33

RING

31207-MBE-008

$4.28

BOLT, FLANGE (6X25)

90032-GHR-700

$1.72

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

$6.34

O-RING (Honda Code 1292184)

91320-MB0-000

$2.43
