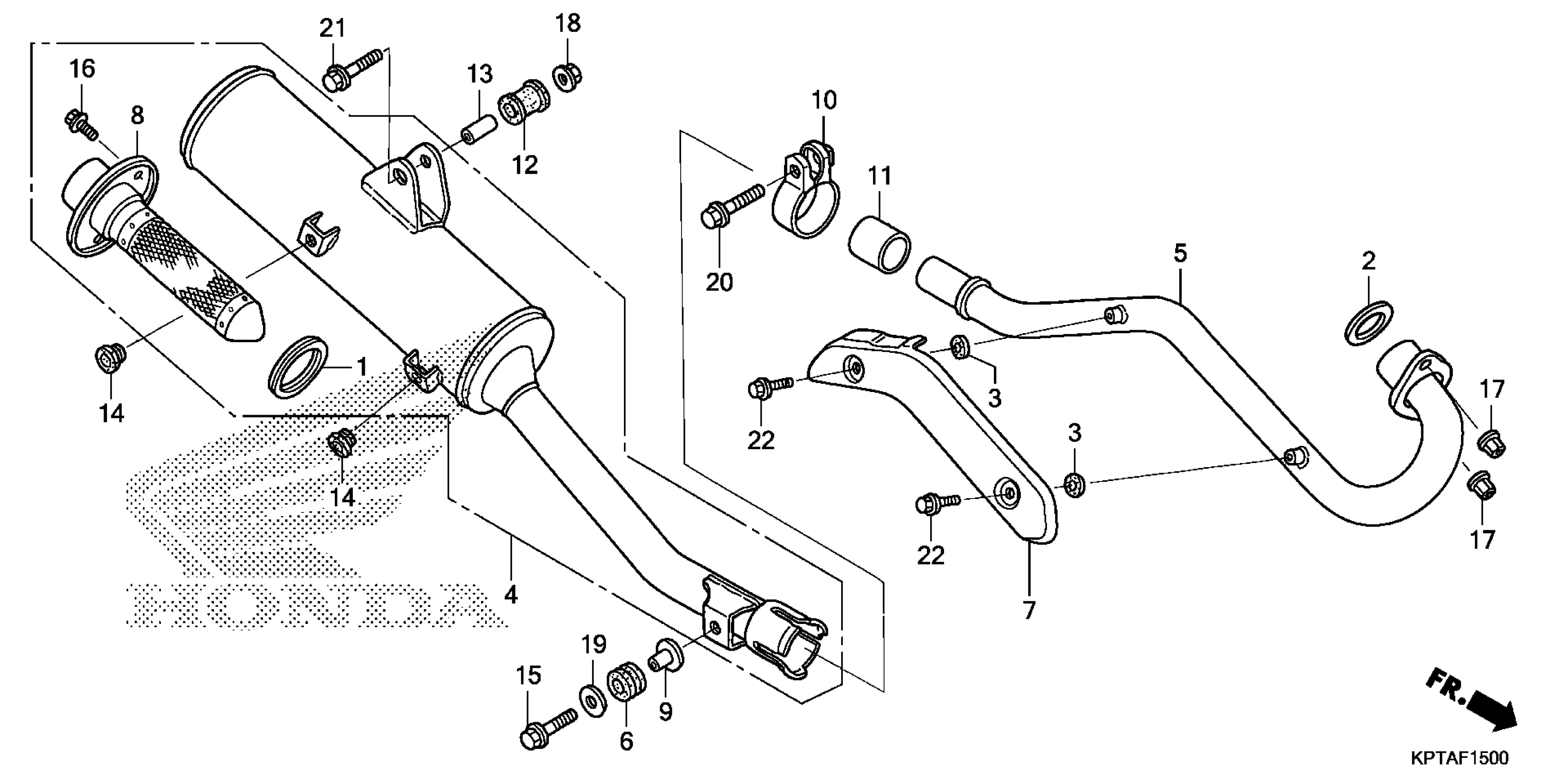

Honda CRF150FAC (13) MOTORCYCLE, BRA, VIN# 9C2KE021-DR100001 TO 9C2KE021-DR199999 MUFFLER Diagram

GASKET, EX. MUFFLER

18291-KPS-900

$7.52

GASKET, EX. PIPE

18291-MN5-650

$3.77

GASKET, PROTECTOR

18292-KBR-000

$3.45

MUFFLER ASSY., EX. (COO)

18300-KPT-305

Unavailable

PIPE, EX.

18320-KPT-A00

$56.02

RUBBER, RR. CHAMBER MOUNTING

18328-KAE-000

$2.26

PROTECTOR, EX. PIPE *NH106* (HEATPROOF BLACK)

18345-KPT-A00ZA

$112.05

ARRESTER ASSY.

18355-KPT-A00

$225.13

ARRESTER ASSY. This part replaces 18355-KPT-305.

18355-KPT-A00

$225.13

COLLAR, MUFFLER MOUNTING

18356-KAE-000

$4.57

BAND, EX. PIPE

18373-KRH-D20

$53.16

GASKET, MUFFLER

18391-MB0-891

$17.92

RUBBER, MUFFLER MOUNTING

18421-KFB-000

$4.49

COLLAR, MUFFLER MOUNTING

18422-KFB-000

$4.46

RUBBER, SIDE COVER

83512-KPS-730

$1.62

BOLT, FLANGE (8X30)

90033-GHR-F20

$1.49

BOLT, FLANGE (8X30)

95701-08030-07

$2.28

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

NUT, FLANGE (8MM)

90208-GHR-640

$2.41

NUT, FLANGE (8MM) This part replaces 90306-KPS-900.

90208-GHR-640

$2.41

NUT, FLANGE (8MM)

94050-08070

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

BOLT-WASHER (8X40) This part replaces 95701-08040-07.

90141-GGZ-J00

$2.43

BOLT, FLANGE (8X45)

95701-08045-07

$2.17

BOLT, FLANGE (6X8)

96001-06008-07

$1.49
