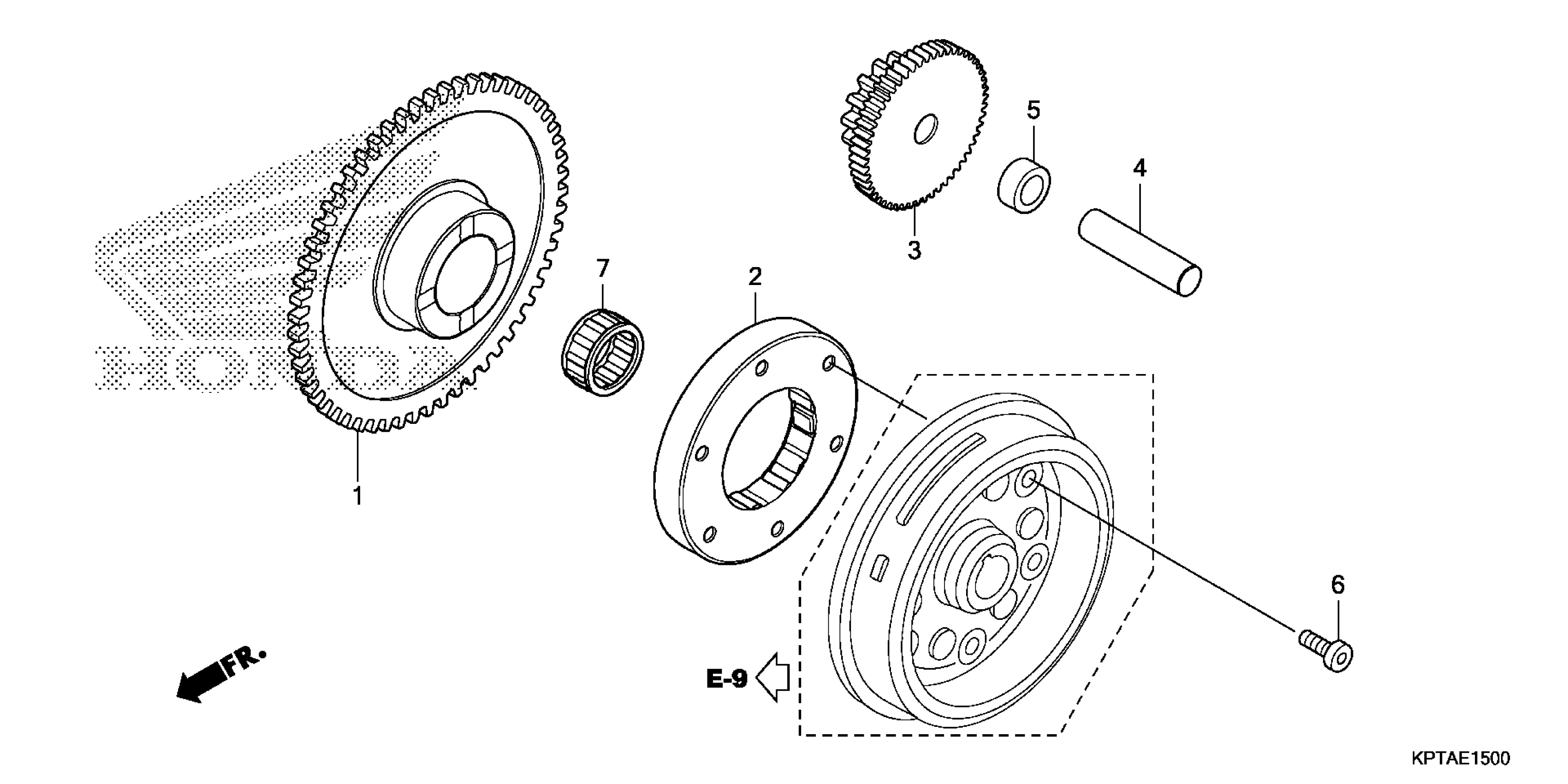

Honda CRF150FAC (12) MOTORCYCLE, BRA, VIN# 9C2KE021-CR100001 TO 9C2KE021-CR199999 STARTING CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER DRIVEN (58T)

28110-KRM-850

$141.46

2

CLUTCH OUTER, STARTING

28120-KRM-851

$107.24

3

GEAR, STARTER REDUCTION (15/53T) (HITACHI FUNMATSU)

28131-KVS-851

$42.21

4

SHAFT, REDUCTION GEAR

28132-KN6-930

$10.09

5

COLLAR, STARTER REDUCTION

28133-KRM-850

$0.97

6

BOLT, SOCKET (6MM)

90085-KRM-850

$0.88

7

BEARING, NEEDLE (22X29X16.8)

91071-KRM-851

$8.15

7

BEARING, NEEDLE (22X29X16.8)

91071-KRM-870

$28.37
