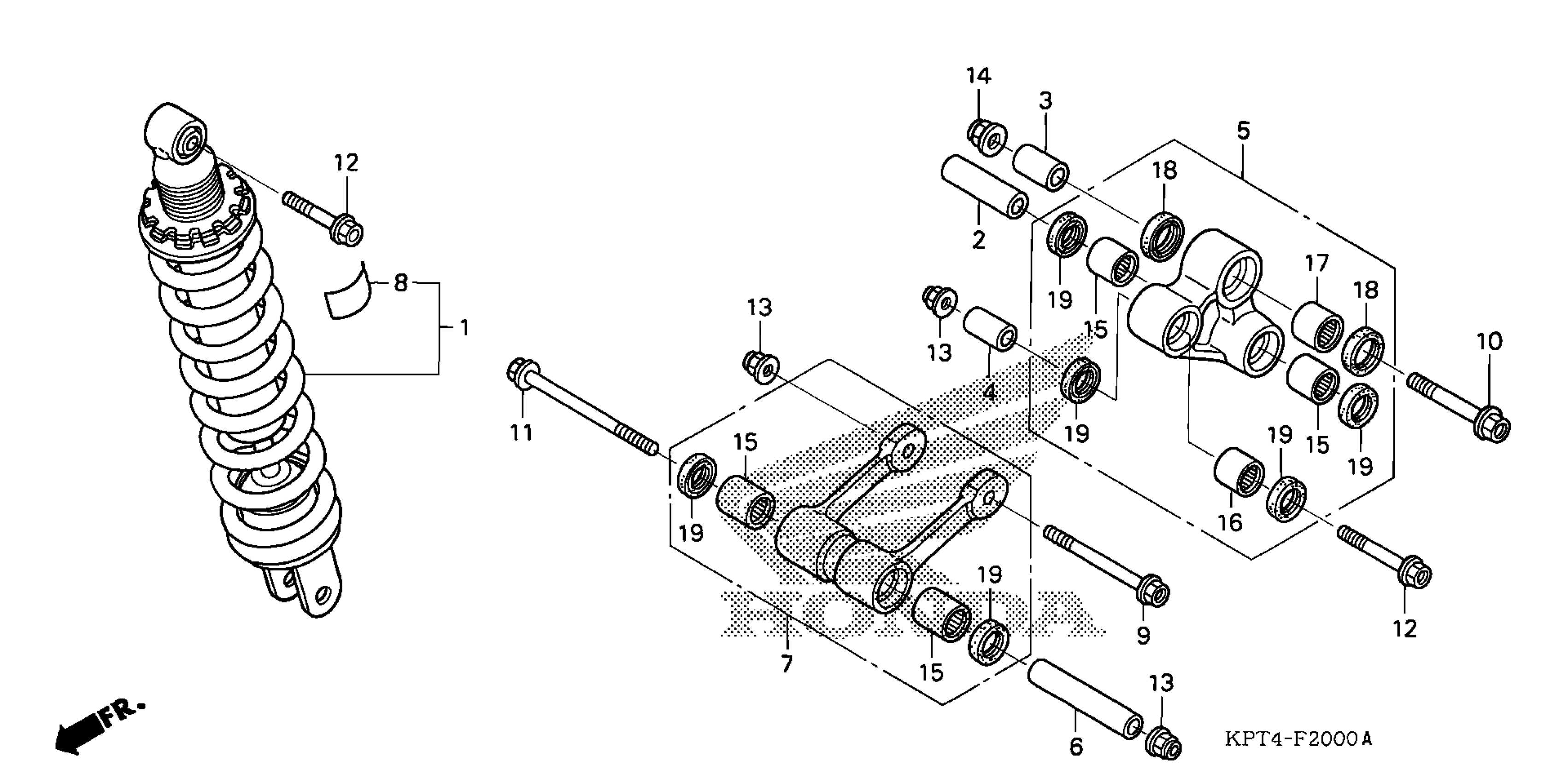

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY.

52490-KPT-A31

$338.35

COLLAR A, CUSHION ARM

52462-KPS-900

$5.97

COLLAR B, CUSHION ARM

52463-KPE-900

$6.57

COLLAR C, CUSHION ARM

52464-KPE-900

$4.87

ARM SUB-ASSY., CUSHION

52465-KPT-900

$136.38

COLLAR, CONNECTING ROD

52472-KPS-900

$6.99

ROD SUB-ASSY., CUSHION CONNECTING

52475-KPT-900

$156.49

LABEL, RR. DAMPER

87516-MBL-610

$3.93

BOLT, FLANGE (10X100)

90101-KPS-900

$5.09

BOLT, FLANGE (12X78)

90102-KFB-000

$5.13

BOLT, FLANGE (10X118)

90102-KPS-900

$4.52

BOLT, FLANGE (10X52)

90154-KPS-900

$2.46

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

BEARING, NEEDLE (20X26X20)

91072-MY1-005

$16.63

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.27

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
