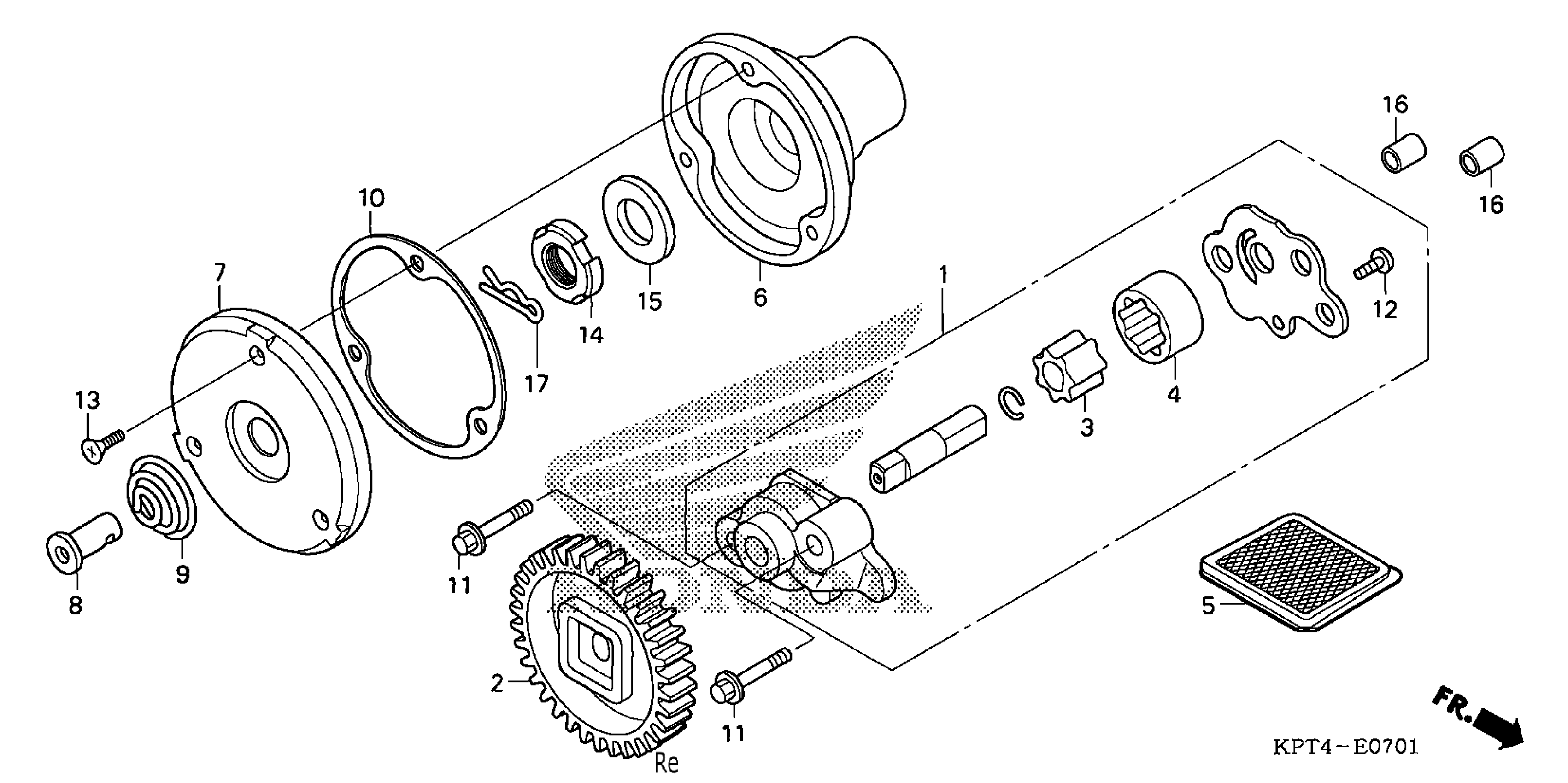

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 OIL PUMP (2) Diagram

PUMP ASSY., OIL This part replaces 15100-KPT-A00.

15100-KVS-740

$59.90

PUMP ASSY., OIL

15100-KVS-740

$59.90

GEAR, OIL PUMP DRIVE (34T)

15130-KRM-840

$50.87

ROTOR, OIL PUMP (INNER)

15331-KPT-A00

$1.94

ROTOR, OIL PUMP (OUTER)

15332-KRM-840

$3.57

SCREEN, OIL FILTER

15421-KSP-910

$3.26

ROTOR, OIL FILTER

15430-KSP-910

$7.53

CAP, OIL FILTER ROTOR

15436-KRM-840

$6.49

THROUGH, OIL This part replaces 15441-KPS-900.

15441-KCS-650

$6.25

SPRING, OIL THROUGH This part replaces 15446-KPS-900.

15446-107-000

$3.81

SPRING, OIL THROUGH

15446-107-000

$3.81

GSKT, OIL FILTER CAP This part replaces 15459-KRM-840.

15459-K70-630

$3.30

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.30

BOLT, FLANGE (6X35)

90032-GHR-740

$8.90

SCREW, TAPPING (4X8)

90106-GHR-J20

$0.87

SCREW, TAPPING (4X8)

93901-34120

$0.90

SCREW, OVAL (5X12)

90112-KPS-900

$1.04

NUT, LOCK (14MM)

90231-KRM-840

$8.76

WASHER (14.2X26X3)

90432-KPT-A00

$1.66

PIN, DOWEL (8X14)

90702-KRM-840

$0.62

PIN, LOCK (8MM)

90751-KPS-900

$0.35
