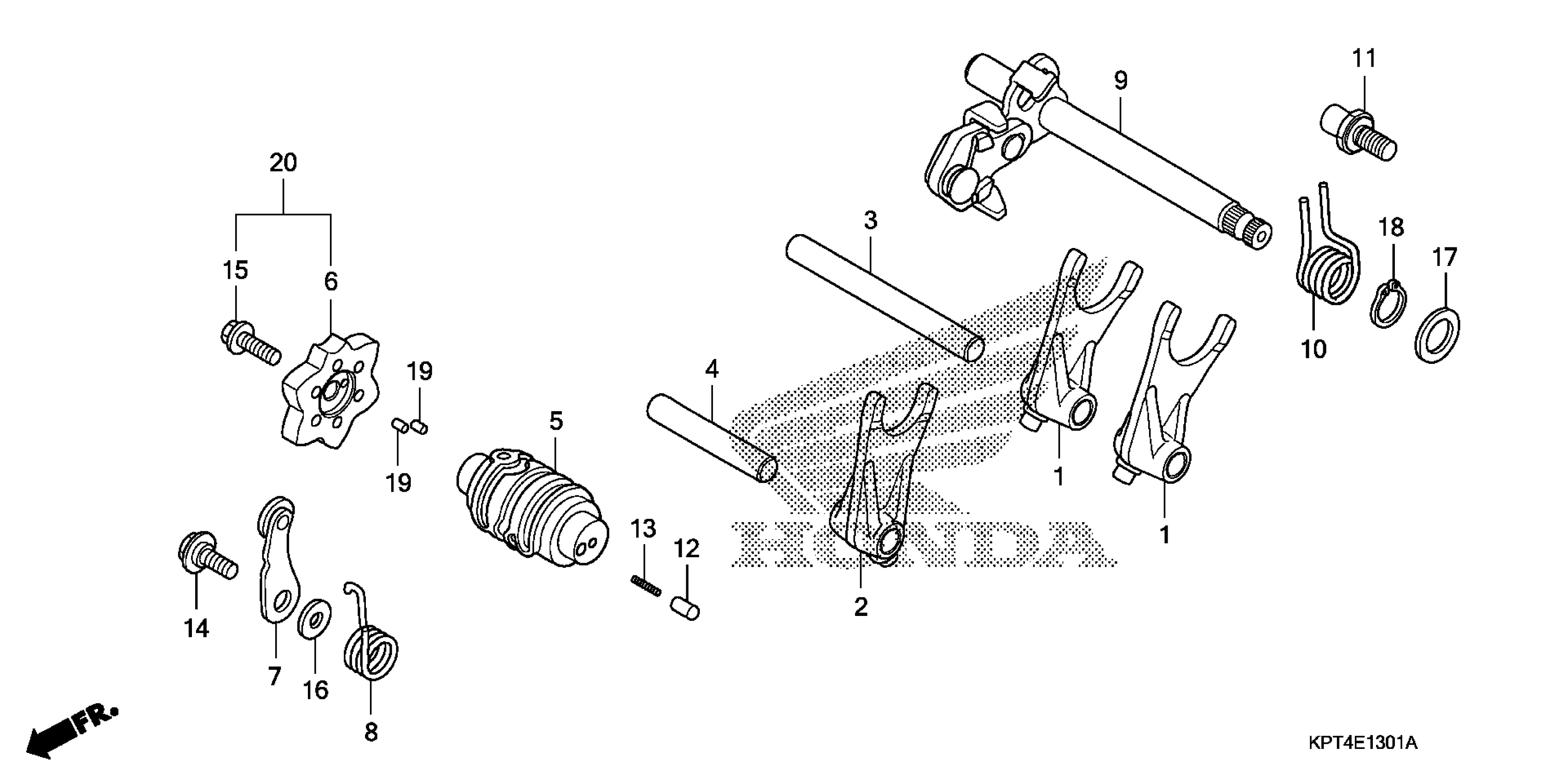

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 GEARSHIFT DRUM (2) Diagram

FORK, GEARSHIFT

24211-KPT-A00

$35.22

FORK, CENTER GEARSHIFT

24212-KPT-A00

$43.68

SHAFT A, GEARSHIFT FORK

24241-KRM-840

$6.62

SHAFT B, GEARSHIFT FORK

24242-KRM-840

$6.93

DRUM,GEAR SHIFT This part replaces 24301-KPT-A00.

24301-KVS-740

$43.72

PLATE, SHIFT DRUM STOPPER

24410-KRM-840

Unavailable

STOPPER, GEARSHIFT DRUM

24430-KRM-B10

$11.28

SPRING, SHIFT DRUM STOPPER

24436-KRM-840

$0.72

SPINDLE, GEARSHIFT

24610-KRM-840

$28.13

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.32

PIN, SHIFT RETURN SPRING

24652-KRM-840

$5.88

CAP, CHANGE SWITCH CONTACT

35751-KPH-900

$0.58

CAP, CHANGE SWITCH CONTACT This part replaces 35751-KRM-840.

35751-KPH-900

$0.58

SPRING, CHANGE SWITCH CONTACT

35752-KRM-840

$0.46

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.26

BOLT, FLANGE (6X16)

90032-GHR-660

$1.26

WASHER, DRUM STOPPER This part replaces 90417-KRM-840.

90417-360-000

$1.58

WASHER, DRUM STOPPER

90417-360-000

$1.58

WASHER (14MM)

90457-KRM-840

$0.67

CIRCLIP (OUTER) (14MM) This part replaces 90606-KRM-840.

94510-14000

$0.93

CIRCLIP, OUTER (14MM)

94510-14000

$0.93

ROLLER (3X8.5)

96220-30085

$0.48
