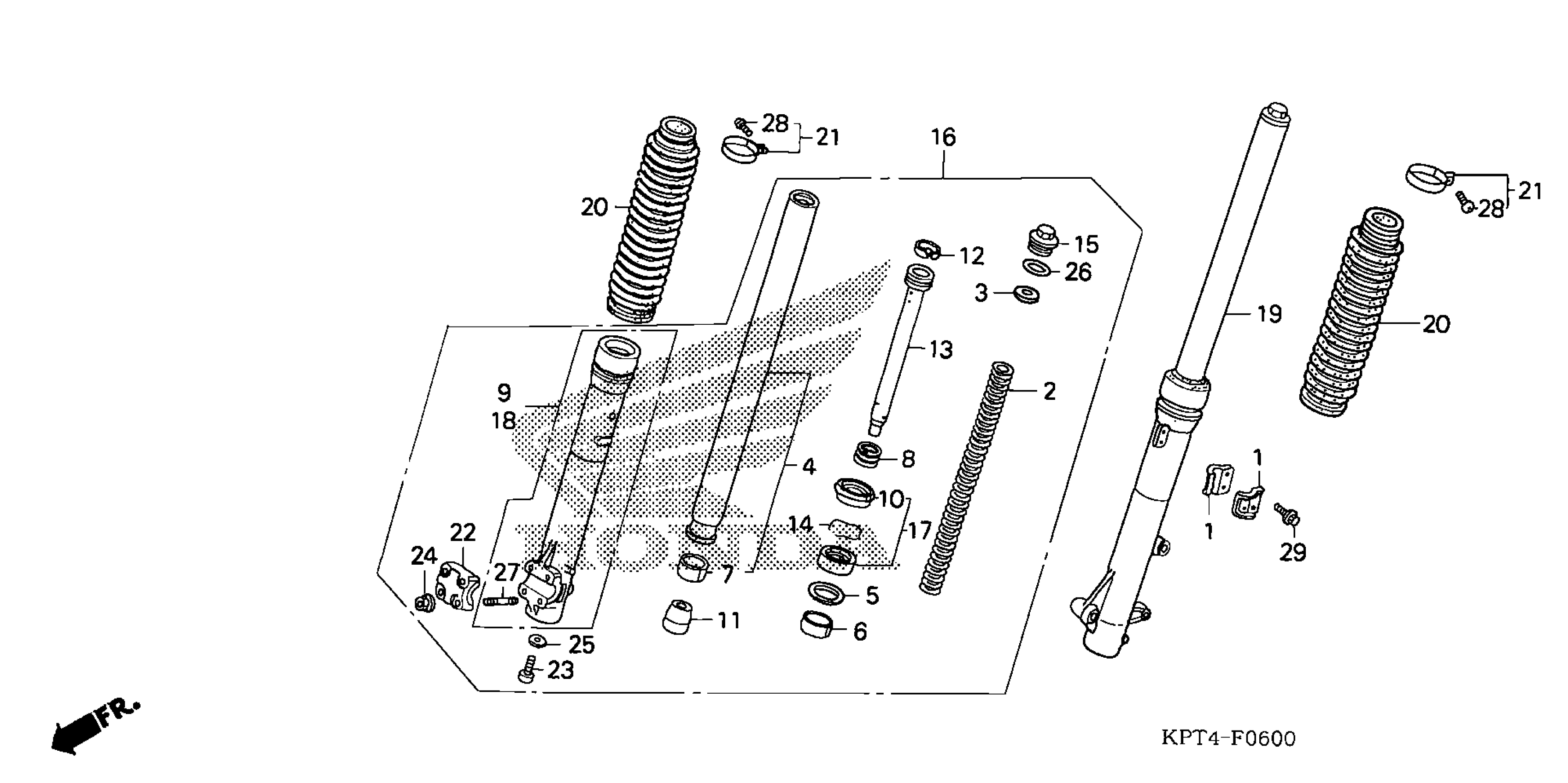

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-KPS-900

$7.32

2

SPRING, FR. FORK

51401-KPT-901

$12.19

4

PIPE, FR. FORK

51410-KPT-901

$97.68

5

RING, BACK-UP

51412-422-003

$7.14

6

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$18.02

7

BUSH, SLIDER This part replaces 51415-KL4-951.

51415-MBV-711

Unavailable

8

SPRING, FR. REBOUND

51416-GC4-731

$7.53

9

CASE SET, R. (LOWER)

51430-KPT-A01

$95.21

10

DUST SEAL

51425-KL4-951

$8.03

11

PIECE, OIL LOCK

51432-KB7-003

$23.82

12

RING, PISTON

51437-461-003

$8.84

13

PIPE, SEAT

51440-KPT-A01

$18.41

14

RING, OIL SEAL STOPPER

51447-KL4-951

$3.84

15

BOLT, FR. FORK

51455-KE1-901

$41.32

16

FORK SET, R. FR. (COO) This part replaces 51480-KPT-A01.

51480-KPT-305

$396.32

16

FORK SET, R. FR. (COO)

51480-KPT-305

$396.32

17

SEAL SET, FR. FORK

51490-KL4-951

$24.76

18

CASE SET, L. (LOWER)

51530-KPT-A01

$91.43

19

FORK SET, L. FR. (COO) This part replaces 51580-KPT-A01.

51580-KPT-305

$396.32

19

FORK SET, L. FR. (COO)

51580-KPT-305

$396.32

20

BOOT, FR. FORK *NH1* (BLACK) | Extreme red R292R;

51611-KL4-952ZK

$34.62

21

BAND, FR. FORK BOOT

51612-428-900

$10.00

21

BAND, FR. FORK BOOT This part replaces 51612-473-000.

51612-428-900

$10.00

22

HOLDER, AXLE

51634-MA0-003

$34.40

23

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

24

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.89

25

GASKET (SHOWA)

90544-439-930

$1.97

26

O-RING (25.7X2.8) (SHOWA)

91356-428-003

$3.44

27

BOLT, STUD (6X25) (R. SIDE ONLY)

92900-06025-0E

$0.96

28

SCREW, PAN (3X20)

93500-03020-0G

$0.69

29

BOLT, FLANGE (6X14)

90040-GHR-650

$2.50
