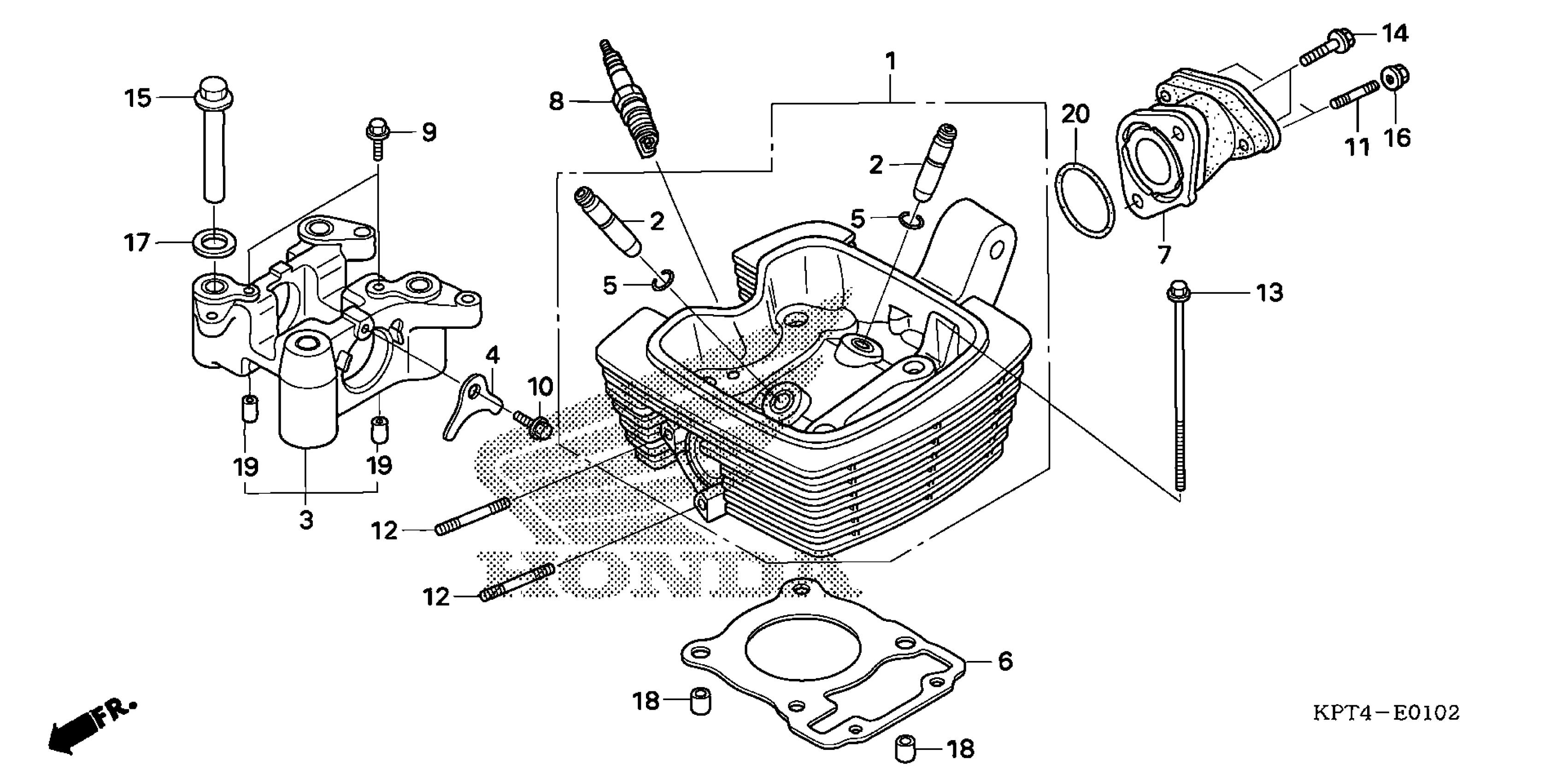

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 CYLINDER HEAD (3) Diagram

CYLINDER HEAD

12200-KPT-A00

$163.25

GUIDE, VALVE (OVER SIZE)

12204-KRM-305

$12.79

HOLDER, CAMSHAFT This part replaces 12210-KRM-840.

12210-K13-910

$37.43

HOLDER, CAMSHAFT

12210-K13-910

$37.43

PLATE, STOPPER

12212-KRM-840

$2.26

CLIP, VALVE GUIDE

12213-KRM-840

$1.49

GASKET, CYLINDER HEAD

12251-KRM-B41

$6.36

INSULATOR, CARBURETOR

16210-KPT-A00

Unavailable

SPARK PLUG (CPR8EA-9) (NGK)

31916-KRM-841

$5.82

SPARK PLUG (CPR9EA-9) (NGK) (NA USE ALT:31916-KRM-841) | (Optional).

31926-KRM-841

Unavailable

BOLT, FLANGE (5X14)

90002-KRM-840

$1.49

BOLT, FLANGE (6X14)

90032-GHR-650

$1.61

BOLT, STUD (6X16)

90033-KPT-900

$1.49

BOLT, STUD (8X22)

90035-KRM-840

$10.62

BOLT, FLANGE (6X105) This part replaces 90036-GHR-890.

90036-KVS-900

$3.89

BOLT, FLANGE (6X105)

90036-KVS-900

$3.89

BOLT, FLANGE SOCKET (6X22)

90091-KRM-840

$1.49

NUT, CYLINDER HEAD

90306-KRM-840

$2.92

NUT, FLANGE (6MM) This part replaces 90208-GHR-630.

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (12MM)

90404-KPT-A00

$1.49

PIN, DOWEL (10X12) This part replaces 90703-KRM-840.

94301-10120

$2.28

PIN, DOWEL (10X12)

94301-10120

$2.28

PIN, DOWEL (6X10)

90704-KRM-840

$1.49

PIN, DOWEL (6X10)

94303-06100

$2.25

O-RING (33.5X3.0)

91304-KRM-840

$3.10
