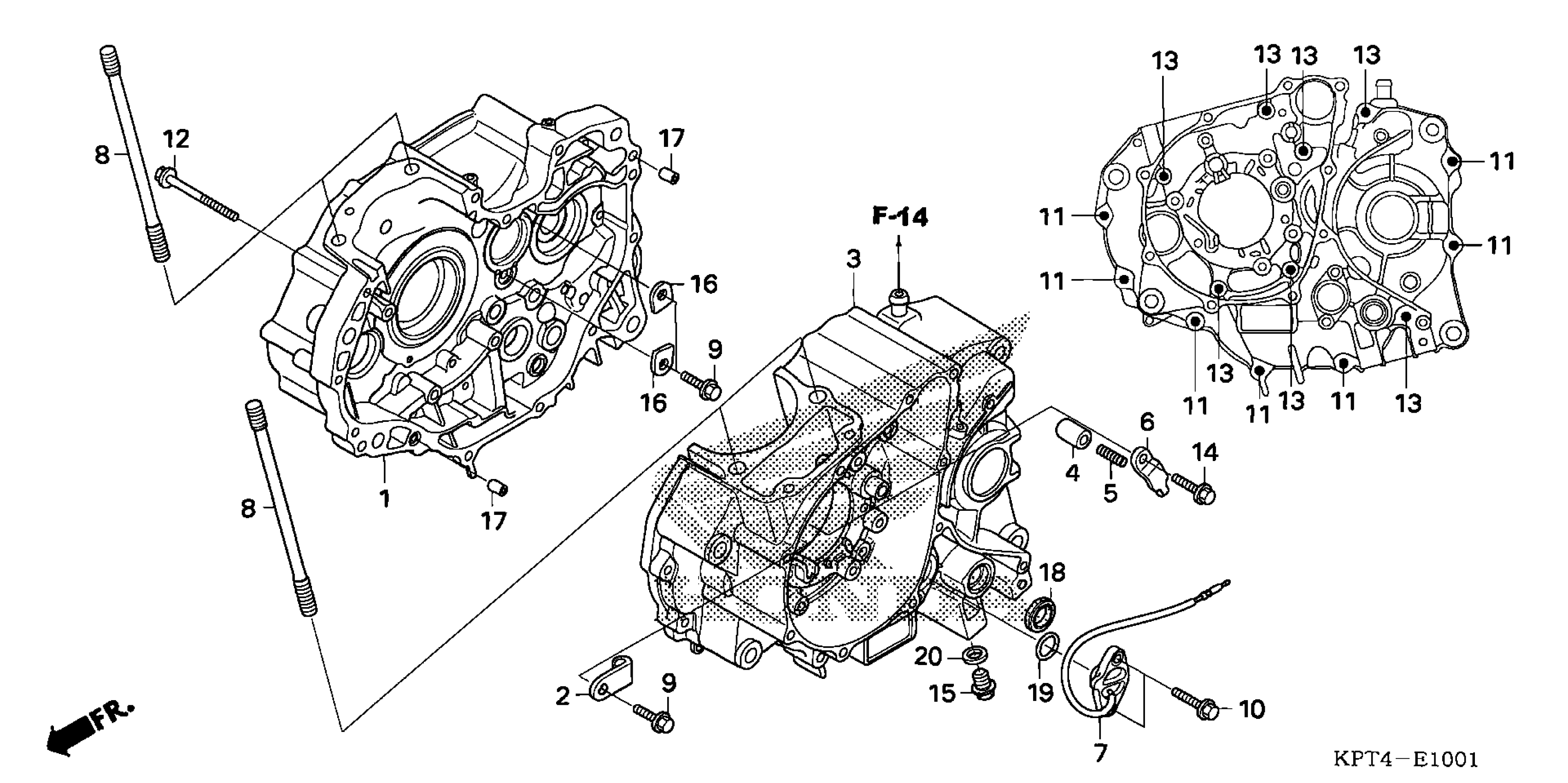

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 CRANKCASE (2) Diagram

CRANKCASE, R. This part replaces 11100-KPT-A00.

11100-KRE-B00

$86.48

PLATE, BEARING SETTING

11108-KRM-840

$11.48

PLATE, L. BEARING SETTING

11108-KTT-900

$16.07

CRANKCASE, L. This part replaces 11200-KPT-A00.

11200-KRE-B00

$90.61

CRANKCASE, L.

11200-KRE-B00

$90.61

PLUG, BEARING PUSH

11215-KRM-840

$2.10

SPRING, BEARING PUSH

11216-KRM-840

$0.75

PLATE, BEARING PUSH

11217-KRM-840

$10.46

CONTACT ASSY., NEUTRAL SWITCH

35759-KPT-A01

$18.05

BOLT, CYLINDER STUD (8X140)

90031-KRM-840

$3.28

BOLT, FLANGE (6X16)

90032-GHR-660

$1.26

BOLT, FLANGE (6X20)

90032-GHR-680

$1.64

BOLT, FLANGE (6X40)

90032-GHR-760

Unavailable

BOLT, FLANGE (6X45)

90032-GHR-770

$3.12

BOLT, FLANGE (6X70)

90032-GHR-820

$12.23

BOLT, FLANGE (6X18)

90040-GHR-670

$1.00

BOLT, DRAIN PLUG (12MM)

90131-KRM-840

$1.55

PLATE, BEARING HOLDER

90441-KRM-840

$0.55

PIN, DOWEL (8X14)

90702-KRM-840

$0.61

OIL SEAL (14X22X5) (ARAI) This part replaces 91203-KRM-841.

91203-KSP-911

$1.81

O-RING (19.4X2.3)

91305-KPH-900

$1.30

WASHER, DRAIN PLUG (12MM)

90401-KRM-R20

$5.75
