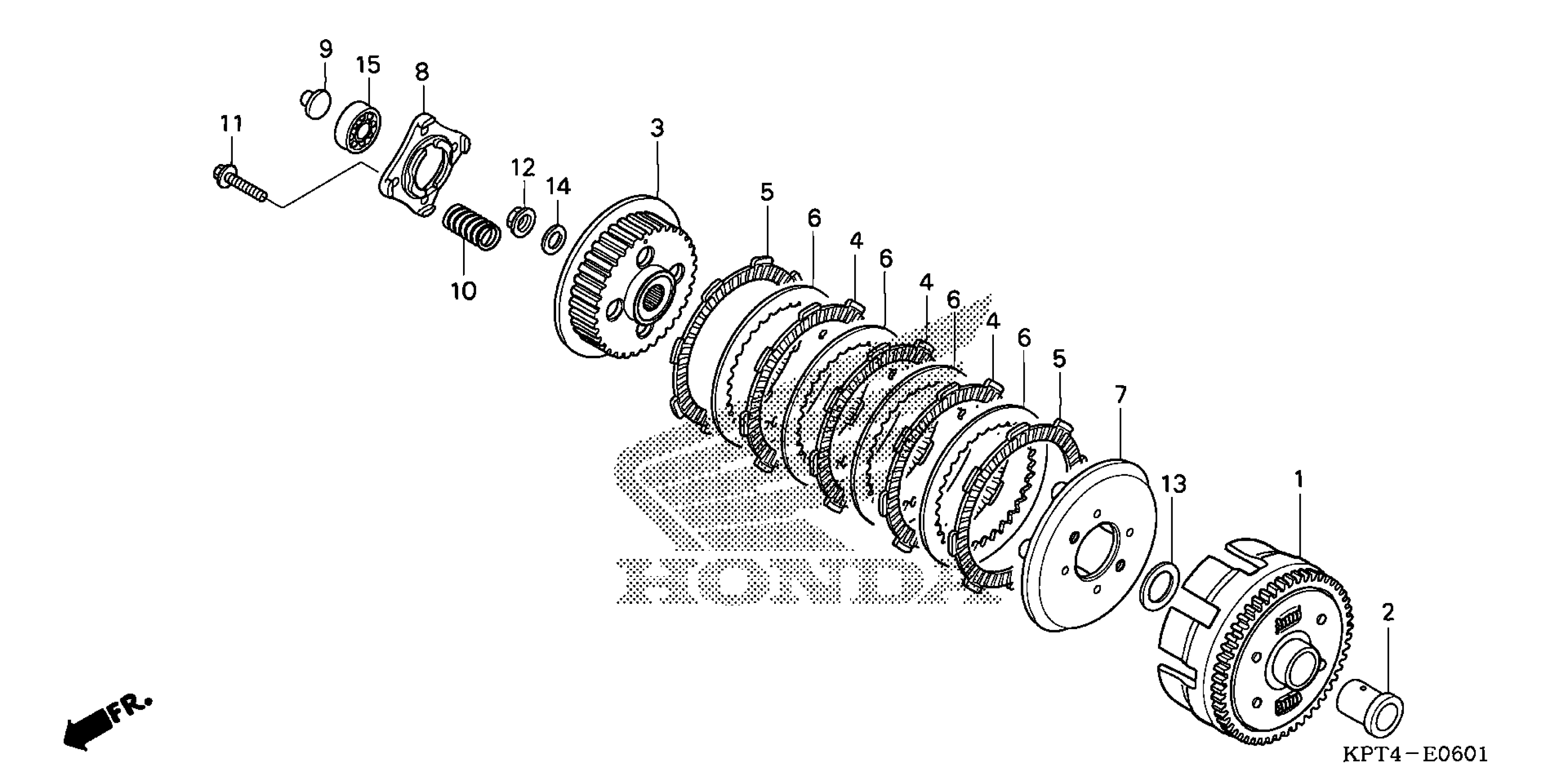

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 CLUTCH (2) Diagram

CLUTCH OUTER

22100-KRM-852

$120.12

GUIDE, CLUTCH (OUTER)

22115-KRM-840

$8.36

CENTER, CLUTCH

22120-KRM-840

$28.30

DISK, CLUTCH FRICTION (4X8X45)

22201-KPM-850

$11.59

DISK, CLUTCH FRICTION

22201-MR8-000

$13.29

PLATE, CLUTCH

22321-KPS-900

$4.66

PLATE, CLUTCH PRESSURE

22355-KRM-840

$16.10

PLATE, CLUTCH LIFTER

22361-KPK-900

$32.35

ROD, CLUTCH LIFTER

22366-KRM-840

$2.80

SPRING, CLUTCH

22401-KRM-840

$4.28

BOLT, FLANGE (6X25)

90008-KRM-840

$0.75

BOLT, SPECIAL FLANGE (6X25)

90050-KFL-850

$0.93

NUT, SPECIAL FLANGE (14MM)

90202-KRM-840

$0.74

WASHER, PLAIN (17MM)

90401-KRM-B10

$3.33

WASHER, PLAIN (17MM) This part replaces 90401-KVS-740.

90401-KRM-B10

$3.33

WASHER (14.1X29X2.8)

90501-KPT-A00

$2.78

BEARING, RADIAL BALL (6003)

91013-KRM-840

$10.84
