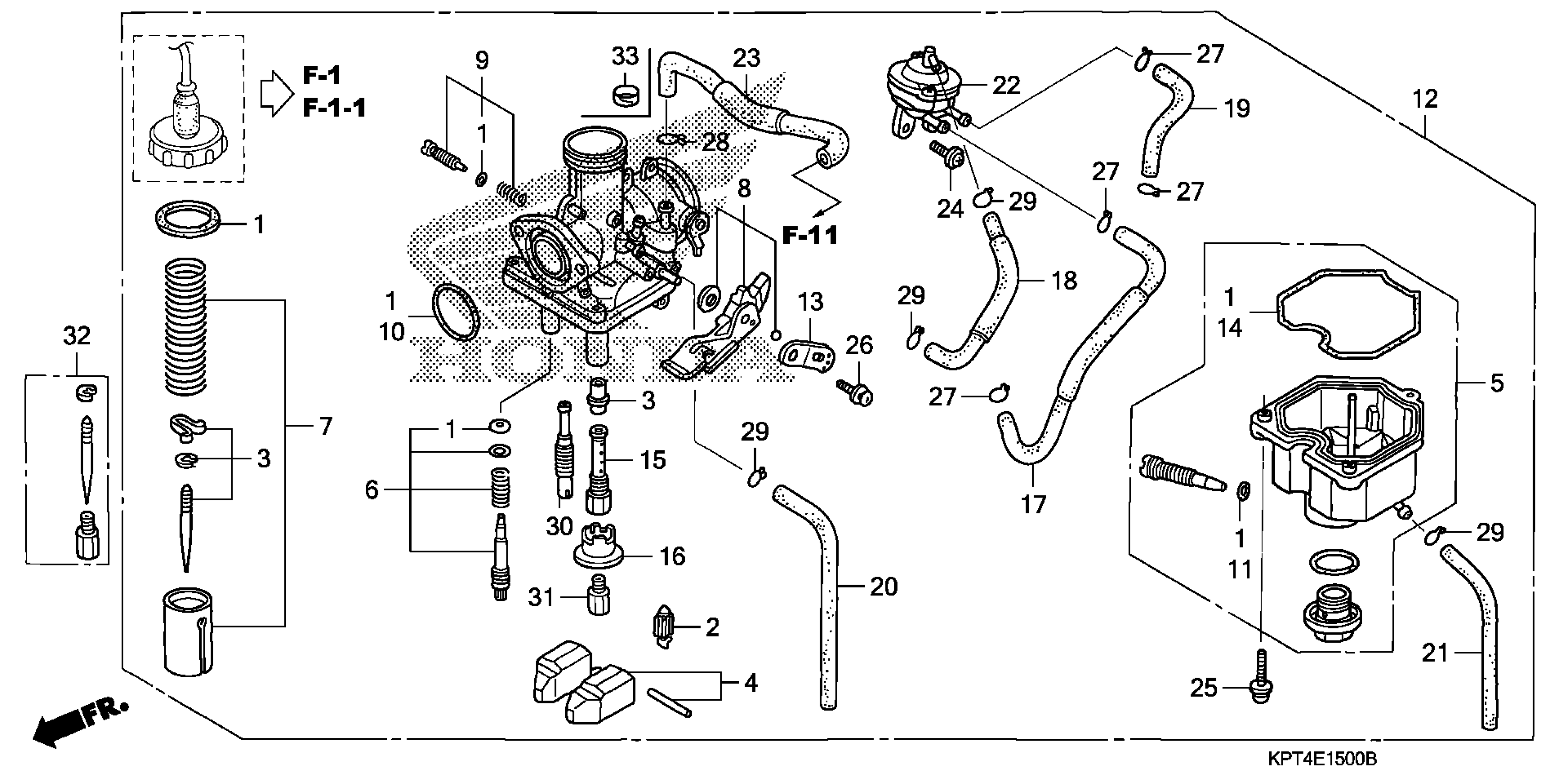

Honda CRF150FA (09) MOTORCYCLE, BRA, VIN# 9C2KE020-9R000001 TO 9C2KE020-9R199999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-KCN-751

$11.00

2

VALVE SET, FLOAT

16011-KPS-921

$49.96

3

NEEDLE SET, JET

16012-KPT-A01

$29.97

4

FLOAT SET

16013-KN4-A10

$31.14

5

CHAMBER SET, FLOAT

16015-KPS-901

$107.32

6

SCREW SET A

16016-KSJ-A01

$16.54

7

VALVE SET, THROTTLE

16022-KPT-A21

$41.20

8

LEVER SET,CHOKE This part replaces 16025-KCN-751.

16025-KCH-671

$34.87

9

SCREW SET B

16028-KEB-G01

$10.71

9

SCREW SET B This part replaces 16028-KEH-900.

16028-KEB-G01

$10.71

10

O-RING (2.4X29)

16075-GHB-B70

$7.28

11

O-RING (1.3X4.3)

16075-GHB-640

$2.65

12

CARBURETOR ASSY. (PDD6F B) This part replaces 16100-KPT-A21.

16100-KPT-A22

$413.96

12

CARBURETOR ASSY. (PDD6F B)

16100-KPT-A22

$413.96

13

PLATE, STAY

16119-440-004

$8.88

14

GASKET, FLOAT CHAMBER

16163-KCS-920

$10.69

15

HOLDER, NEEDLE JET This part replaces 16165-KEG-961.

16165-KPS-841

$22.68

16

HOLDER, JET

16168-382-014

$8.03

17

TUBE

16196-KPT-A01

$5.50

18

TUBE

16197-KEH-900

$2.22

19

TUBE

16198-KEH-900

$2.22

20

TUBE, AIR VENT

16198-KPS-901

$5.81

21

TUBE

16199-KPS-901

$5.47

22

VALVE ASSY., AIR CUT

16510-KPT-A01

$91.86

23

TUBE ASSY., FUEL

17680-KPT-A20

$11.74

24

SCREW-WASHER (4X12)

93892-04012-08

$0.58

24

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.58

25

SCREW-WASHER (4X16)

93892-04016-08

$0.67

25

SCREW-WASHER (4X16) This part replaces 93892-04016-18.

93892-04016-08

$0.67

26

SCREW-WASHER (5X12)

93892-05012-08

$1.04

26

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.04

27

CLIP, TUBE (B1 8)

95002-02089

Unavailable

29

CLIP, TUBE (B6.5)

95002-02659

$1.00

30

JET, SLOW (#40)

99103-KPT-0400

$9.44

31

JET, MAIN (#95)

99113-GHB-0950

$8.70

31

JET, MAIN (#90) | (Optional).

99113-GHB-0900

$8.70

33

CLAMP, TUBE

90641-KPT-A21

$1.72
