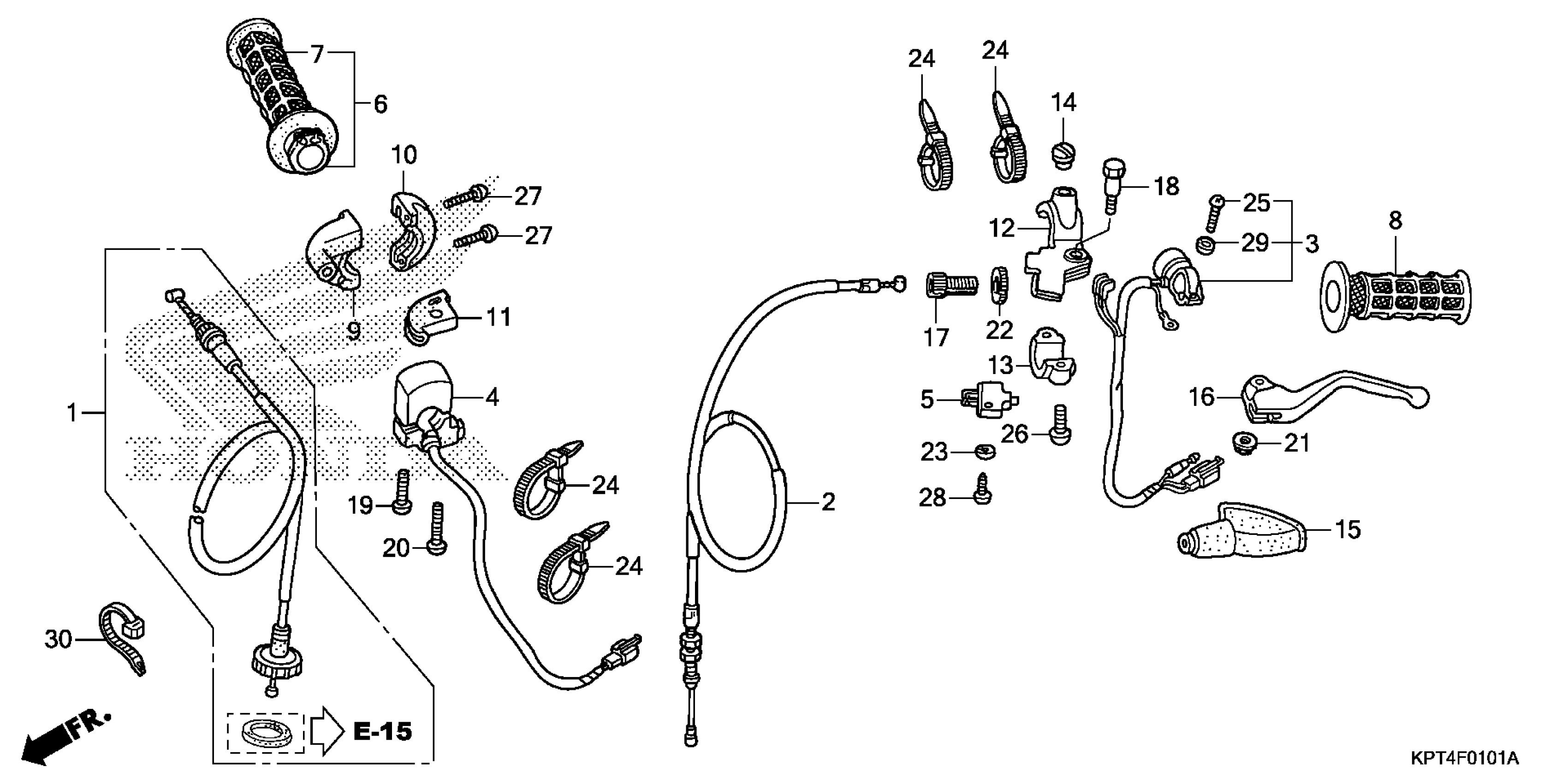

Honda CRF150FA (08) MOTORCYCLE, BRA, VIN# 9C2KE020-8R000001 TO 9C2KE020-8R199999 SWITCH + CABLE (2) Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-KPT-305

$38.73

2

CABLE, CLUTCH

22870-KPT-A00

$24.50

3

SWITCH ASSY., ENGINE STOP This part replaces 35130-KPS-900.

35130-KPS-901

$25.85

3

SWITCH ASSY., ENGINE STOP

35130-KPS-901

$25.85

4

SWITCH ASSY., STARTER

35150-KPS-900

$39.15

5

SWITCH ASSY., CLUTCH

35330-MK5-003

$15.95

6

GRIP ASSY., THROTTLE (COO) This part replaces 53140-KPT-A20.

53140-KPT-305

$11.77

6

GRIP ASSY., THROTTLE (COO)

53140-KPT-305

$11.77

7

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$9.22

7

GRIP, R. HANDLE (COO)

53165-KPT-305

$9.22

8

GRIP, L. HANDLE (COO) This part replaces 53166-GBF-J60.

53166-KPT-305

$9.22

8

GRIP, L. HANDLE (COO)

53166-KPT-305

$9.22

9

HOUSING, THROTTLE (UPPER)

53167-KPT-901

$25.46

10

HOUSING, THROTTLE (LOWER)

53168-KPT-901

$7.37

11

SLIDER, THROTTLE

53169-HB7-010

$12.07

12

BRACKET, L. HANDLE LEVER

53172-KPS-900

$11.76

13

HOLDER, L. LEVER BRACKET

53174-KPS-900

$2.80

14

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.26

15

COVER, L. HANDLE LEVER

53177-KPS-730

$1.32

16

LEVER, L. HANDLEBAR (COO) This part replaces 53178-KPS-900.

53178-KPT-305

$8.87

16

LEVER, L. HANDLEBAR (COO)

53178-KPT-305

$8.87

17

BOLT, WIRE ADJUSTING

53192-KRM-860

$1.68

18

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.41

19

SCREW, PAN (4X32)

90120-KPS-900

$0.87

20

SCREW, PAN (4X45)

90121-KPS-900

$1.71

21

NUT, FLANGE (6MM) This part replaces 90208-GHR-630.

94050-06000

$0.59

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

NUT, FIXING

90321-315-670

$6.80

23

WASHER, SPRING (3MM)

90520-KPS-900

$0.59

24

BAND, WIRE

90650-KW3-000

$4.16

25

SCREW, PAN (4X12)

93500-04012-0A

$0.75

25

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.75

26

SCREW, PAN (5X16)

93500-05016-0A

$0.83

27

SCREW, PAN (5X16)

93500-05016-0G

$0.83

28

SCREW, TAPPING (3X12)

90105-GHR-J40

$1.88

29

WASHER, SPRING (4MM)

94111-04000

$0.97

30

BAND, WIRE HARNESS

90620-SB2-003

$23.54
