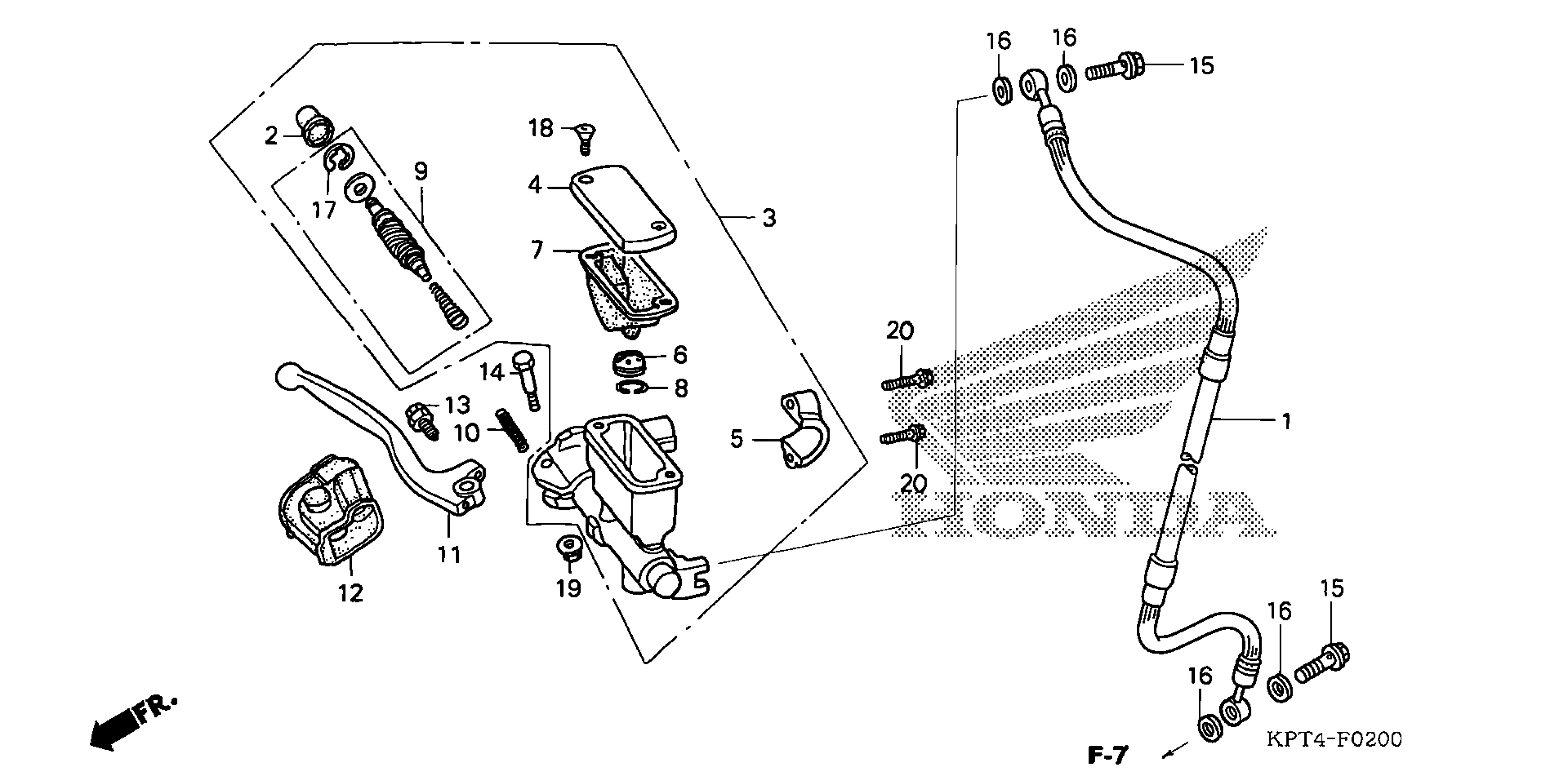

Honda CRF150FA (08) MOTORCYCLE, BRA, VIN# 9C2KE020-8R000001 TO 9C2KE020-8R199999 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-KPT-901

$58.15

BOOT

45504-KN5-006

$11.31

MASTER CYLINDER SET, FR. (COO) This part replaces 45510-KPS-901.

45510-KPT-305

$142.69

MASTER CYLINDER SET, FR. (COO)

45510-KPT-305

$142.69

CAP, MASTER CYLINDER

45513-KCE-671

$23.01

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

SEPARATOR

45518-KA3-731

$12.17

DIAPHRAGM

45520-KA3-731

$13.57

RING

45523-KA3-731

$2.92

MASTER CYLINDER SET

45530-KPS-901

$115.13

SPRING, BRAKE LEVER

53174-KN5-006

$2.97

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KCE-670.

53175-KPT-305

$16.70

LEVER, R. HANDLEBAR (COO)

53175-KPT-305

$16.70

COVER, R. HANDLE LEVER

53176-ML3-791

$6.78

BOLT SET, ADJUSTER

90111-ML3-791

$6.60

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.51

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X22)

90040-GHR-690

$1.49
