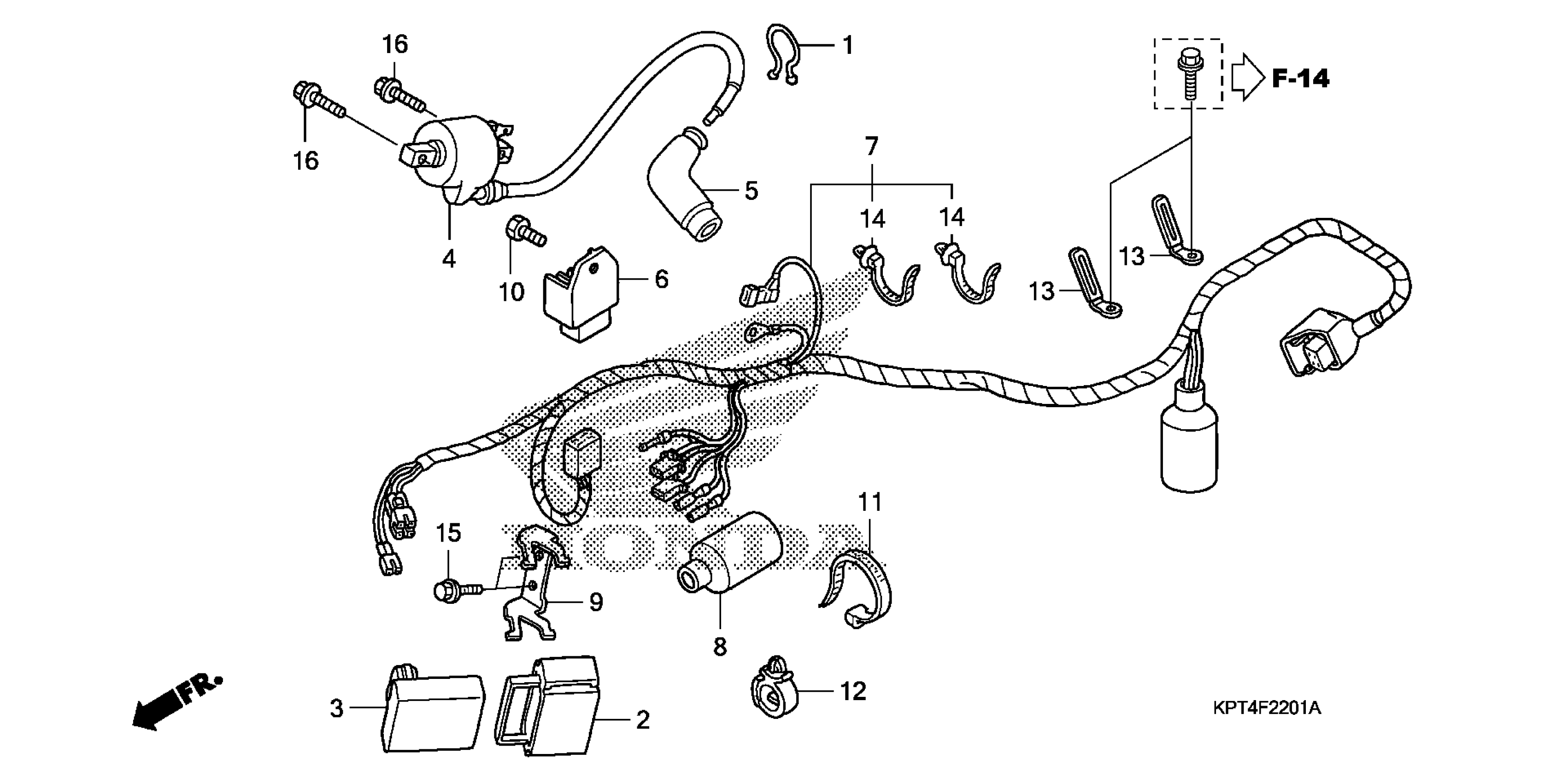

Honda CRF150FA (07) MOTORCYCLE, BRA, VIN# 9C2KE020-7R000001 TO 9C2KE020-7R099999 WIRE HARNESS (2) Diagram

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.10

CLAMP, FUEL HOSE (18.5MM)

90602-SA7-931

$11.06

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KPT-A01

$28.26

MODULE, IGNITION CONTROL (CDI)

30410-KPT-A01

$265.93

COIL ASSY., IGNITION

30500-KPT-A01

$52.43

CAP ASSY. This part replaces 30700-KN4-A60.

30700-KN4-A61

$23.93

RECTIFIER, REGULATE This part replaces 31600-GAG-K20.

31600-GAG-K21

$98.66

RECTIFIER, REGULATE

31600-GAG-K21

$98.66

WIRE HARNESS This part replaces 32100-KPT-A00.

32100-KPT-A01

Unavailable

WIRE HARNESS

32100-KPT-A01

Unavailable

COVER, WIRE HARNESS CONNECTOR

32108-080-000

$5.62

STAY, C.D.I.

50301-KPT-A00

$1.32

BOLT, HEX. (6X10)

90124-KPS-900

Unavailable

BAND, WIRE HARNESS

90620-SB2-003

$25.84

CLIP, HARNESS

90684-ZA0-601

$2.80

CLIP, WIRE HARNESS

91404-VM6-000

$6.35

BAND, WIRE HARNESS (123.5MM) (BLUE)

91547-SF4-003

$7.60

BOLT, FLANGE (6X8)

96001-06008-00

$0.94

BOLT, FLANGE (6X18)

96001-06018-00

$1.79
