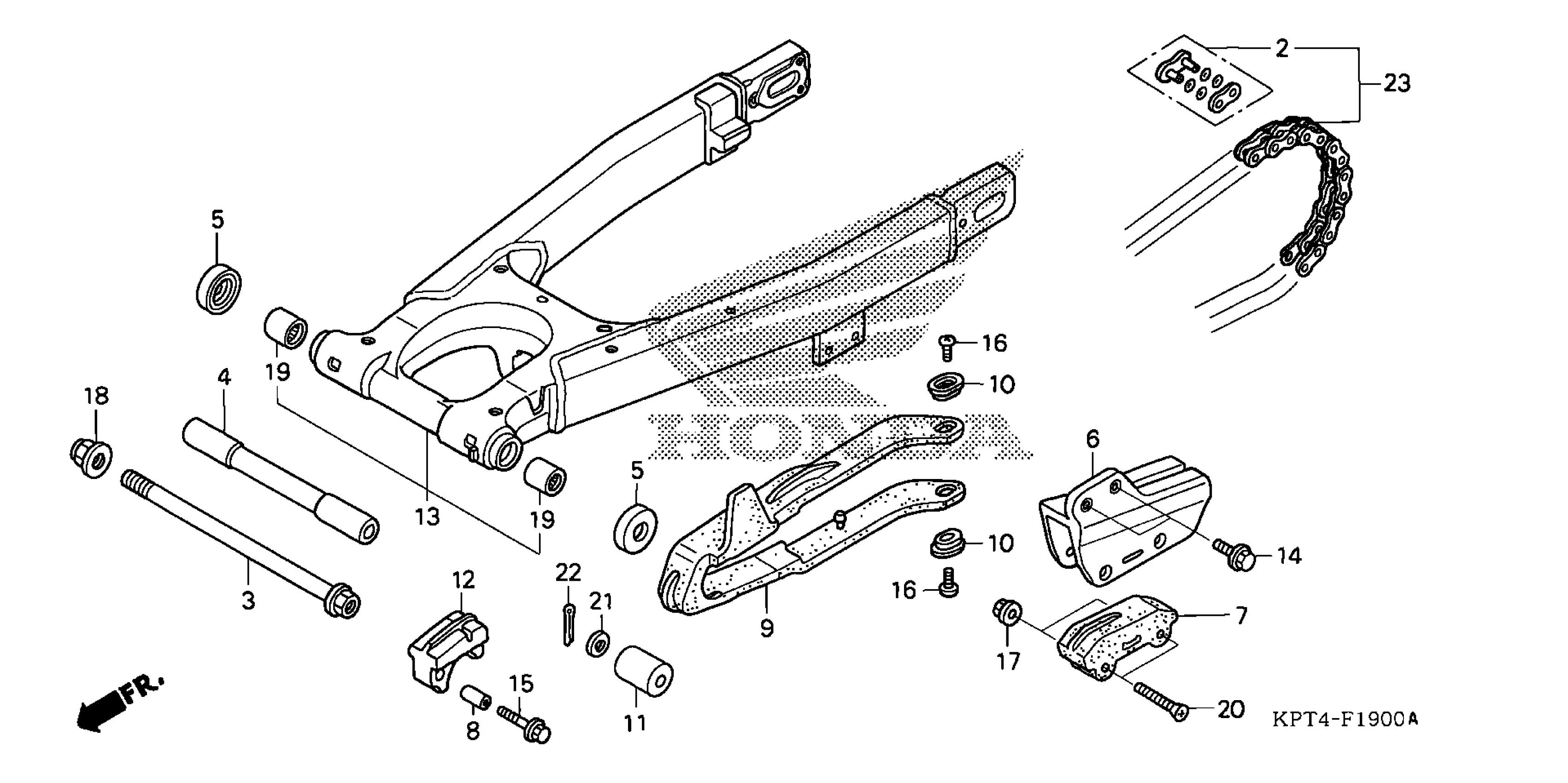

Honda CRF150FA (07) MOTORCYCLE, BRA, VIN# 9C2KE020-7R000001 TO 9C2KE020-7R099999 SWINGARM Diagram

MASTER LINK SET (SEAL TYPE) (DAIDO)

40535-KCR-305

$7.16

MASTER LINK SET (SEAL TYPE) (RK EXCEL)

40535-KCR-306

$8.16

BOLT, SWINGARM PIVOT

52101-KPS-900

$38.28

COLLAR, SWINGARM PIVOT CENTER DISTANCE

52141-KPS-900

$40.67

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

GUIDE, CHAIN

52146-KPS-900

$45.49

SLIDER, CHAIN GUIDE

52147-MN1-670

$13.97

COLLAR, CHAIN SLIPPER

52159-KPE-900

$1.49

SLIDER, CHAIN

52170-KPT-A00

$64.20

WASHER, CHAIN SLIDER This part replaces 52171-KPS-900.

52171-KR6-000

$2.57

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

ROLLER, CHAIN (UPPER)

52175-KPS-900

$8.89

SLIDER, CHAIN (LOWER)

52185-KPS-900

$25.53

SWINGARM SUB-ASSY., RR.

52200-KPT-900

$260.46

BOLT, FLANGE (6X16)

90103-MY6-670

$3.72

BOLT, FLANGE (6X28)

90106-KPS-900

$1.49

SCREW, PAN (5X8)

90115-KPS-900

$1.49

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

NUT, U (14MM)

90305-GE8-003

$3.86

BEARING, NEEDLE (20X26X20)

91070-KPE-901

$9.94

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

WASHER, PLAIN (8MM)

94102-08700

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

CHAIN, DRIVE (DID520V6-120ZB) (DAIDO) (STANDARD LINK 104L) This part replaces 06405-KCR-P00.

40540-KCR-305

$208.41

CHAIN SET, DRIVE (RK520 112L-120L) (RK EXCEL) (STANDARD LINK 104L) (NOT AVAILABLE)

06405-KCR-P10

Unavailable

CHAIN, DRIVE (DID520V6-120ZB) (DAIDO) (STANDARD LINK 104L)

40540-KCR-305

$208.41
