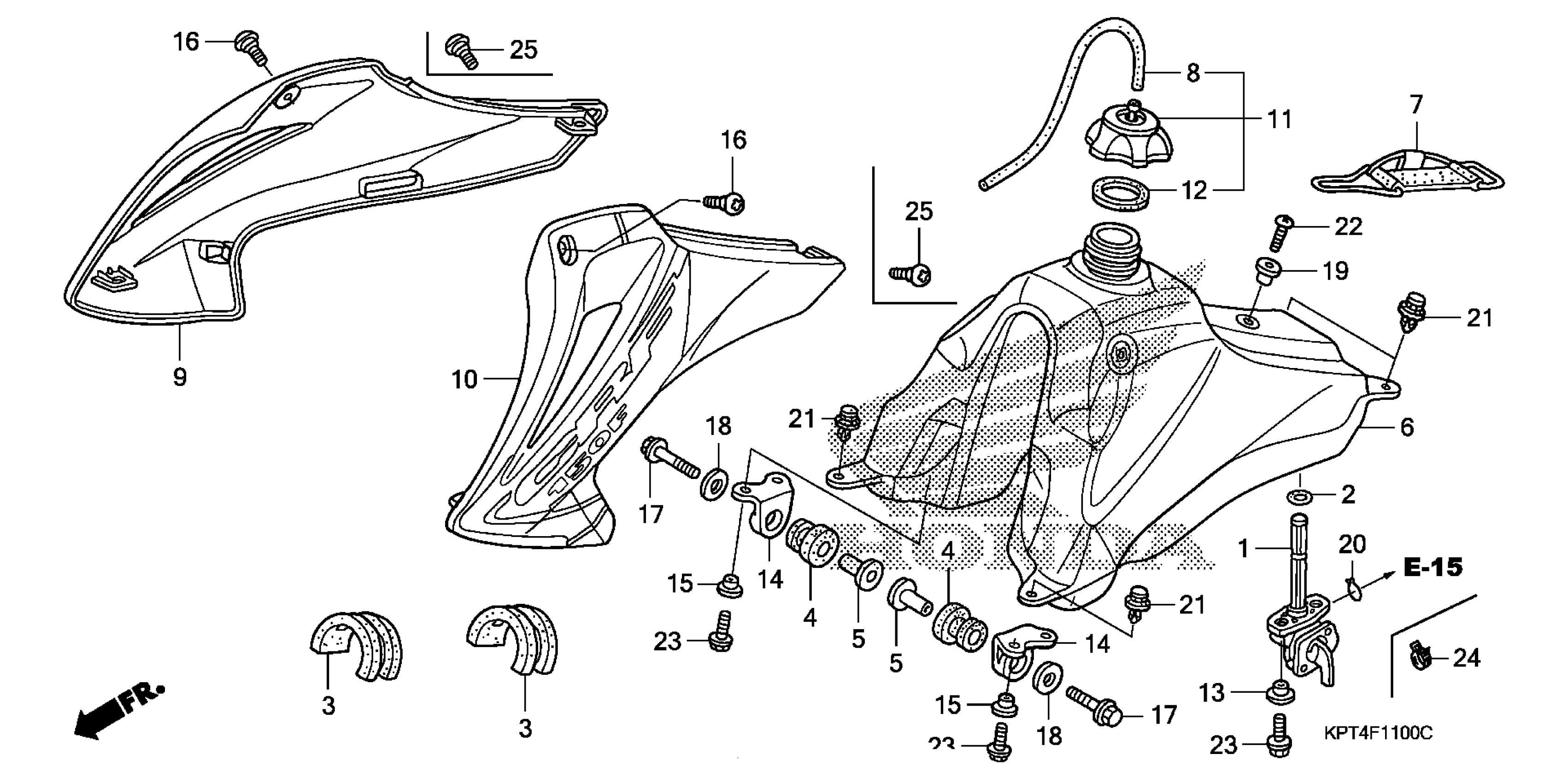

Honda CRF150FA (07) MOTORCYCLE, BRA, VIN# 9C2KE020-7R000001 TO 9C2KE020-7R099999 FUEL TANK Diagram

PETCOCK ASSY.

16950-GCF-671

$74.07

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17506-KPS-900

$4.02

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

COLLAR, TANK SETTING

17509-KPS-900

$10.28

TANK, FUEL

17510-KPS-760

Unavailable

BAND, RR. TANK

17516-KPS-900

$15.38

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

SHROUD SET, R. TANK (TYPE1) (WL) | Extreme red R292R;

17545-KPT-A10ZA

Unavailable

SHROUD SET, L. TANK (TYPE1) (WL) | Extreme red R292R;

17555-KPT-A10ZA

Unavailable

CAP ASSY., FUEL TANK

17620-GEL-770

$31.45

GASKET, FUEL CAP

17624-GEL-770

$4.58

COLLAR, TANK SETTING

17626-KPS-900

$1.49

BRACKET, FR. FUEL TANK

17634-KPS-900

$2.25

COLLAR

84706-415-000

$2.23

SCREW A, COWL SETTING

90103-KV3-830

$2.92

BOLT, FLANGE (6X40)

90137-KA3-830

$2.90

WASHER, TANK CUSHION

90503-898-000

$2.39

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

CLIP, TUBE (B10)

90651-KPS-900

$1.49

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

SCREW, PAN (6X18)

93500-06018-0A

$1.49

BOLT, FLANGE (6X16)

90040-GHR-660

$1.89
