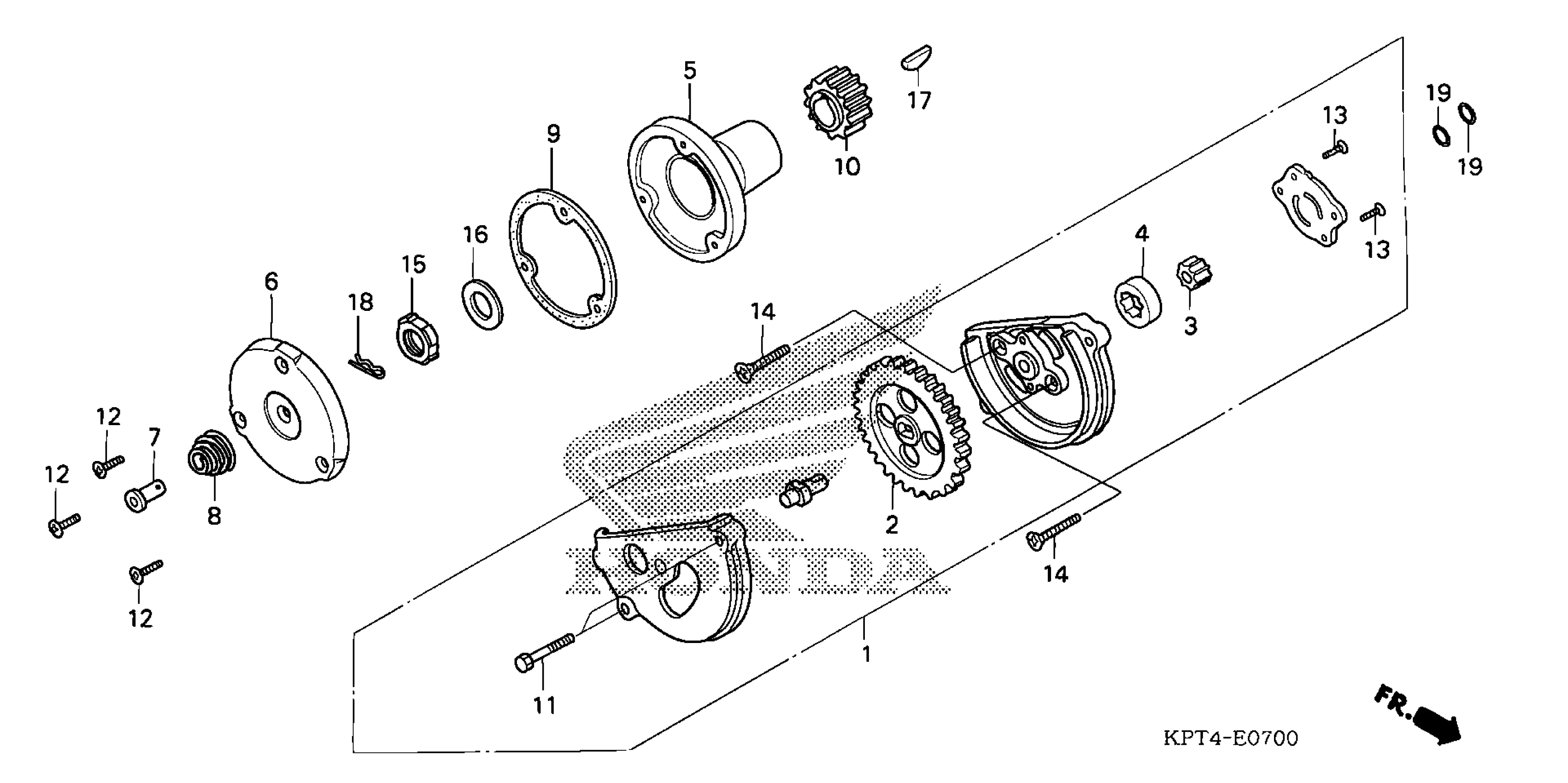

Honda CRF150FA (05) MOTORCYCLE, BRA, VIN# 9C2KE010-5R000001 TO 9C2KE010-5R099999 OIL PUMP (1) Diagram

#

Description
Price

1

PUMP ASSY., OIL This part replaces 15100-KPT-900.

15100-KGA-900

Unavailable

2

GEAR, OIL PUMP DRIVE (31T)

15131-KPT-900

$30.11

3

ROTOR, OIL PUMP (INNER)

15331-KPS-900

$2.67

4

ROTOR, OIL PUMP (OUTER)

15332-KPS-900

$3.44

5

ROTOR, OIL FILTER

15430-KPS-900

$9.30

6

CAP, OIL FILTER ROTOR This part replaces 15436-KPS-900.

15436-KRM-840

$7.23

6

CAP, OIL FILTER ROTOR

15436-KRM-840

$7.23

7

THROUGH, OIL This part replaces 15441-KPS-900.

15441-KCS-650

$6.77

8

SPRING, OIL THROUGH This part replaces 15446-KPS-900.

15446-107-000

$4.11

8

SPRING, OIL THROUGH

15446-107-000

$4.11

9

GSKT, OIL FILTER CAP This part replaces 15459-KT0-710.

15459-K70-630

$3.56

9

GSKT, OIL FILTER CAP This part replaces 15459-KWK-900.

15459-K70-630

$3.56

10

GEAR A, PRIMARY DRIVE (18T) This part replaces 23121-KPT-900.

23121-KW1-900

Unavailable

11

BOLT, HEX. (5X20)

90010-KPS-900

$1.49

11

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

12

SCREW, OVAL (5X12)

90112-KPS-900

$1.49

13

SCREW, FLAT (4X12)

90211-KPS-900

$1.49

13

SCREW, FLAT (4X12)

93600-04012-0A

$1.49

14

SCREW, FLAT (6X30)

90213-KPS-900

$1.72

15

NUT, LOCK (16MM) This part replaces 90231-KPS-900.

90231-KK3-830

$5.29

16

WASHER (16MM)

90434-KPS-900

$2.05

17

KEY, WOODRUFF (25X18)

90471-KGA-900

$3.98

18

PIN, LOCK (8MM)

90751-KPS-900

$1.49

19

O-RING (9.4X2.4) This part replaces 91304-KPS-900.

91304-KK3-830

$2.31
