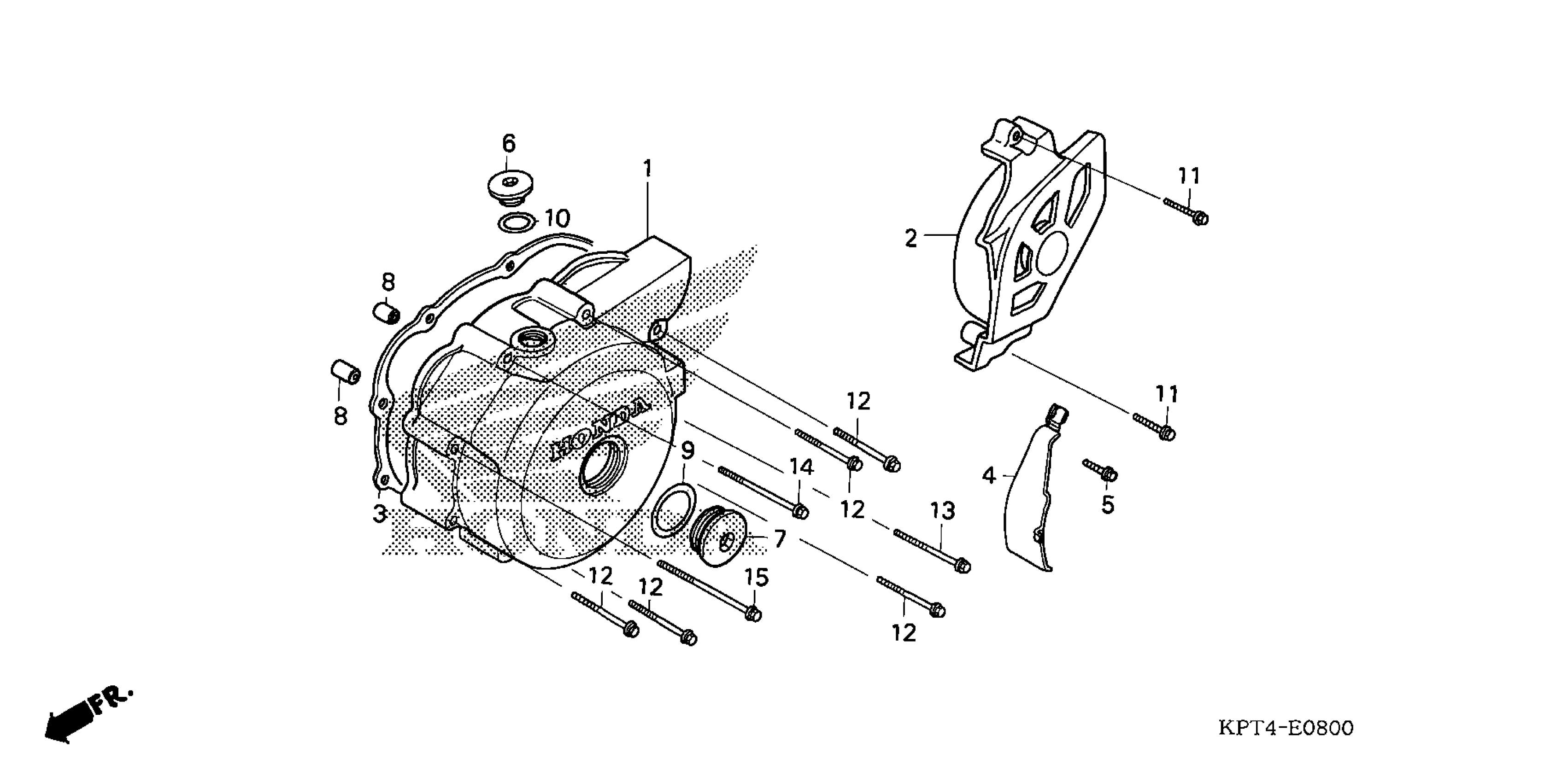

Honda CRF150FA (05) MOTORCYCLE, BRA, VIN# 9C2KE010-5R000001 TO 9C2KE010-5R099999 LEFT CRANKCASE COVER (1) Diagram

COVER, L. CRANKCASE

11341-KPT-900

Unavailable

COVER, L. RR. CRANKCASE

11360-KPT-900

$14.26

GASKET, L. COVER This part replaces 11395-KCN-000.

11395-KCN-020

$12.51

GASKET, L. COVER This part replaces 11395-KCN-010.

11395-KCN-020

$12.51

CLAMP, ALTERNATOR WIRE

32976-KW1-900

$1.85

BOLT, FLANGE (6X14) This part replaces 90001-KPS-900.

90040-GHR-650

$2.50

BOLT, FLANGE (6X14)

90040-GHR-650

$2.50

CAP (14MM)

90084-KPS-900

$1.59

CAP (30MM)

90087-HB5-000

$15.31

CAP (30MM) This part replaces 90087-KPS-900.

90087-HB5-000

$15.31

PIN, DOWEL (10X14)

90703-KPS-900

$1.15

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.60

O-RING (13.8X2.5)

91303-377-000

$3.26

BOLT, FLANGE (6X25)

96001-06025-00

$2.63

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

BOLT, FLANGE (6X60)

96001-06060-00

$2.69

BOLT, FLANGE (6X70)

96001-06070-00

$1.81
