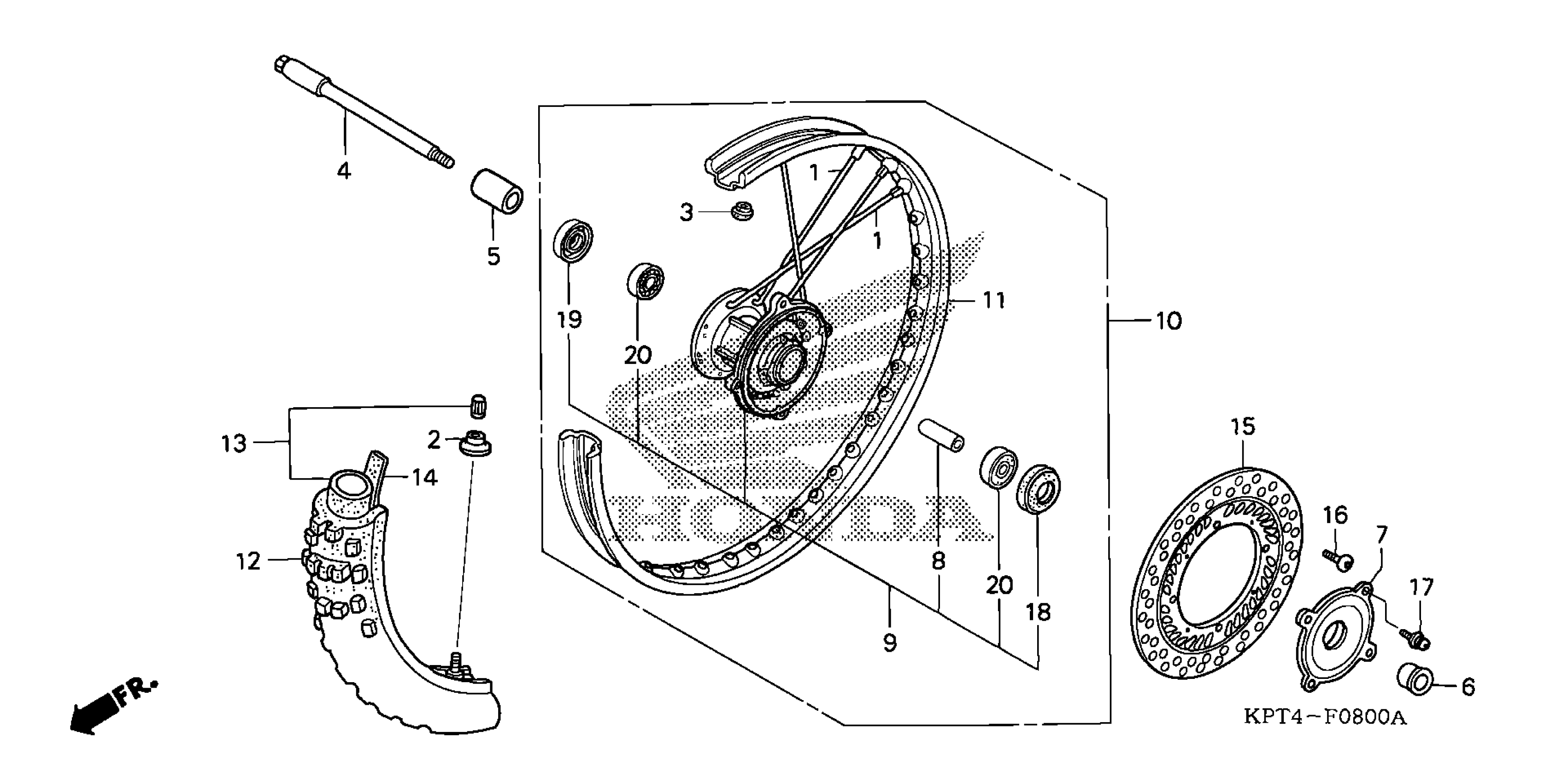

Honda CRF150FA (05) MOTORCYCLE, BRA, VIN# 9C2KE010-5R000001 TO 9C2KE010-5R099999 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET, FR. This part replaces 06440-KPT-900.

06440-KPT-A00

$2.98

1

SPOKE SET, FR.

06440-KPT-A00

$2.98

2

CAP, VALVE

42714-KA3-710

$9.39

3

CAP, RIM HOLE

42717-329-000

$3.90

4

AXLE, FR. WHEEL

44301-KPT-900

$27.41

5

COLLAR, FR. WHEEL

44311-KPS-900

$4.83

6

COLLAR, FR. WHEEL

44312-KPS-900

$3.42

7

COVER, FR. HUB

44610-KL3-770

$10.90

8

COLLAR, FR. AXLE DISTANCE

44620-KPS-900

$3.73

9

HUB SUB-ASSY., FR.

44635-KPT-900

$139.51

10

WHEEL SET, FR. (COO) This part replaces 44650-KPT-900.

44650-KPT-305

$487.81

11

RIM, FR. WHEEL This part replaces 44701-KPT-901.

44701-KPT-A02

$212.46

11

RIM, FR. WHEEL This part replaces 44701-KPT-902.

44701-KPT-A02

$212.46

11

RIM, FR. WHEEL

44701-KPT-A02

$212.46

12

TIRE, FR. This part replaces 44711-KPT-901.

44711-KPT-903

$112.96

12

TIRE, FR. This part replaces 44711-KPT-902.

44711-KPT-903

$112.96

13

TUBE, TIRE (70/100-19) (PIRELLI)

44712-KPT-901

$23.27

14

FLAP, TIRE (1.40-19) (PIRELLI)

44713-KPT-900

Unavailable

15

DISK, FR. BRAKE

45351-KPS-900

$119.00

16

BOLT, DISK (6X17)

90105-KAE-870

$2.80

17

SCREW-WASHER (4X8)

90204-KPS-900

$0.70

18

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$4.70

18

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$4.70

19

DUST SEAL (22X50X5) (NOK)

91254-KA3-831

$8.27

20

BEARING, RADIAL BALL (6202U)

96140-62020-10

$9.75

20

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-761.

96140-62020-10

$9.75

20

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-731.

96140-62020-10

$9.75

20

BEARING, RADIAL BALL (6202U) This part replaces 91014-KPS-732.

96140-62020-10

$9.75
