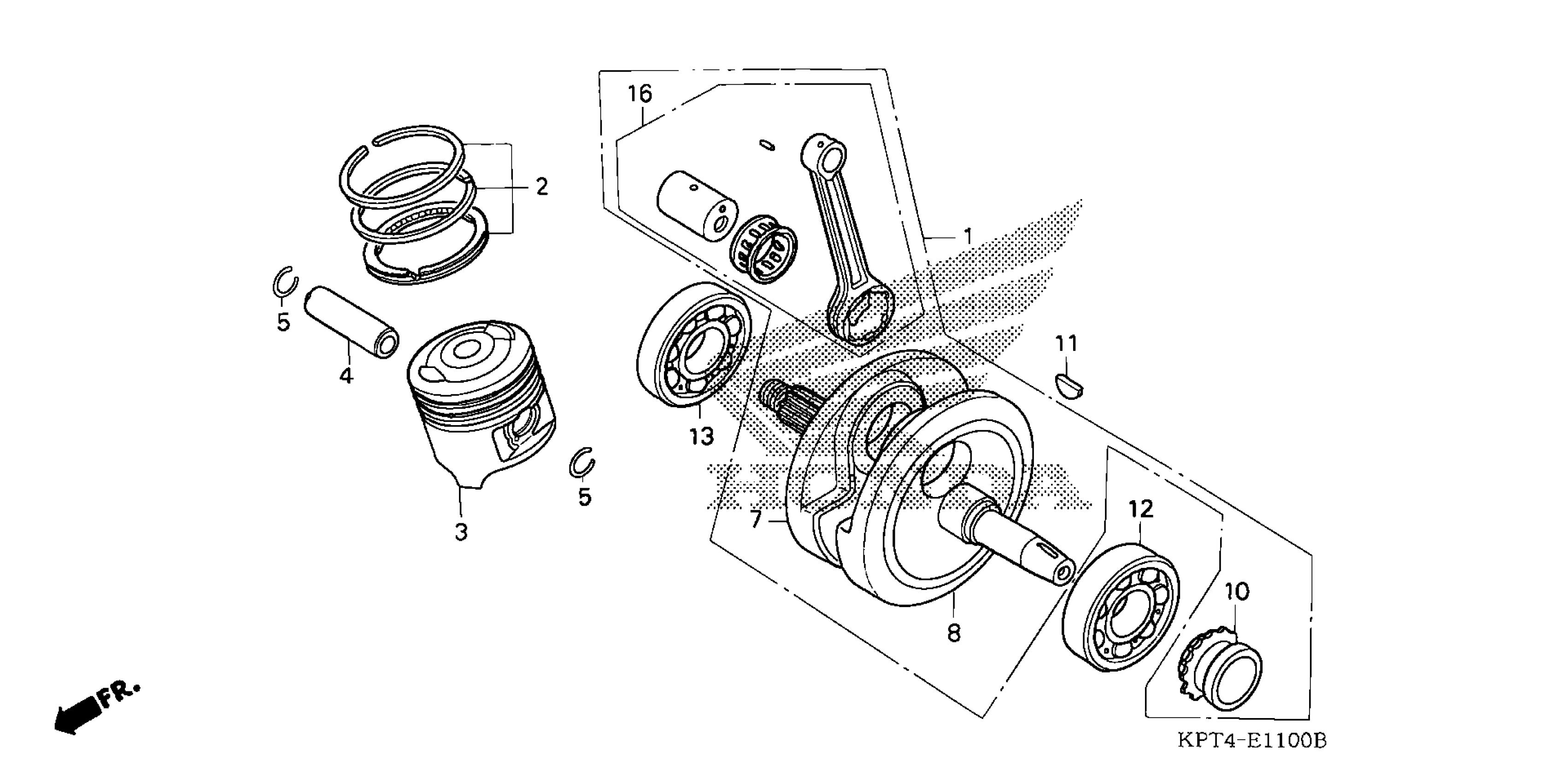

Honda CRF150FA (05) MOTORCYCLE, BRA, VIN# 9C2KE010-5R000001 TO 9C2KE010-5R099999 CRANKSHAFT + PISTON (1) Diagram

CRANKSHAFT

13000-KPT-900

Unavailable

RING SET, PISTON (STD) (RIKEN)

13011-KBB-305

$49.32

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-KBB-305

$53.45

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-KBB-305

$53.45

PISTON (STD)

13101-KEH-900

Unavailable

PISTON (0.25) | (Optional).

13102-KEH-305

Unavailable

PISTON (0.50) | (Optional).

13103-KEH-305

Unavailable

PIN, PISTON

13111-440-000

$21.88

CLIP, PISTON PIN (15MM)

13112-KPS-900

$0.64

CRANKSHAFT, R.

13311-KPT-900

Unavailable

CRANKSHAFT, L.

13321-KPT-900

Unavailable

SPROCKET, TIMING (17T)

14311-KN6-931

$31.68

KEY, WOODRUFF (4MM)

90741-KFB-000

$2.80

BEARING, BALL (6207C3) This part replaces 91001-KBW-941.

91001-HM8-003

$25.00

BEARING, RADIAL BALL (28X72X18) (NTN) This part replaces 91001-KCN-003.

91001-KBR-003

$44.64

ROD KIT, CONNECTING

06381-KPT-900

Unavailable
