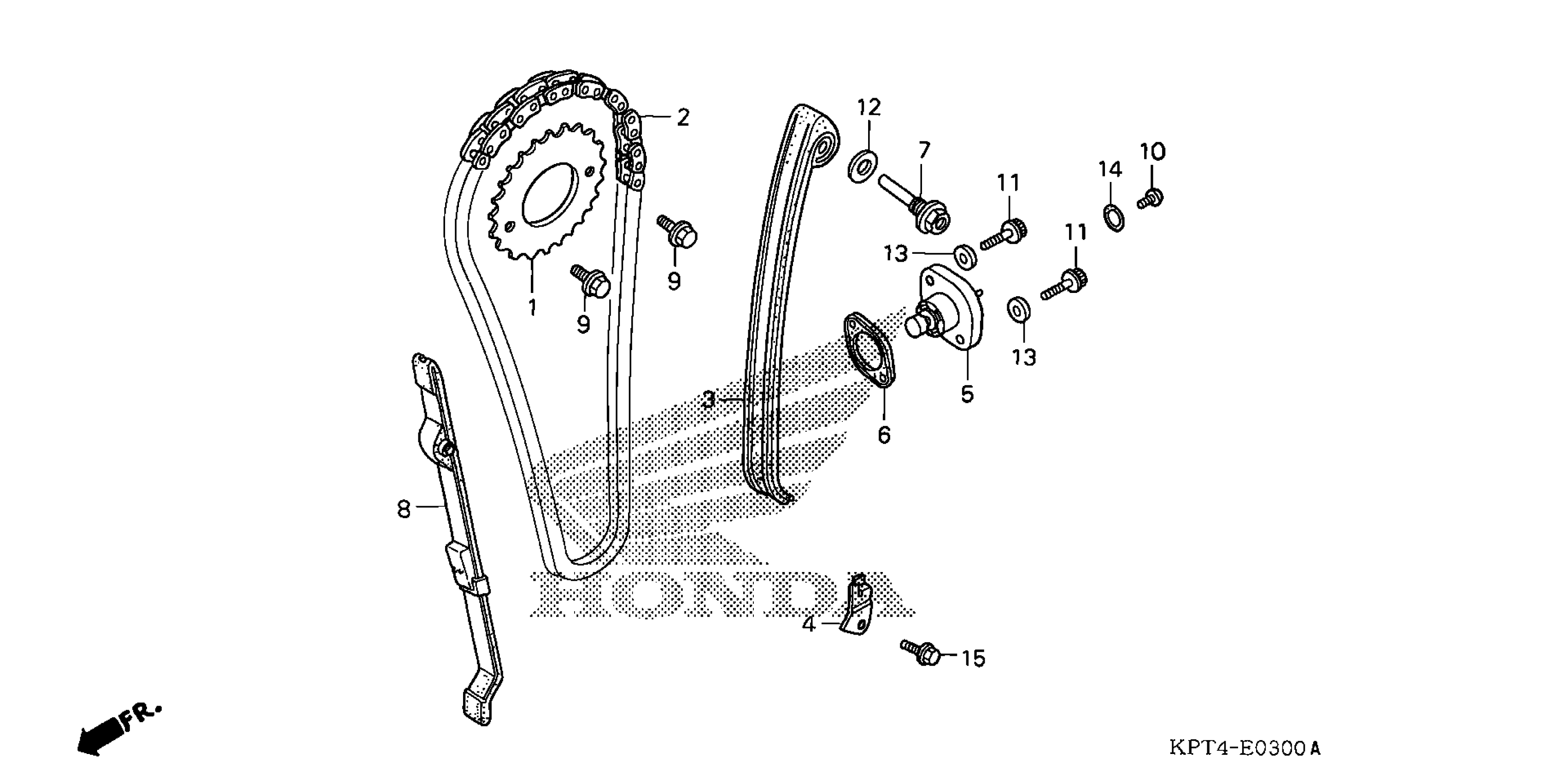

Honda CRF150FA (05) MOTORCYCLE, BRA, VIN# 9C2KE010-5R000001 TO 9C2KE010-5R099999 CAM CHAIN + TENSIONER (1) Diagram

SPROCKET, CAM (34T)

14321-KEH-900

$37.59

CHAIN, CAM (100L) (BORG WARNER)

14401-KEH-901

$63.03

TENSIONER, CAM CHAIN

14500-KW1-900

$83.93

PLATE, CAM CHAIN SETTING

14513-KPS-900

$1.90

LIFTER ASSY., TENSIONER This part replaces 14520-KCT-691.

14520-KCT-692

$79.32

LIFTER ASSY., TENSIONER

14520-KCT-692

$79.32

GASKET, TENSIONER LIFTER

14523-KBB-901

$10.40

BOLT, CAM CHAIN TENSIONER PIVOT This part replaces 14535-KPS-900.

14535-437-000

$6.30

BOLT, CAM CHAIN TENSIONER PIVOT

14535-437-000

$6.30

GUIDE, CAM CHAIN

14550-KCT-690

Unavailable

BOLT, FLANGE (6X10) This part replaces 90002-KPS-900.

90002-KW1-900

$2.51

BOLT, FLANGE (6X10)

90002-KW1-900

$2.51

SCREW, PAN (6X6)

90005-KY7-000

$3.24

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

WASHER C (8MM)

90475-703-000

$1.49

WASHER, SEALING (6MM)

90488-425-000

$2.28

O-RING (1.5X9.5)

91306-MG3-000

$2.33

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.33

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
