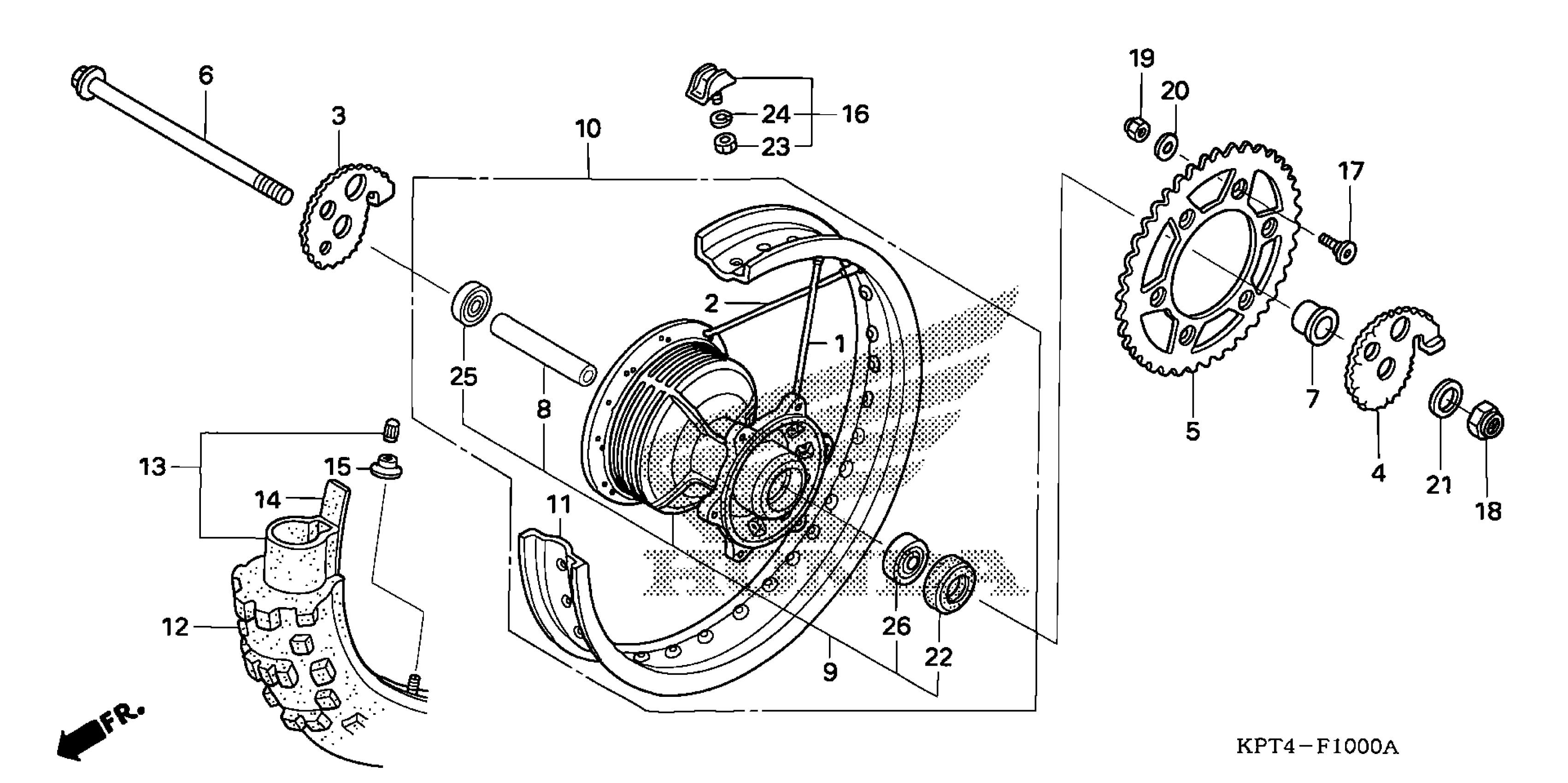

Honda CRF150FA (04) MOTORCYCLE, BRA, VIN# 9C2KE010-4R000001 TO 9C2KE010-4R999999 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET A, RR. (L. SIDE) This part replaces 06420-KPT-900.

06420-KPT-A00

$3.46

2

SPOKE SET B, RR. (R. SIDE) This part replaces 06421-KPT-900.

06421-KPT-A00

$3.34

2

SPOKE SET B, RR. (R. SIDE)

06421-KPT-A00

$3.34

3

ADJUSTER, R. CHAIN This part replaces 40544-KPS-900.

40544-KPS-730

$10.18

3

ADJUSTER, R. CHAIN

40544-KPS-730

$10.18

4

ADJUSTER, L. CHAIN This part replaces 40545-KPS-900.

40545-KPS-730

$10.18

4

ADJUSTER, L. CHAIN

40545-KPS-730

$10.18

5

SPROCKET, FINAL DRIVEN (48T)

41201-KPT-900

Unavailable

6

AXLE, RR. WHEEL

42301-KPS-900

$25.38

7

COLLAR, RR. WHEEL

42312-KPS-900

$8.18

8

COLLAR, RR. AXLE DISTANCE

42620-KPS-900

$16.77

9

HUB SUB-ASSY., RR. This part replaces 42635-KPT-900.

42635-KPT-A00

$271.36

9

HUB SUB-ASSY., RR.

42635-KPT-A00

$271.36

10

WHEEL SET, RR. (COO) This part replaces 42650-KPT-900.

42650-KPT-305

$462.89

10

WHEEL SET, RR. (COO) This part replaces 42650-KPT-901.

42650-KPT-305

$462.89

10

WHEEL SET, RR. (COO) This part replaces 42650-KPT-A01.

42650-KPT-305

$462.89

10

WHEEL SET, RR. (COO)

42650-KPT-305

$462.89

11

RIM, RR. WHEEL This part replaces 42701-KPT-901.

42701-KPT-902

$213.66

11

RIM, RR. WHEEL

42701-KPT-902

$213.66

12

TIRE, RR. (90/100-16 NHS 51M) (PIRELLI) This part replaces 42711-KPT-901.

42711-KPT-902

$287.45

12

TIRE, RR. (90/100-16 NHS 51M) (PIRELLI)

42711-KPT-902

$287.45

13

TUBE, TIRE (90/100-16) (PIRELLI) This part replaces 42712-KPT-901.

42712-KPT-910

$52.66

13

TUBE, TIRE (90/100-16) (PIRELLI)

42712-KPT-910

$52.66

14

FLAP, TIRE (1.60-16) (PIRELLI)

42713-KPT-900

$2.84

15

CAP, VALVE

42714-KA3-710

$10.46

16

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

17

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

18

NUT, U (16MM)

90305-GW2-711

$16.36

19

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

20

WASHER (8MM)

90465-MC4-000

$2.51

21

WASHER, RR. AXLE

90559-KPS-900

$1.49

22

OIL SEAL (25X47X6.5)

91253-033-003

$5.94

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, SPRING (8MM)

94111-08000

$1.49

25

BEARING, RADIAL BALL (6203U)

96140-62030-10

$11.91

26

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
