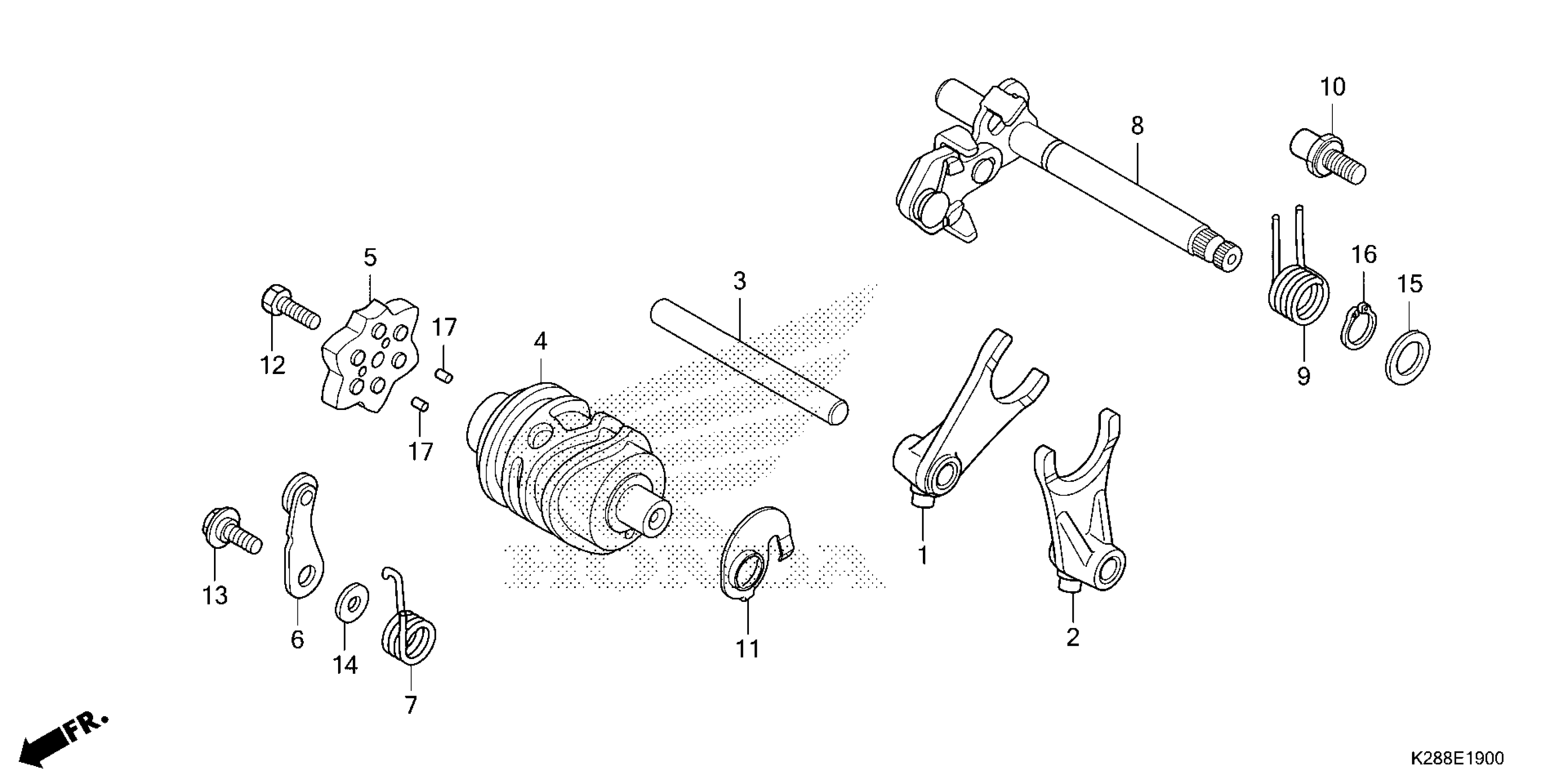

Honda CRF125FBAC (23) MOTORCYCLE, CHN, VIN# LALJE035-P3900001 TO LALJE035-P3999999 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-KWS-900

$47.56

FORK, L. GEARSHIFT

24212-KWS-900

$47.56

SHAFT, GEARSHIFT FORK

24241-KPH-C00

$10.34

DRUM, GEARSHIFT

24301-KWS-900

$71.93

PLATE SET, SHIFT DRUM This part replaces 24410-KVS-900.

24410-KVS-305

$23.74

STOPPER, GEARSHIFT DRUM

24430-KRM-B10

$11.44

SPRING, DRUM STOPPER

24436-KTT-900

$3.12

SPINDLE, GEARSHIFT

24610-KYY-900

$72.07

SPRING, GEARSHIFT RETURN

24651-KSP-910

$4.03

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.02

ROTOR, NEUTRAL SWITCH

35753-KWS-900

$4.88

BOLT, HEX. (6X20)

90003-KVS-900

$1.88

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.28

WASHER, DRUM STOPPER This part replaces 90417-KRM-840.

90417-360-000

Unavailable

WASHER, DRUM STOPPER

90417-360-000

Unavailable

WASHER (14MM)

90457-KRM-840

$0.68

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

ROLLER (3X8.5)

96220-30085

$0.49
