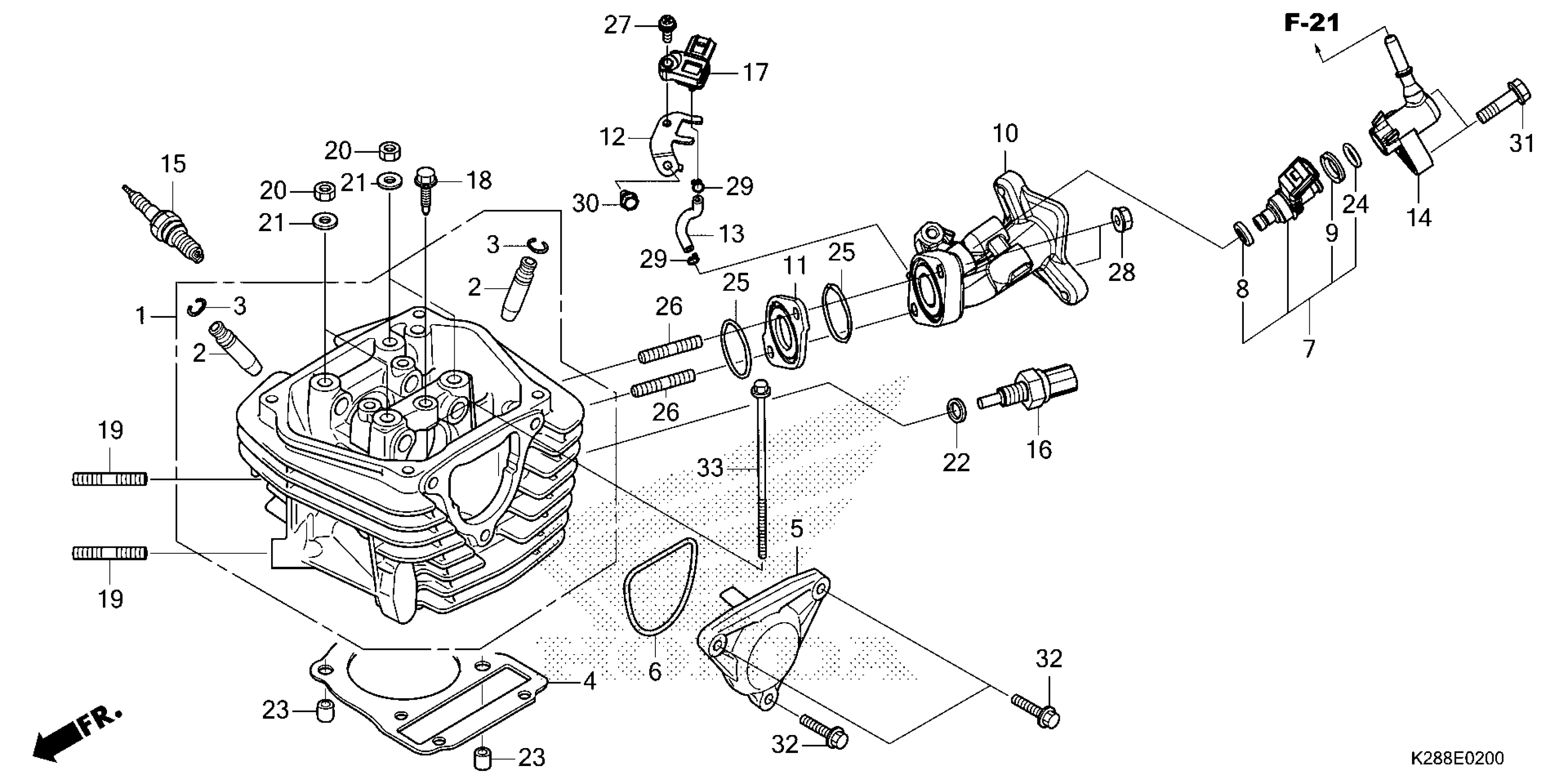

Honda CRF125FBAC (23) MOTORCYCLE, CHN, VIN# LALJE035-P3900001 TO LALJE035-P3999999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-K28-A60

$339.34

GUIDE, VALVE (OVER SIZE)

12204-KVY-305

$10.93

CLIP, VALVE GUIDE

12206-KPL-900

$3.52

GASKET, CYLINDER HEAD

12251-KYY-901

$16.38

COVER, L. CYLINDER HEAD SIDE

12341-KYY-900

$23.07

GASKET, L. CYLINDER HEAD SIDE COVER

12395-KYY-900

$4.26

INJECTOR ASSY., FUEL

16450-K28-A61

$132.30

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

DUST SEAL RING

16473-HR3-A42

$6.34

PIPE, INLET

17111-K28-A60

$49.26

INSULATOR, INLET PIPE A

17113-KYY-901

$11.13

STAY, PB

17535-K28-A60

$5.70

TUBE, PB

17537-K28-A60

$2.56

JOINT, INJECTOR

17565-K28-A60

$29.85

SPARK PLUG (CPR6EA-9) (NGK)

31916-KPH-901

$10.49

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$51.87

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

BOLT, SPECIAL (6X21)

90014-KYY-900

$2.41

BOLT, STUD (8X22)

90035-KRM-840

$10.62

NUT, HEX. (7MM)

90201-GCC-000

$1.49

WASHER (7.2X16X2.5)

90401-GFM-900

$1.74

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

PIN, DOWEL SPECIAL (8X14)

90701-KVR-C00

$1.89

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

O-RING (27X2.0)

91313-KVR-C00

$2.92

BOLT 2, STUD (6X25)

92900-06025-0B

$1.73

SCREW-WASHER (4X20)

93893-04020-08

$1.49

SCREW-WASHER (4X20)

93893-04020-18

Unavailable

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X110)

96001-06110-00

$3.80
