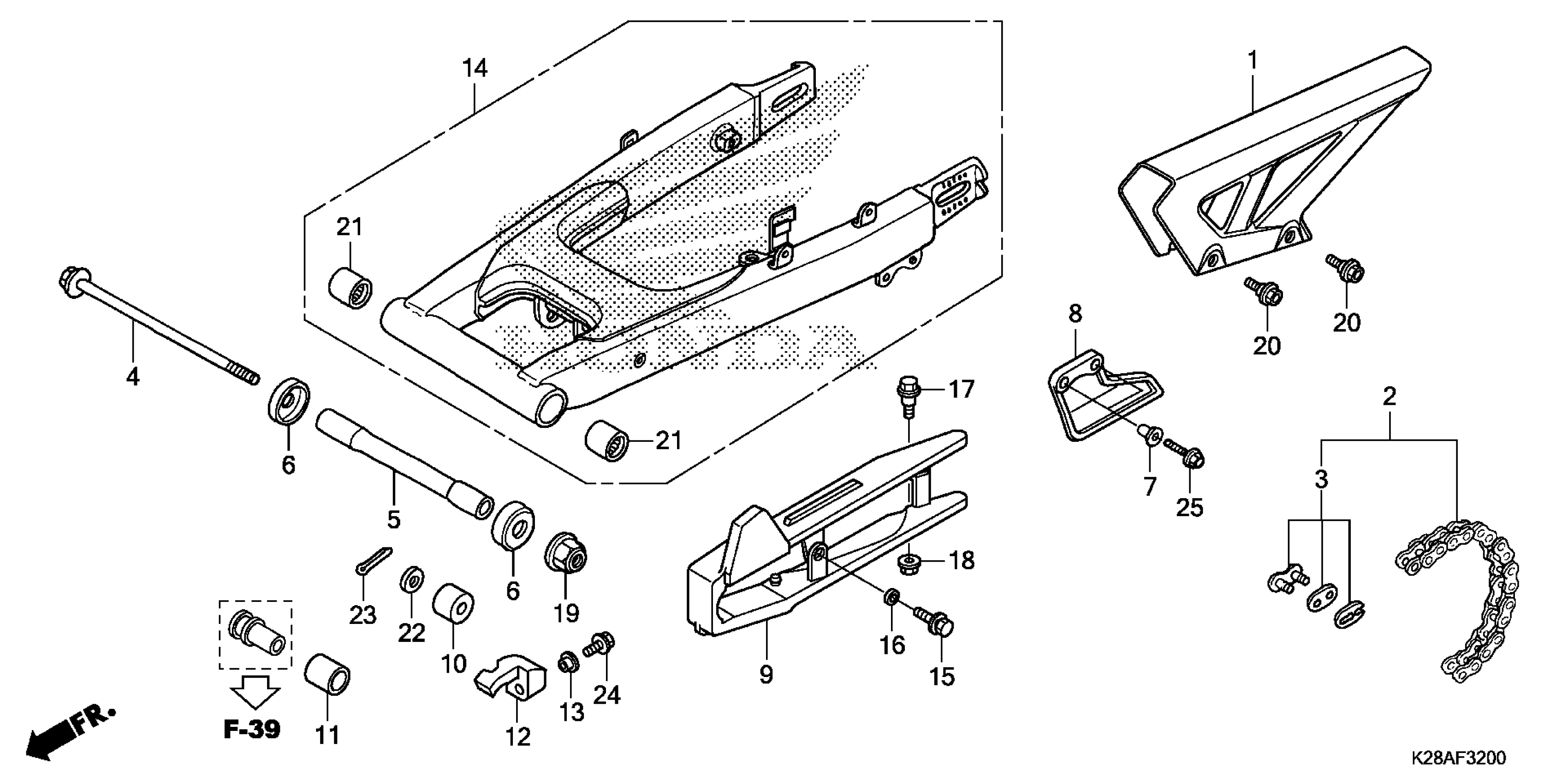

Honda CRF125FBAC (20) MOTORCYCLE, CHN, VIN# LALJE035-L3600001 TO LALJE035-L3699999 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-K28-910

$25.32

2

CHAIN, DRIVE (DID428HD-118RB) (DAIDO)

40530-KSJ-003

$57.03

3

MASTER LINK (DAIDO)

40531-355-013

$3.95

4

BOLT, SWINGARM PIVOT

52101-K28-910

$17.07

5

COLLAR, SWINGARM

52141-K28-910

$31.32

6

DUST SEAL (31X38.5X7) (NOK)

52144-GF5-003

$10.22

6

DUST SEAL (31X38.5X7) (NOK) This part replaces 52144-K28-910.

52144-GF5-003

$10.22

7

COLLAR, CHAIN GUARD

52157-K28-910

Unavailable

8

GUARD, CHAIN

52160-K28-910

$19.13

9

SLIDER, CHAIN

52170-K28-910

$65.15

10

ROLLER, CHAIN (UPPER)

52175-K28-910

$6.60

12

SLIDER, CHAIN (LOWER)

52185-K28-910

$12.38

13

WASHER (6MM)

52186-K28-910

$2.25

14

SWINGARM SUB-ASSY., RR.

52200-K28-920

$293.96

15

BOLT-WASHER (5X16)

90107-K28-910

$2.25

16

COLLAR (10.5X5.3X3)

90108-K28-910

$4.40

17

BOLT, FLANGE (6X20)

90113-KYK-910

$3.19

18

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.06

19

NUT, FLANGE (12MM) (PT)

90306-KYA-601

$2.79

20

BOLT, SPECIAL (6MM)

90653-KYK-910

Unavailable

21

BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT

91070-GC4-601

$22.71

22

WASHER, PLAIN (8MM)

94102-08700

$0.87

23

PIN, COTTER (2.0X15)

94201-20150

$1.04

24

BOLT, FLANGE (6X12)

95701-06012-07

Unavailable

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.63

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95801-06018-00.

95701-06018-00

$1.63
