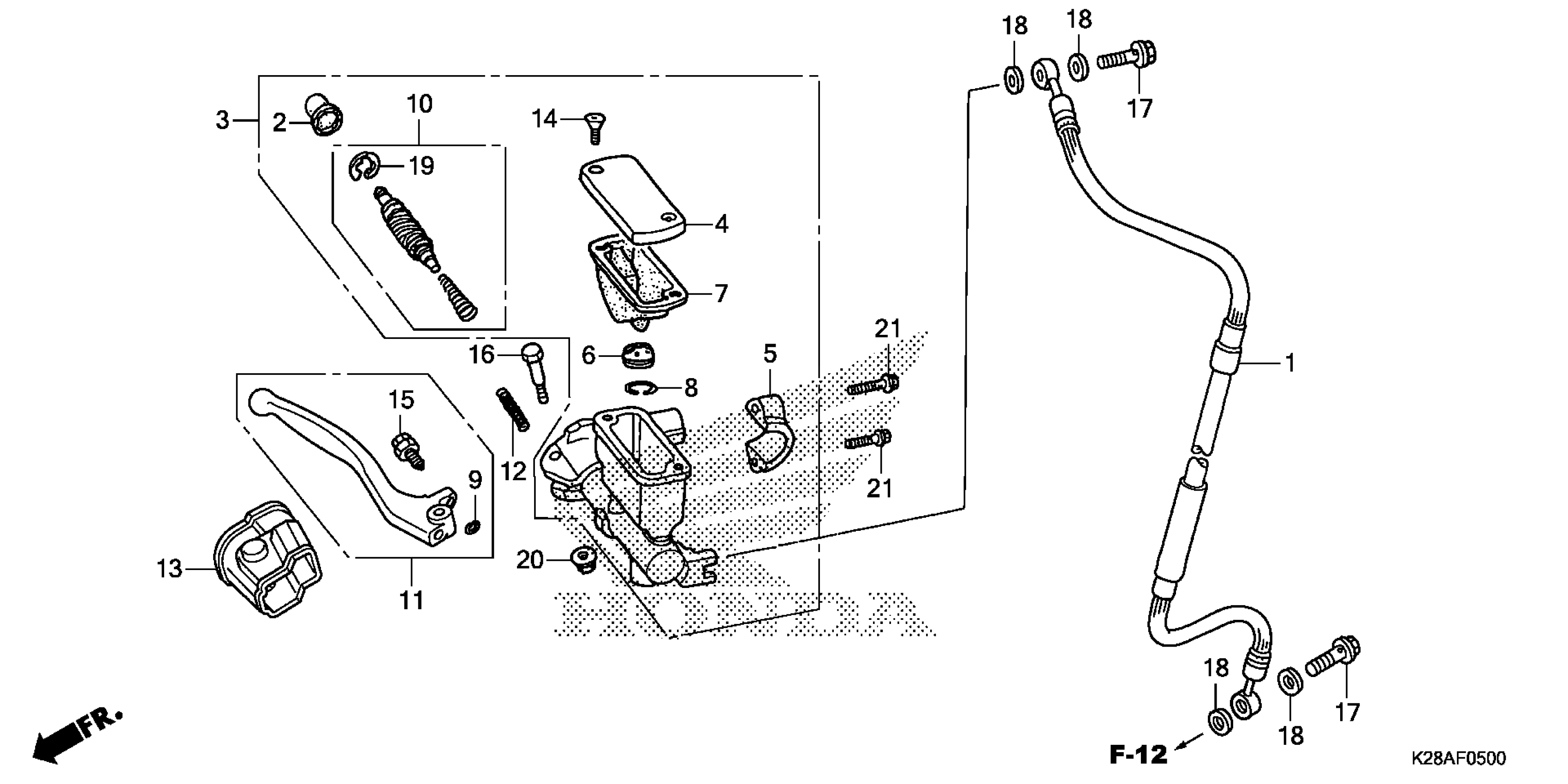

Honda CRF125FBAC (20) MOTORCYCLE, CHN, VIN# LALJE035-L3600001 TO LALJE035-L3699999 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-K28-A61

$107.04

BOOT

45504-KN5-006

$10.46

MASTER CYLINDER SUB-ASSY., FR. (COO)

45510-K28-305

$221.90

MASTER CYLINDER SUB-ASSY., FR. (COO) This part replaces 45510-K28-911.

45510-K28-305

$221.90

CAP, MASTER CYLINDER

45513-K28-911

$26.51

HOLDER, MASTER CYLINDER

45517-GW0-751

$11.39

SEPARATOR

45518-KA3-731

$11.18

DIAPHRAGM

45520-K28-911

$12.25

RING

45523-KA3-731

$2.71

RING

45523-MEB-003

$0.87

MASTER CYLINDER SET

45530-KPS-901

$103.28

LEVER, R. HANDLEBAR (COO)

53171-K28-305

$31.44

LEVER, R. HANDLEBAR (COO) This part replaces 53170-K28-911.

53171-K28-305

$31.44

SPRING, BRAKE LEVER

53174-KN5-006

$2.83

COVER, R. HANDLE LEVER

53176-K28-911

$19.38

SCREW, FLAT (4X12) This part replaces 90104-KRM-R80.

93600-04012-0G

$0.90

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

BOLT SET, ADJUSTING

90111-MEB-003

$3.57

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.20

BOLT, OIL (10X22)

90145-GW3-981

Unavailable

WASHER, OIL BOLT

90545-KCW-880

$1.91

CIRCLIP

90651-MA5-671

$2.38

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
