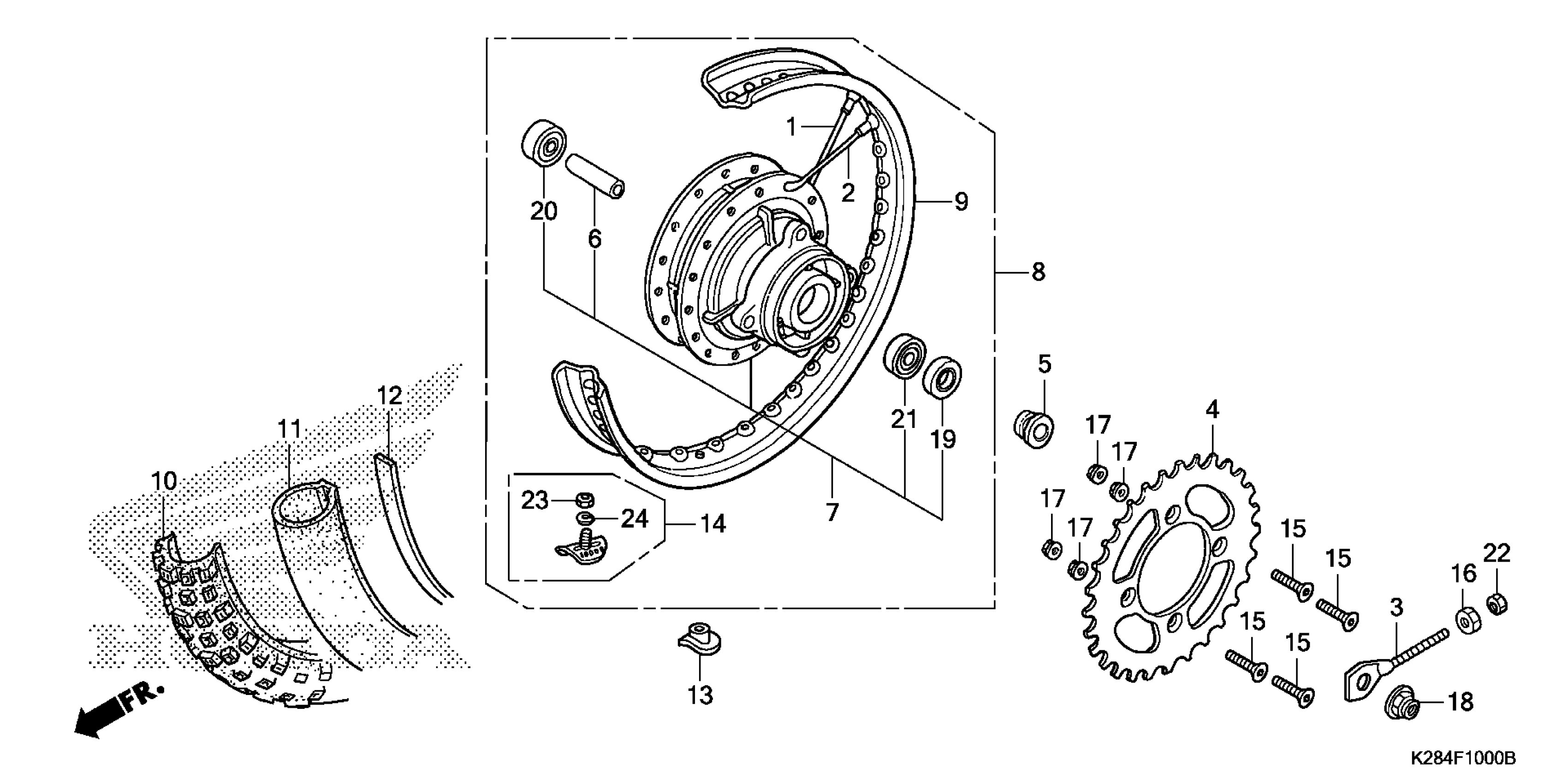

Honda CRF125FBAC (17) CRF125FB, CHN, VIN# LALJE035-H3300001 REAR WHEEL Diagram

SPOKE SET A, FR. (B10X146.5) (INSIDE)

06420-K28-920

$3.36

SPOKE SET B, FR. (B10X146.0) (OUTSIDE)

06421-K28-920

$3.36

ADJUSTER, CHAIN

40543-K28-910

$3.08

SPROCKET, FINAL DRIVEN (49T)

41201-K28-920

$48.29

COLLAR, RR. WHEEL SIDE

42311-K28-910

$13.14

COLLAR, RR. AXLE DISTANCE

42620-KYK-910

$10.45

HUB SUB-ASSY., RR.

42635-K28-910

$232.64

WHEEL SUB-ASSY., RR. (COO)

42650-K28-306

$350.66

RIM, RR. WHEEL (16X1.85)

42701-K28-920

$66.89

TIRE, RR. This part replaces 42711-K28-921.

42711-K28-922

$118.08

TUBE, TIRE (90/100-16) (CST)

42712-K28-921

$39.15

FLAP, TIRE (CST)

42713-K28-921

$3.96

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (1.85)

42715-KA2-680

$32.27

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, FLANGE SPECIAL (8MM)

90303-K28-911

$4.26

NUT, FLANGE (12MM) (PT)

90306-KYA-601

$2.92

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

DUST SEAL (21X37X5.5) (ARAI) This part replaces 90755-GC4-005.

90755-GC4-003

$5.05

BEARING, RADIAL BALL (6201UU)

91051-K28-911

$16.86

BEARING, RADIAL BALL (6301UU)

91052-KWW-C51

$17.60

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
