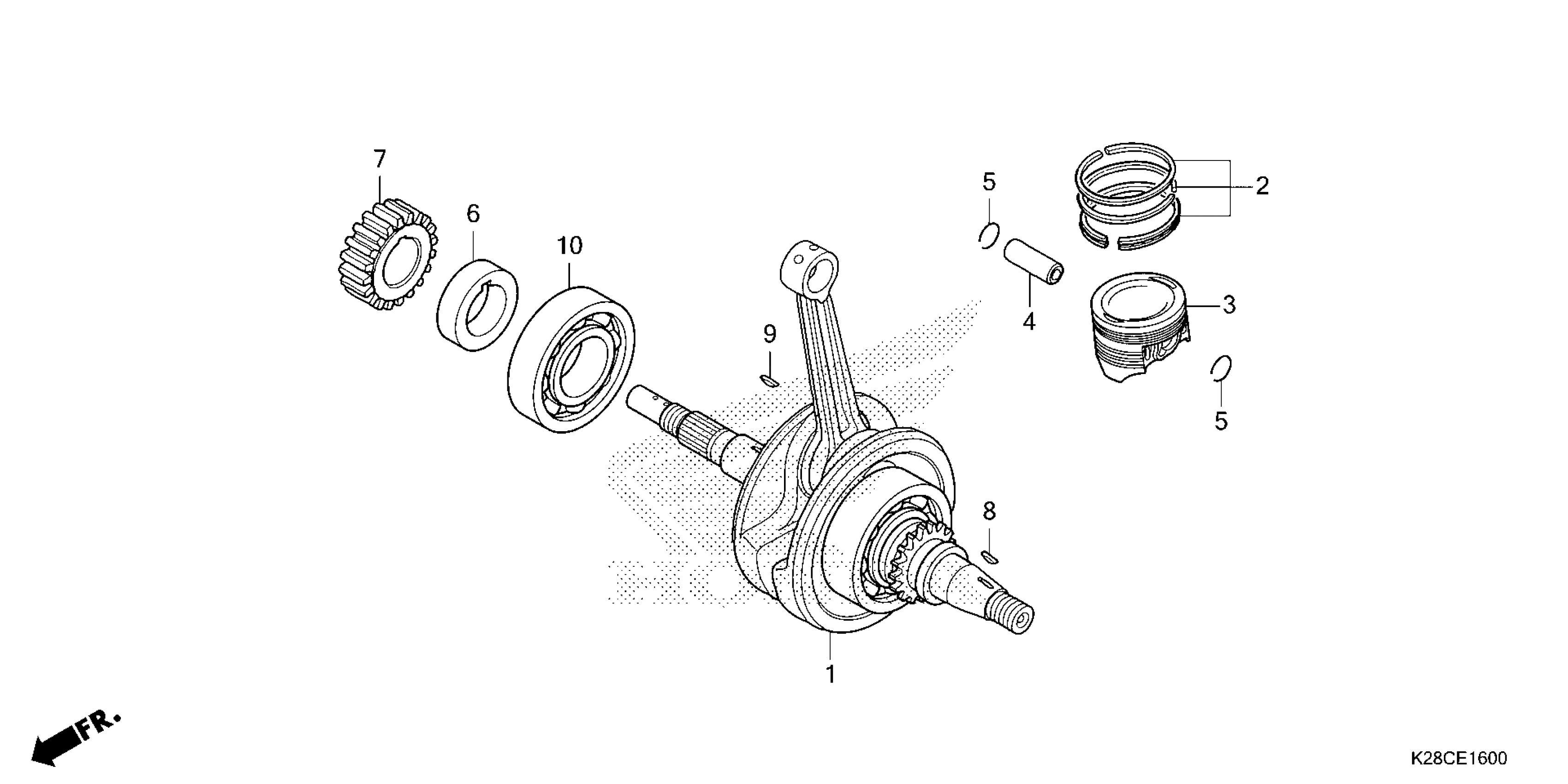

Honda CRF125FBA (26) MOTORCYCLE, CHN, VIN# LALJE037-T3800001 TO LALJE037-T3899999 CRANKSHAFT@PISTON Diagram

CRANKSHAFT

13000-K28-910

$398.31

RING SET, PISTON (STD) (TPR)

13011-KYY-900

$39.02

PISTON (STD)

13101-KYY-900

$59.59

PIN, PISTON

13111-KWS-900

$9.80

CLIP, PISTON PIN (12MM)

13115-KWS-900

$2.30

COLLAR, PRIMARY DRIVE GEAR

13412-KWS-900

$4.84

GEAR, PRIMARY DRIVE (20T)

23121-KYY-900

$58.18

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

KEY, WOODRUFF (4MM)

90741-KGH-900

$2.26

BEARING, RADIAL BALL (63/22) (NSK)

91001-KWS-901

$22.41
