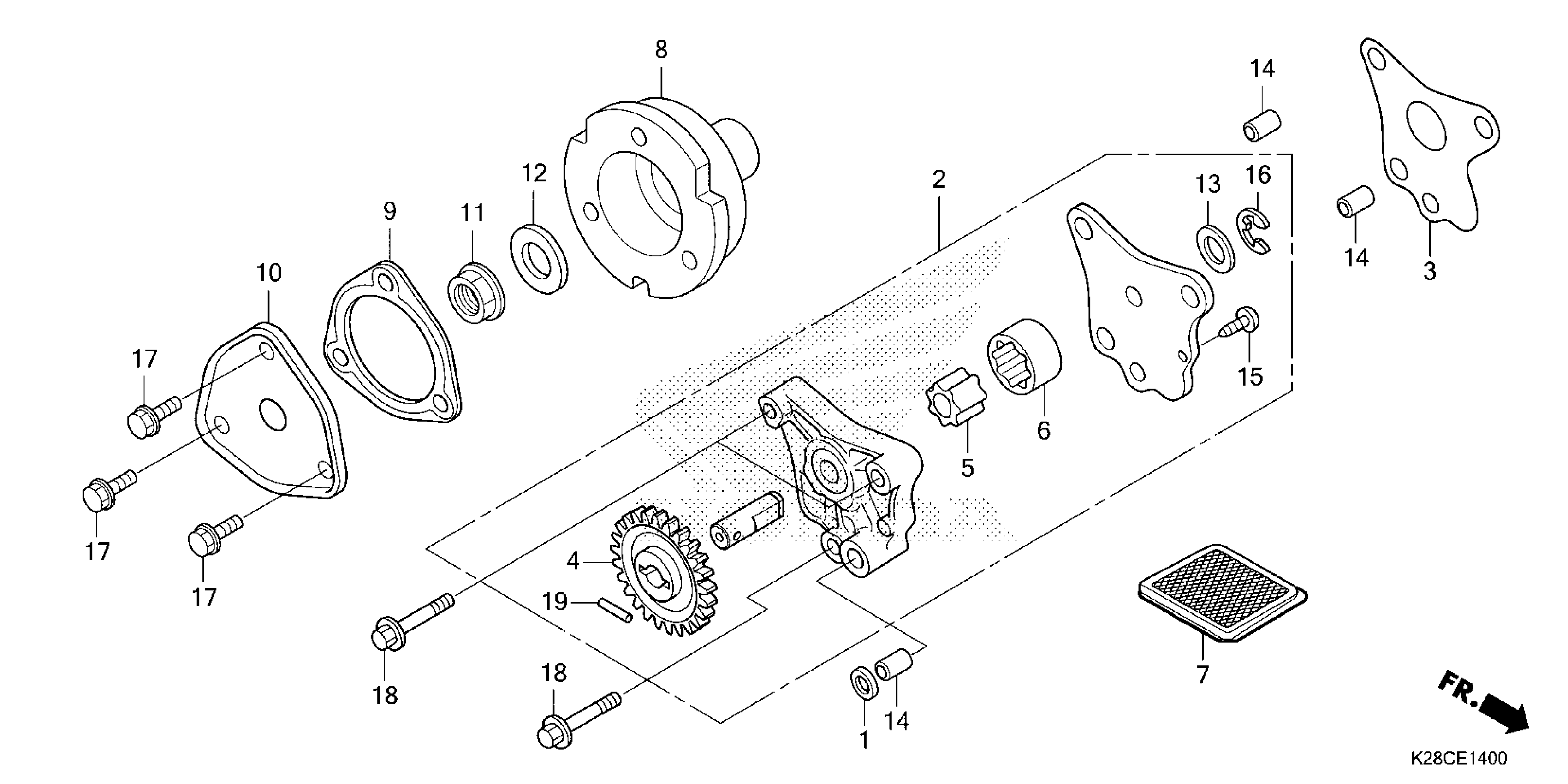

Honda CRF125FAC (26) MOTORCYCLE, CHN, VIN# LALJE031-T3300001 TO LALJE031-T3399999 OIL PUMP Diagram

GASKET B, HEAD COVER

12396-KRM-840

Unavailable

PUMP ASSY., OIL

15100-KYY-900

$80.75

GASKET, OIL PUMP

15119-KWS-901

$4.62

GEAR, OIL PUMP DRIVEN (23T)

15133-KYY-900

$34.44

ROTOR, OIL PUMP (INNER)

15331-KYY-900

$11.75

ROTOR, OIL PUMP (OUTER)

15332-KYY-900

$14.01

SCREEN, OIL FILTER

15421-KSP-910

$3.26

ROTOR, OIL FILTER

15431-KWS-900

$34.94

GASKET, OIL FILTER COVER This part replaces 15439-KWS-901.

15439-K26-901

$2.80

GASKET, OIL FILTER COVER

15439-K26-901

$2.80

COVER, OIL FILTER

15441-KWS-900

$27.22

NUT, SPECIAL FLANGE (14MM)

90202-KRM-840

$0.75

WASHER (14.2X26X3)

90432-KPT-A00

$1.66

WASHER (9.2MM)

90455-KWS-900

$2.57

PIN, DOWEL (8X14)

90702-KRM-840

$0.62

SCREW, TAPPING (4X8)

93901-34120

$0.90

E-RING (6MM)

94540-06018

$3.05

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

Unavailable

ROLLER (3X15.8)

96220-30158

$0.23
