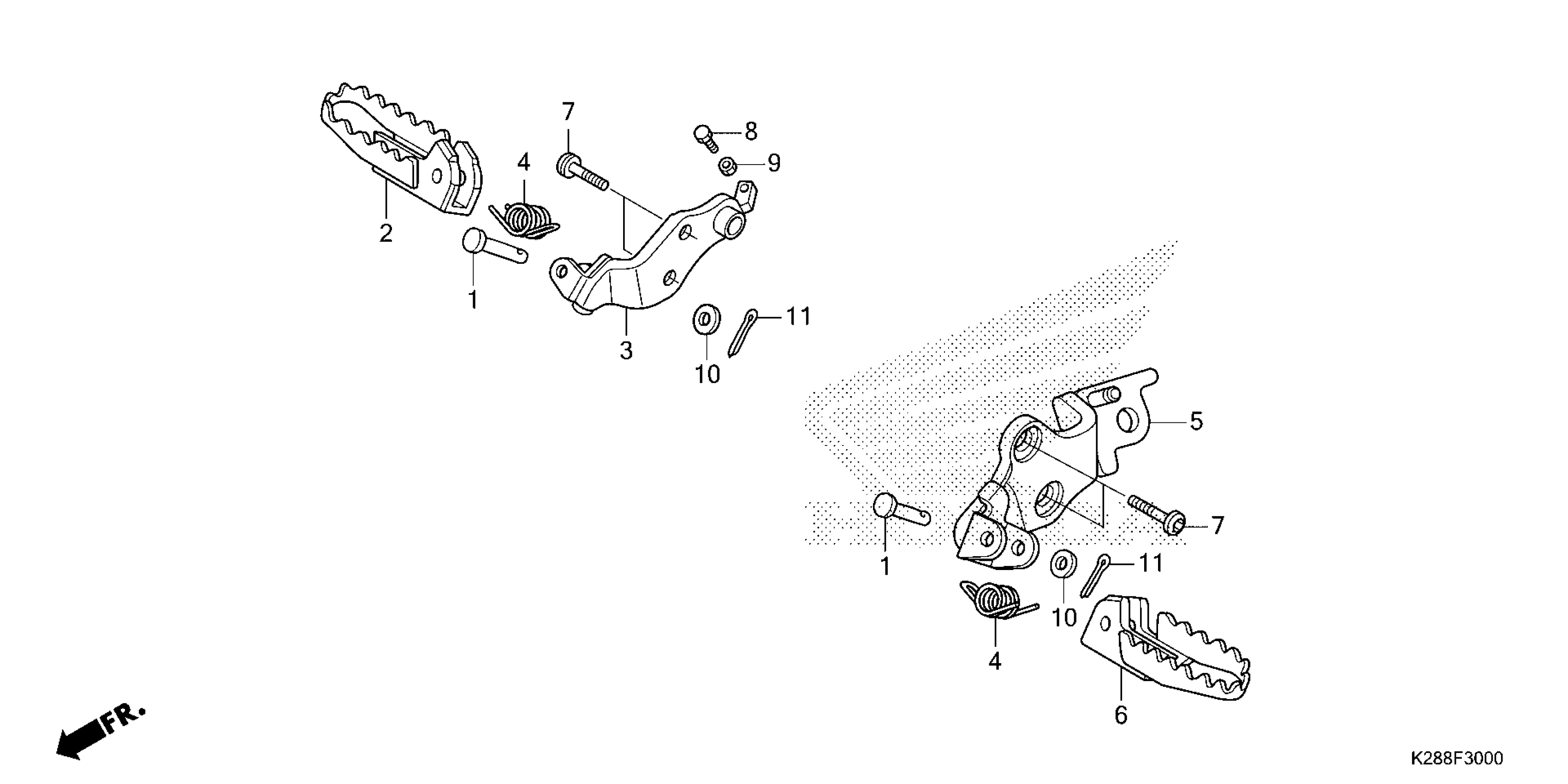

Honda CRF125FAC (24) MOTORCYCLE, CHN, VIN# LALJE031-R3100001 TO LALJE031-R3199999 STEP Diagram

PIN, STEP BAR JOINT

50603-KRH-900

$3.45

STEP, R. (COO)

50612-KYK-305

$19.00

STEP, R. (COO) This part replaces 50612-KYK-910.

50612-KYK-305

$19.00

BRACKET, R. STEP

50615-K28-A60

$49.22

SPRING, STEP RETURN

50617-KRH-900

$4.78

BRACKET, L. STEP

50624-K28-910

$50.59

STEP, L. (COO)

50642-KYK-305

$19.00

STEP, L. (COO) This part replaces 50642-KYK-910.

50642-KYK-305

$19.00

BOLT, SOCKET (10X28)

90116-MFJ-D00

$4.01

BOLT, HEX. (6X16)

92101-06016-0A

$1.35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

NUT, HEX. (6MM)

94001-06200-0S

$1.21

WASHER, PLAIN (8MM)

94102-08000

$0.87

PIN, COTTER (2.0X15)

94201-20150

$0.96
