Description

Price

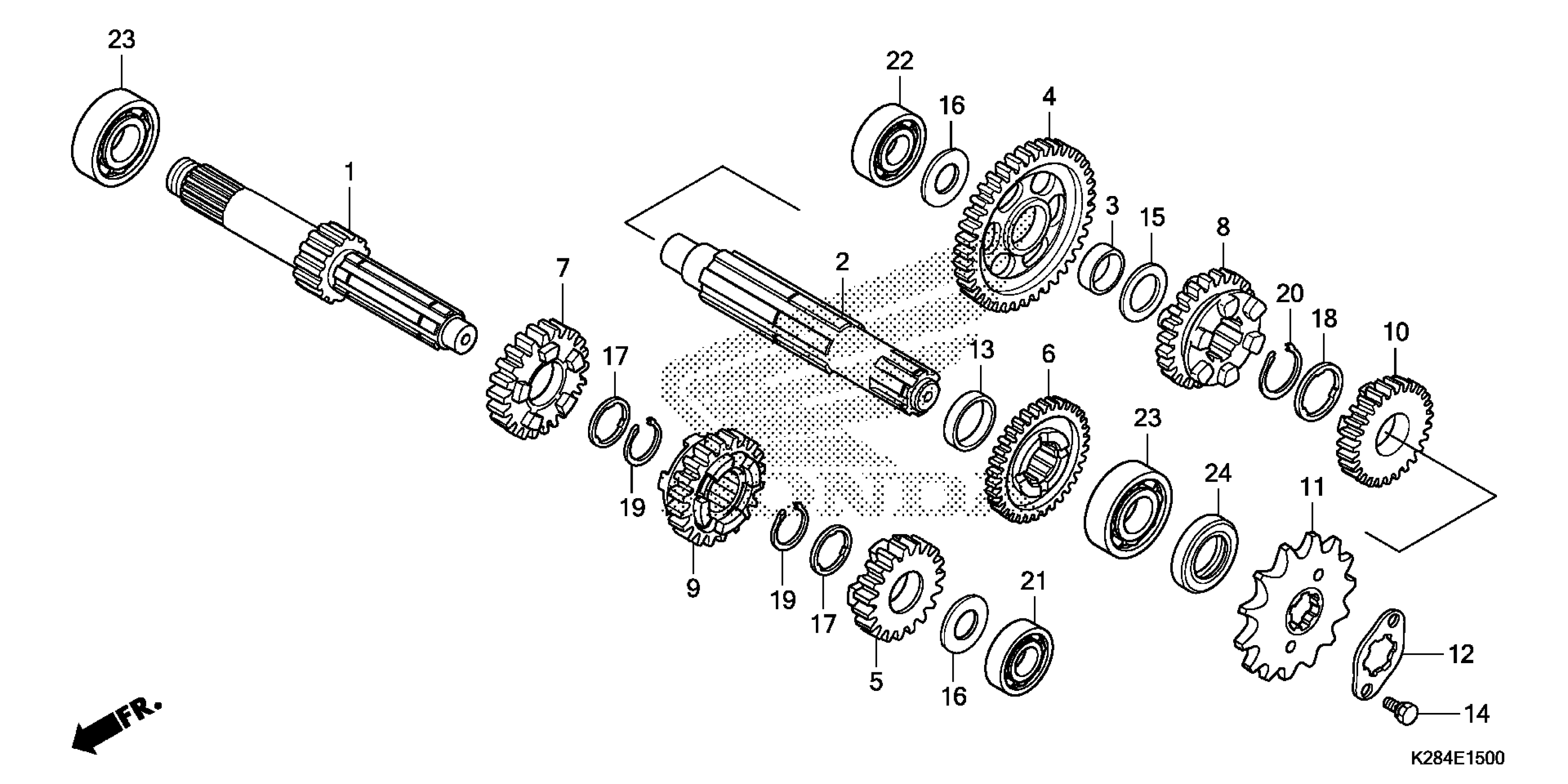

1

MAINSHAFT (11T)

23211-KYY-900

$112.92

2

COUNTERSHAFT

23221-KYY-900

$93.64

3

BUSH (15MM)

23415-KPH-900

$5.34

4

GEAR, COUNTERSHAFT FIRST (35T)

23421-KYY-900

$85.41

5

GEAR, MAINSHAFT SECOND (17T)

23431-KYY-900

$65.18

6

GEAR, COUNTERSHAFT SECOND (29T)

23441-KYY-900

$72.69

7

GEAR, MAINSHAFT THIRD (21T)

23451-KYY-901

$72.43

8

GEAR, COUNTERSHAFT THIRD (26T)

23461-KYY-901

$86.41

9

GEAR, MAINSHAFT FOURTH (24T)

23471-KYY-901

$78.90

10

GEAR, COUNTERSHAFT FOURTH (22T)

23481-KYY-901

$75.16

11

SPROCKET, DRIVE (13T)

23801-K28-910

$20.78

12

PLATE, FIXING

23802-K28-910

$4.30

13

COLLAR (20MM)

23911-KWS-900

$3.98

14

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

15

WASHER, THRUST (15MM)

90412-187-000

$2.05

16

WASHER, SPECIAL (12X23)

90412-KPH-900

$1.49

17

WASHER, SPLINE (17MM)

90461-035-000

$2.57

18

WASHER, SPLINE (20MM)

90461-459-010

$5.54

19

CIRCLIP (17MM)

90601-KYY-900

$2.92

20

CIRCLIP (20MM)

90602-KYY-900

$3.62

21

BEARING, RADIAL BALL (6001) This part replaces 91013-KZV-J01.

96100-60010-00

$17.13

22

BEARING, RADIAL BALL (6201)

91014-KZV-J01

$15.93

23

BEARING, RADIAL BALL (6203) (NA USE ALT:96100-62030-00)

91015-KZV-J01

Unavailable

24

OIL SEAL (17X29X5)

91204-KWB-601
