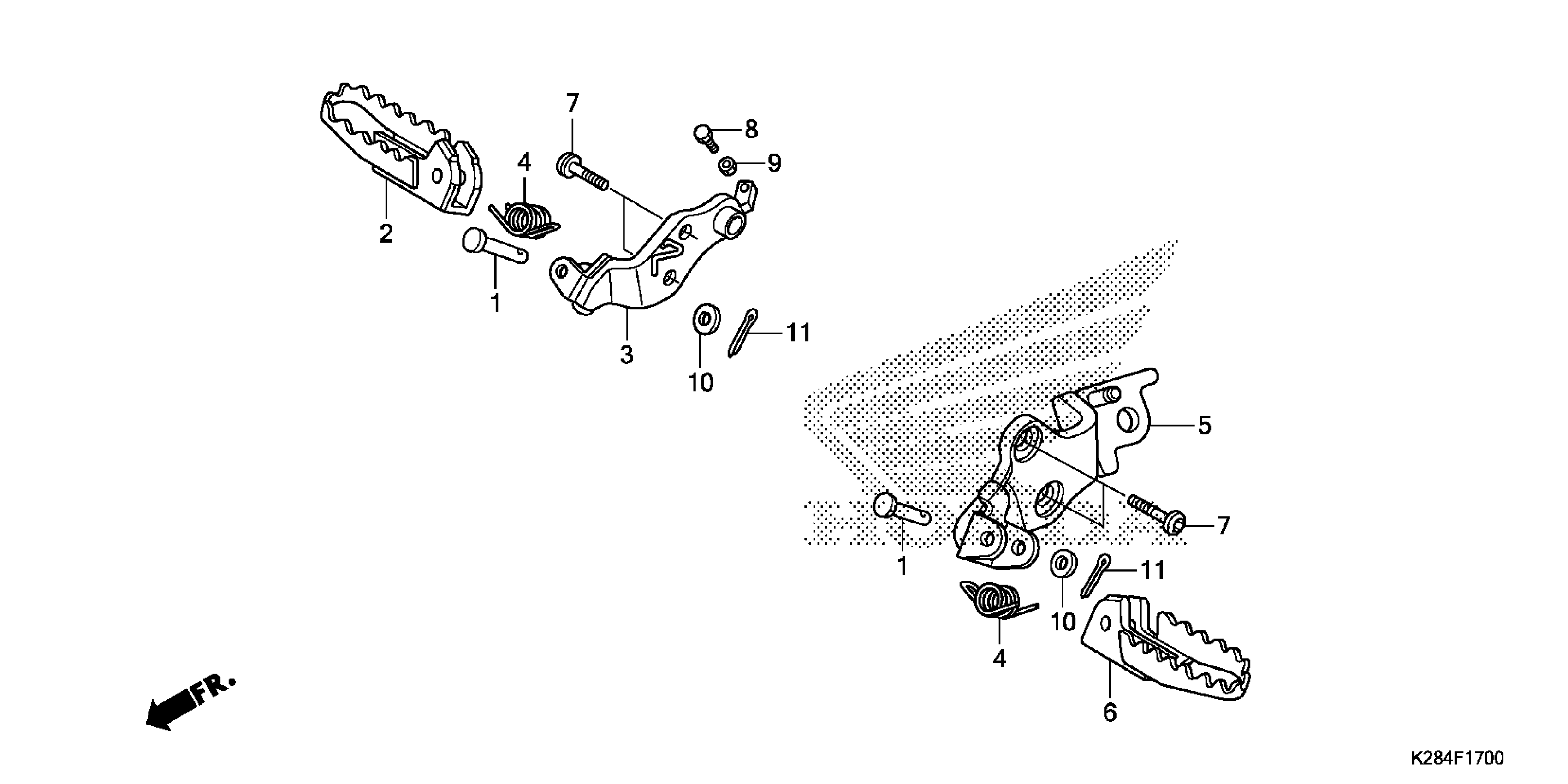

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 STEP Diagram

PIN, STEP BAR JOINT

50603-KRH-900

$3.72

STEP, R. (COO)

50612-KYK-305

$20.67

BRACKET, R. STEP

50615-K28-910

$54.77

SPRING, STEP RETURN

50617-KRH-900

$5.16

BRACKET, L. STEP

50624-K28-910

$54.75

STEP, L. (COO)

50642-KYK-305

$20.67

BOLT, SOCKET (10X28)

90116-MFJ-D00

$4.21

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49
