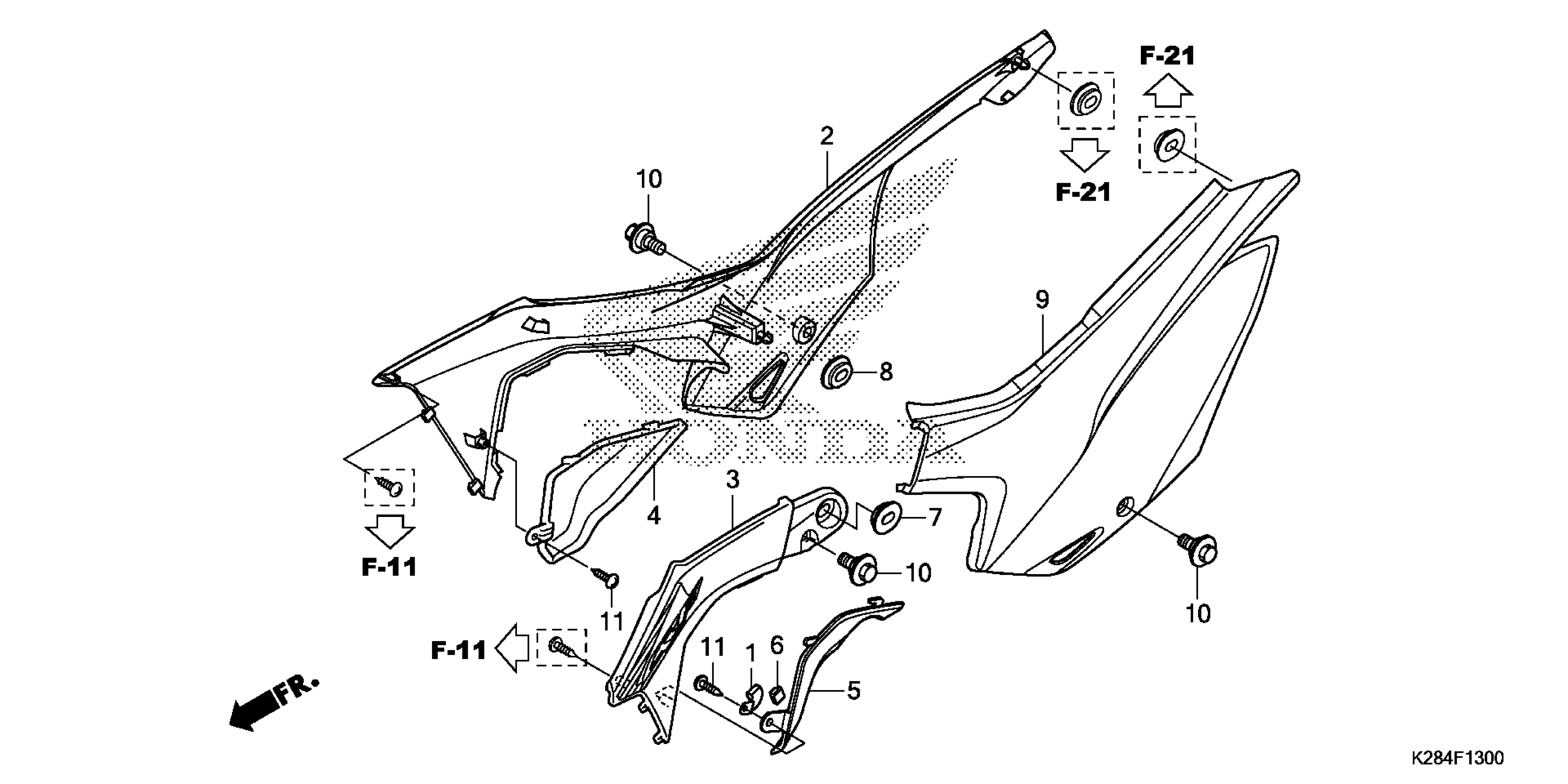

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 SIDE COVER Diagram

#

Description

Price

1

STAY, L. SHROUD

17557-K28-910

$5.71

2

SHROUD SET B, R. TANK (TYPE1) (WL) | Extreme red R292R;

17565-K28-910ZA

$107.39

3

SHROUD SET B, L. TANK (TYPE1) (WL) | Extreme red R292R;

17575-KYK-910ZA

$46.46

4

SHROUD C, R. TANK

17580-KYK-910

$8.12

5

SHROUD C, L. TANK

17590-K28-910

$7.33

6

RUBBER, PROTECTOR GASKET

18293-KYY-900

$2.36

7

GROMMET, SIDE COVER

83542-KPN-900

$4.30

8

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

9

COVER, L. SIDE NH196 (ROSS WHITE) | Extreme red R292R;

83600-K28-910ZA

$55.64

10

BOLT, SPECIAL (6MM)

90653-KYK-910

Unavailable

11

SCREW, TAPPING (4X12)

93913-24220

$0.83
