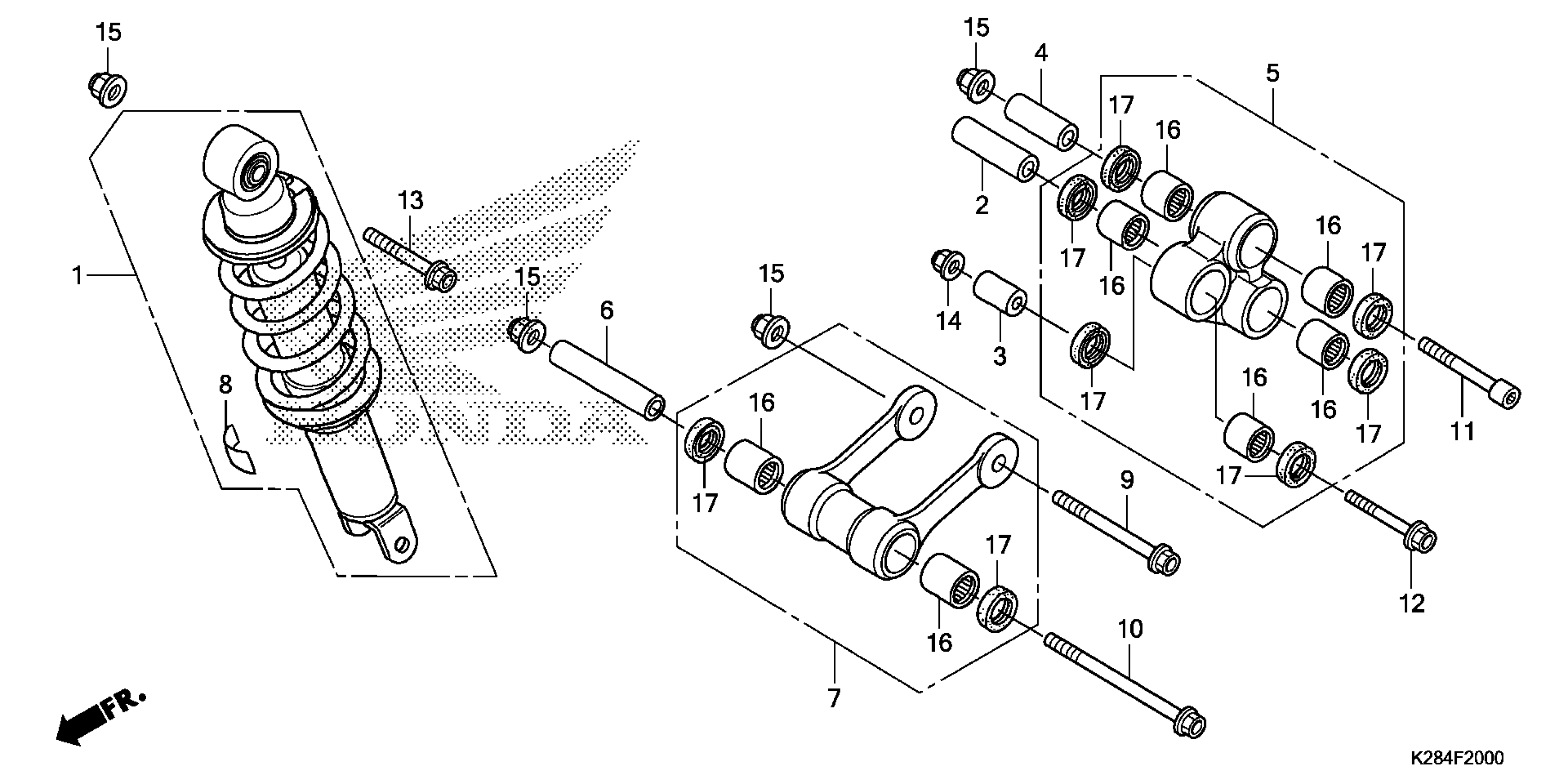

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (COO)

52400-K28-305

$437.59

COLLAR A, CUSHION ARM

52462-K28-910

$19.22

COLLAR, DAMPER (LOWER)

52463-K28-910

$17.84

COLLAR B, CUSHION ARM

52464-K28-910

$19.21

ARM SUB-ASSY., CUSHION

52465-K28-910

$212.84

COLLAR, CONNECTING ROD

52472-K28-910

$24.60

ROD SUB-ASSY., CUSHION CONNECTING

52475-K28-910

$182.31

LABEL, RR. DAMPER (ENGLISH)

87516-KRH-901

$7.37

BOLT, FLANGE (10X95)

90102-K28-910

$5.78

BOLT, FLANGE (10X121)

90106-K28-910

$6.28

BOLT, SOCKET (10X68)

90128-K28-910

$8.06

BOLT, FLANGE (8X48)

90150-K28-910

$2.96

BOLT, FLANGE (10X54)

90152-K28-910

$2.89

NUT, FLANGE SPECIAL (8MM)

90303-K28-911

$3.95

NUT, FLANGE (10MM) (PT)

90304-KYA-601

$3.23

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$18.07

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91
