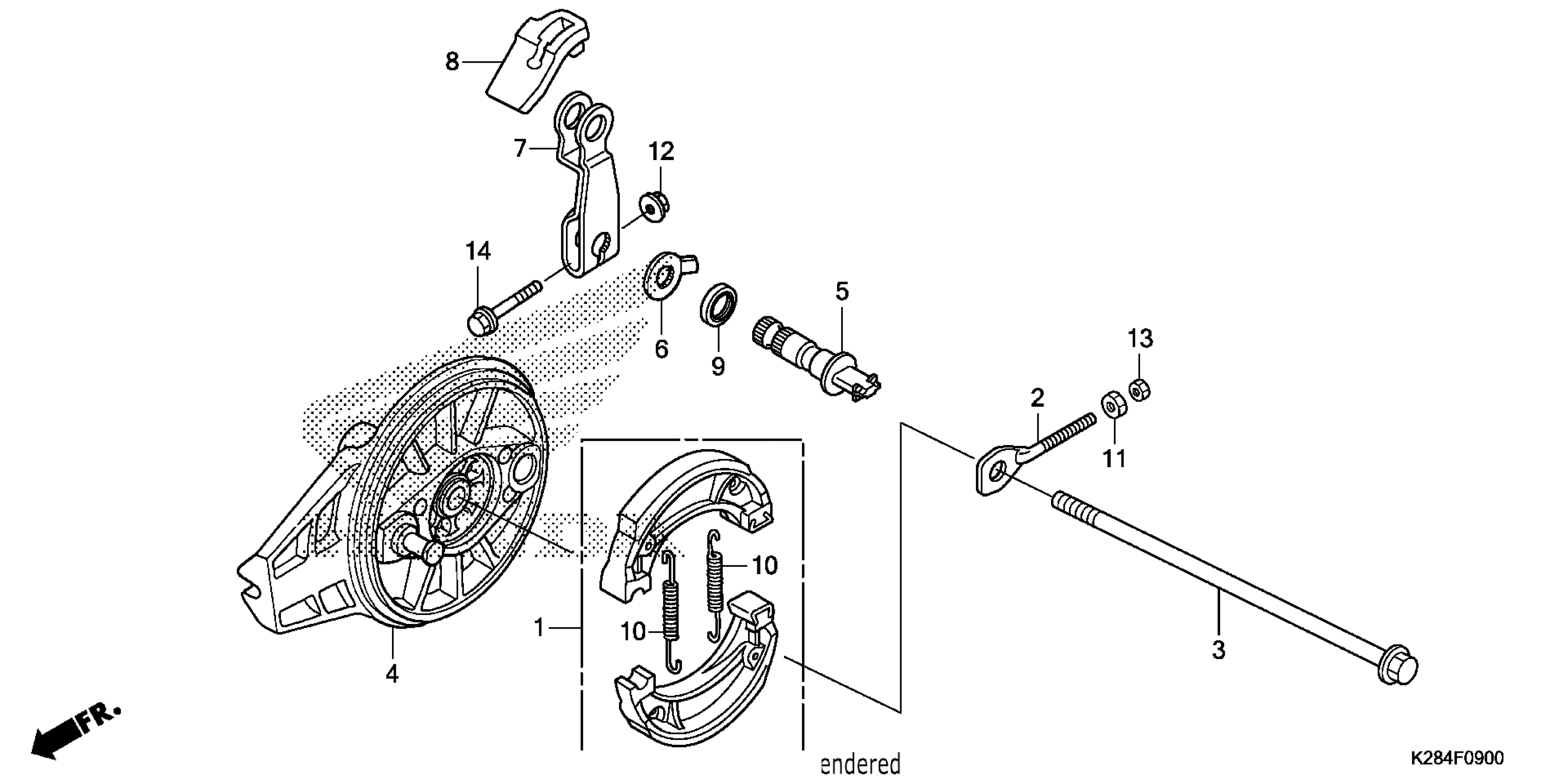

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (JB NH FE)

06450-KYK-910

$26.79

ADJUSTER, CHAIN

40543-K28-910

$2.85

AXLE, RR. WHEEL

42301-K28-910

$17.93

PANEL, RR.

43100-KYK-910

$160.05

CAM, RR. BRAKE

43141-KYK-910

$17.15

INDICATOR, RR. BRAKE

43145-KYK-910

$3.85

ARM, RR. BRAKE

43410-K28-910

$7.95

COVER, RR. BRAKE ARM

43411-KYK-910

$6.63

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.80

SPRING, BRAKE SHOE

45151-GFC-900

$2.70

NUT, SPECIAL (6MM)

90302-KBP-900

$1.86

NUT, FLANGE (6MM) (PT)

90302-KYA-601

$2.03

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19

BOLT, FLANGE (6X35)

96001-06035-00

$1.28
