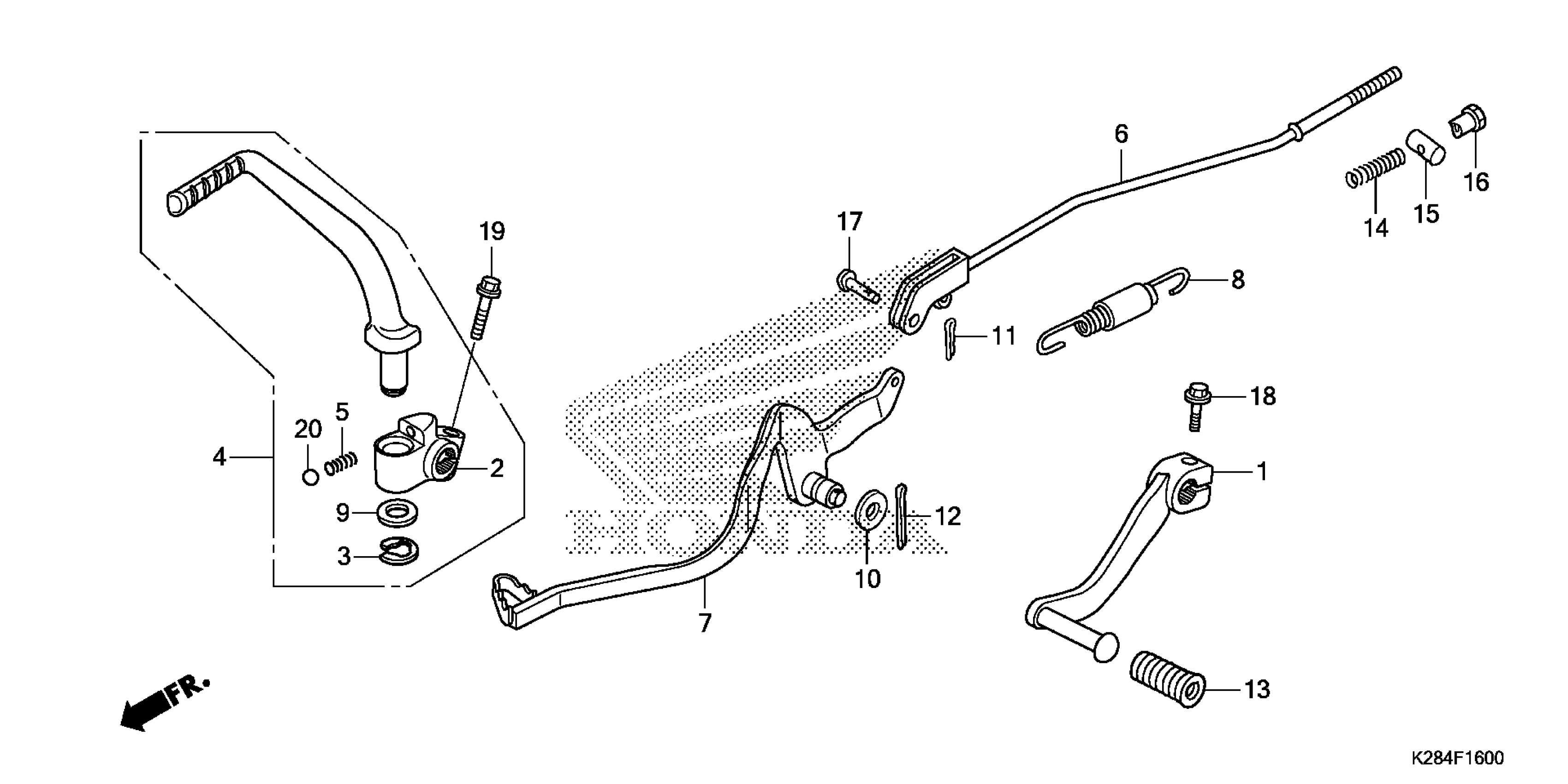

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 PEDAL Diagram

PEDAL, GEARSHIFT (COO)

24701-K28-305

$38.15

JOINT, KICK ARM

28241-K28-910

$45.56

CLIP, KICK STARTER ARM

28293-333-000

$2.67

ARM ASSY., KICK STARTER (COO)

28300-K28-305

$114.98

SPRING, KICK STARTER

28333-KK0-000

$2.51

ROD, RR. BRAKE

43451-K28-910

$16.44

PEDAL, BRAKE (COO)

46500-K28-305

$63.89

SPRING SET, BRAKE PEDAL

46513-KRH-900

$11.03

WASHER (15.5X22)

90505-KRM-860

$1.49

WASHER, PLAIN (10MM)

94101-10000

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

RUBBER, CHANGE PEDAL

95011-40000

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN C, JOINT

95015-53000

$3.06

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
