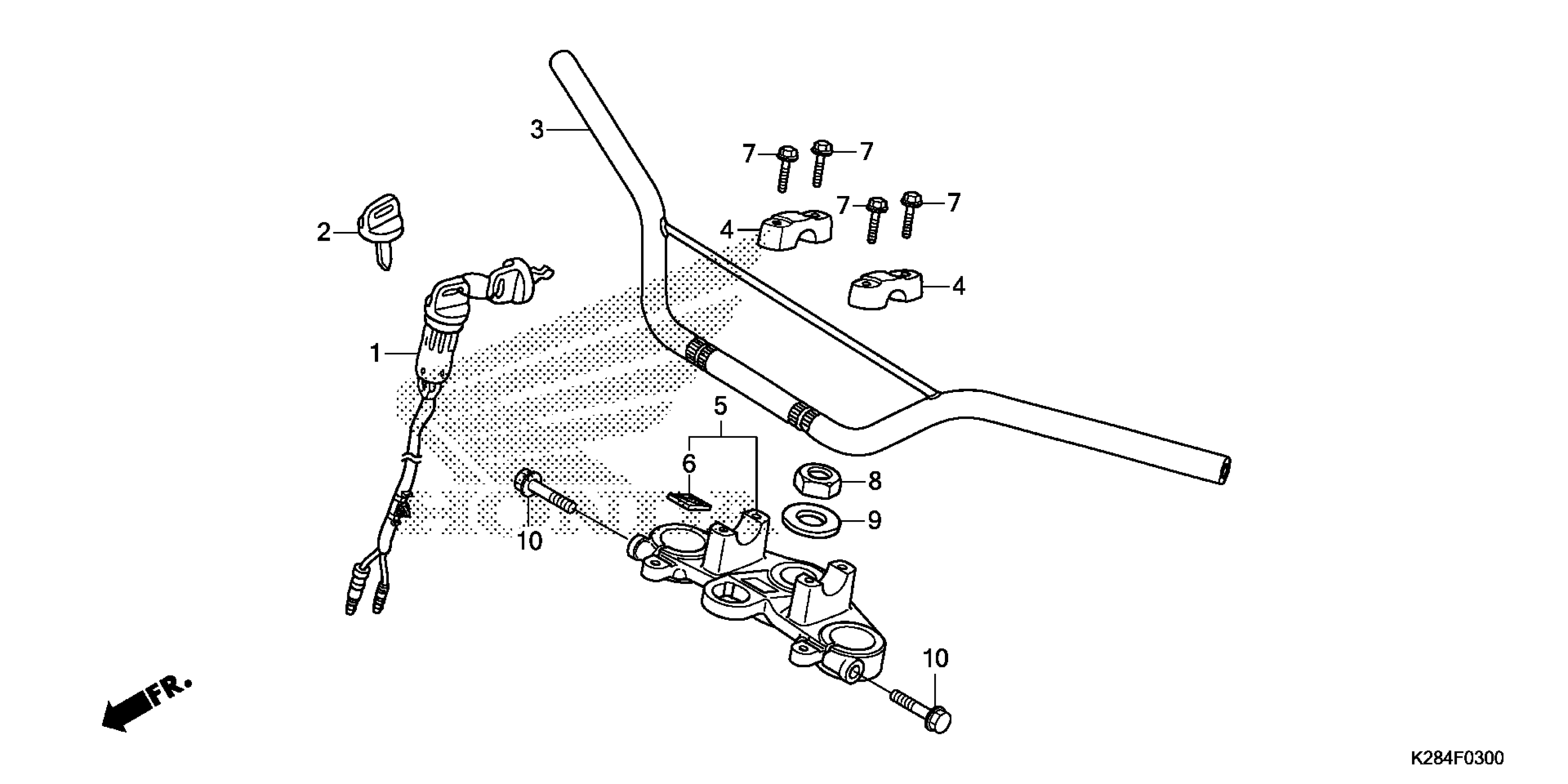

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 HANDLEBAR Diagram

#

Description

Price

1

SWITCH ASSY., IGNITION

35100-K28-911

$69.28

2

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HF1-881

$8.84

2

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.84

3

HANDLEBAR (COO)

53100-K28-305

$96.09

4

HOLDER, HANDLE (UPPER)

53131-KCS-W60

$5.96

5

BRIDGE, FORK TOP

53300-KYK-910

$54.87

6

EMBLEM, PRODUCT (SHINKO)

86150-KTJ-C60

$3.69

7

BOLT, FLANGE (6X28)

90117-383-000

$2.21

8

NUT, STEERING STEM

90308-KRH-900

$6.90

9

WASHER, STEERING STEM

90503-KTT-900

$3.29

10

BOLT, FLANGE (8X35)

95701-08035-08

$1.29
