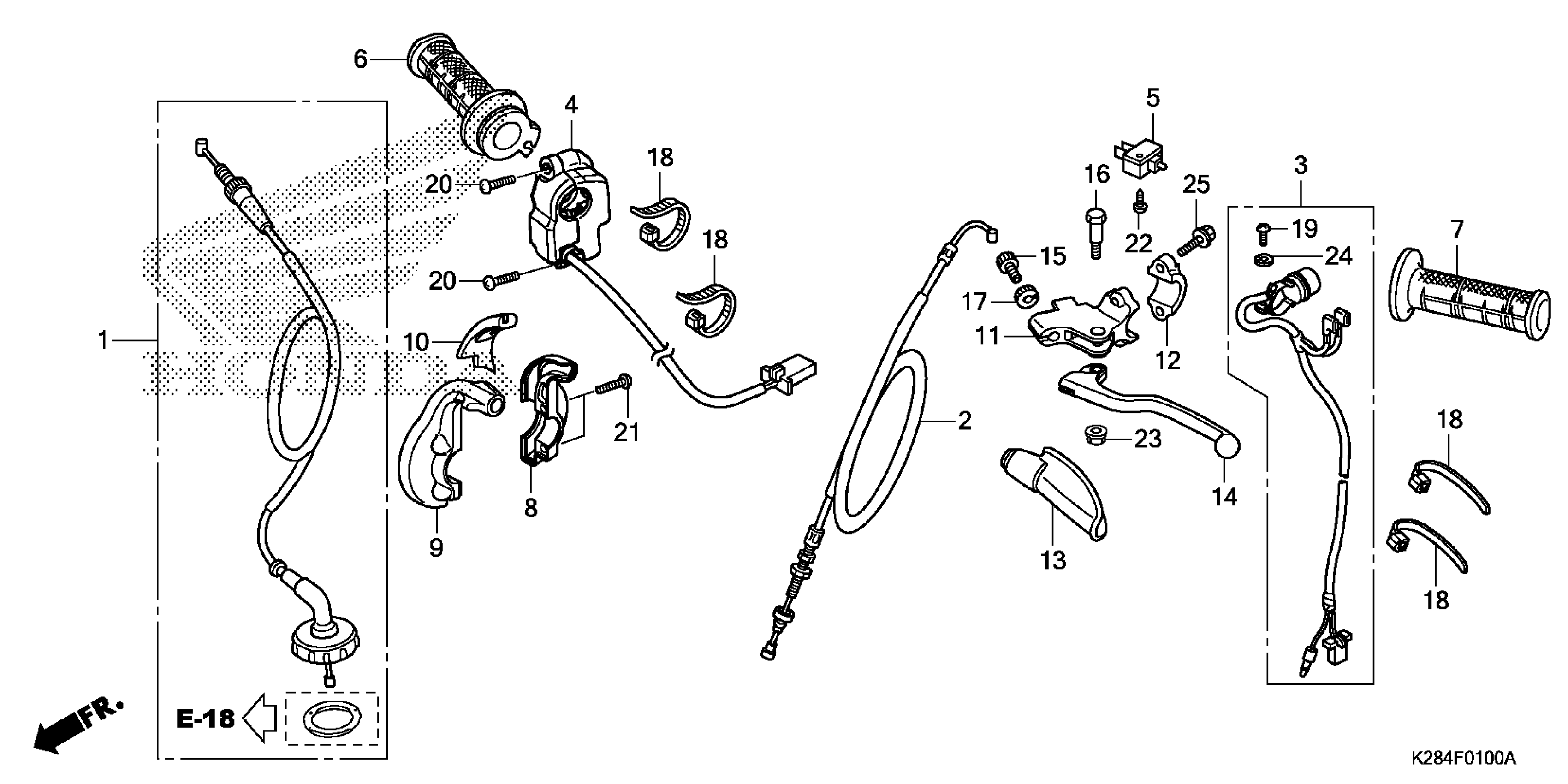

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-K28-305

$54.23

2

CABLE, CLUTCH

22870-K28-911

$22.40

3

SWITCH ASSY., ENGINE STOP

35130-K28-911

$41.16

4

SWITCH ASSY., STARTER

35150-K28-911

$54.85

5

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

6

GRIP, THROTTLE (COO)

53140-K28-305

$28.98

7

GRIP, L. HANDLE (COO)

53166-K28-305

$10.78

8

HOUSING, THROTTLE (LOWER)

53167-KYK-910

$29.71

9

HOUSING, THROTTLE (UPPER)

53168-K28-910

$28.48

10

SLIDER, THROTTLE

53169-KYK-910

$7.30

11

BRACKET, L. HANDLE LEVER

53172-K28-910

$66.95

12

HOLDER, L. LEVER BRACKET

53174-K28-910

$16.86

13

COVER, L. HANDLE LEVER

53177-KZZ-900

$2.92

14

LEVER, L. HANDLE (COO)

53178-K28-305

$44.30

15

BOLT, WIRE ADJUSTING

53192-KTJ-900

$5.78

16

BOLT, HANDLE LEVER PIVOT

90113-KYY-900

$3.04

17

NUT, FIXING

90321-KTJ-900

$10.23

18

BAND, WIRE

90650-KW3-000

$4.48

19

SCREW, PAN (4X12)

93500-04012-0A

$1.49

19

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

20

SCREW, PAN (4X14)

93500-04014-0G

$1.49

21

SCREW, PAN (5X16)

93500-05016-0G

$1.49

22

SCREW, TAPPING (3X10)

93901-32220

$1.49

23

NUT, FLANGE (6MM)

94050-06000

$1.49

24

WASHER, SPRING (4MM)

94111-04000

$1.49

25

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
