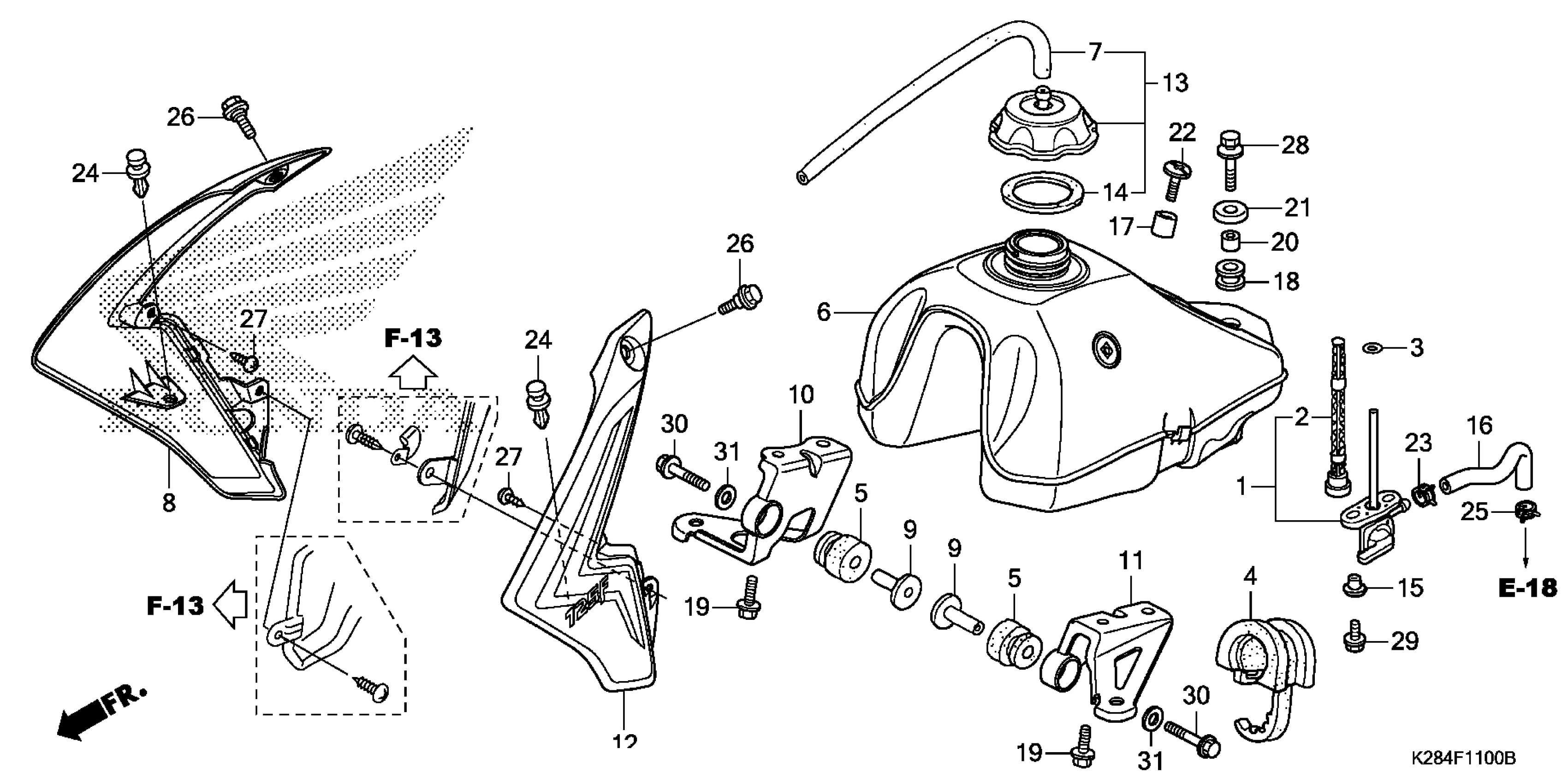

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 FUEL TANK Diagram

PETCOCK ASSY.

16950-KSJ-A21

$62.38

SCREEN SET, FUEL STRAINER

16952-KSJ-A21

$22.54

O-RING (11.8X3.55)

16997-467-000

$2.11

RUBBER, TANK SETTING

17504-GN1-770

$15.40

RUBBER, TANK MOUNTING

17508-GBF-830

$5.90

TANK, FUEL

17510-K28-910

$354.11

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

SHROUD SET A, R. TANK (TYPE1) (WL) | Extreme red R292R;

17545-K28-910ZA

$62.31

COLLAR, TANK SET

17551-K28-910

$7.23

BRACKET, R. FR. TANK

17553-K28-910

$21.03

BRACKET, L. FR. TANK

17554-K28-910

$21.98

SHROUD SET A, L. TANK (TYPE1) (WL) | Extreme red R292R;

17555-K28-910ZA

$59.89

CAP ASSY., FUEL TANK

17620-GEL-770

$31.45

GASKET, FUEL CAP

17624-GEL-770

$4.58

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

TUBE, FUEL

17681-K28-910

$11.91

COLLAR, SEAT MOUNT

77207-KYK-910

$3.34

CUSHION, RR. FENDER

80103-MG2-000

$3.04

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

COLLAR, TANK MOUNT

90112-K28-910

$3.34

WASHER, TANK MOUNTING

90113-K28-910

$3.05

SCREW, SPECIAL (6X17)

90381-KCW-870

$3.28

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.49

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

CLAMP, TUBE (8.5)

90653-KSJ-A20

$1.49

BOLT, SPECIAL (6MM)

90653-KYK-910

$2.92

SCREW, TAPPING (4X12)

93913-24220

$1.49

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

WASHER, PLAIN (6MM)

94103-06800

$1.49
