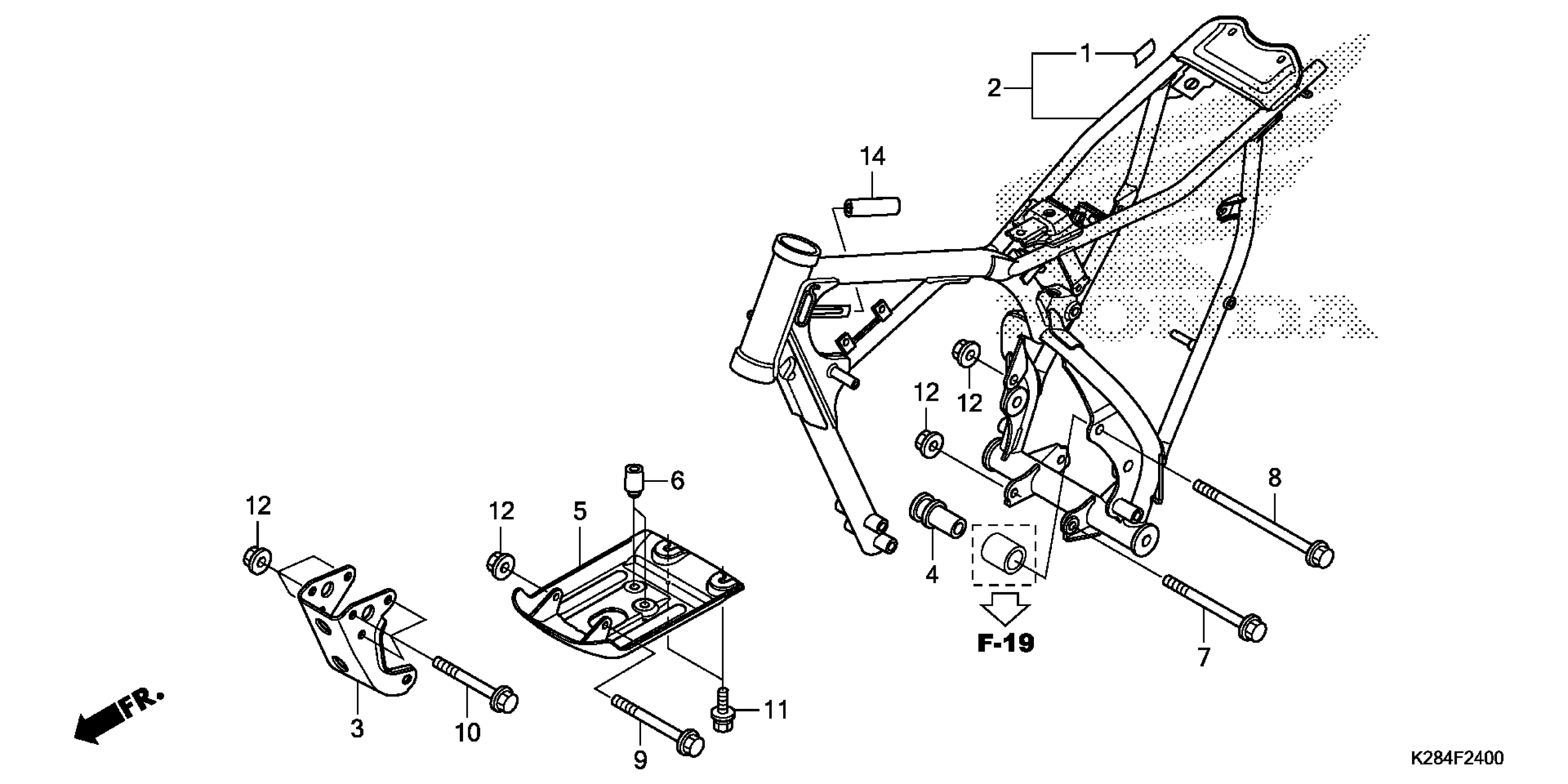

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 FRAME Diagram

FILM, PROTECTOR

17556-K28-910

$4.31

FRAME SET *NH132M* (MAX SILVER METALLIC) | Extreme red R292R;

50010-K28-910ZA

$583.57

PLATE, FR. ENGINE HANGER *NH132M* (MAX SILVER METALLIC) | Extreme red R292R;

50127-K28-910ZA

$41.54

COLLAR, L. RR. ENGINE HANGER

50136-K28-910

$7.53

PROTECTOR, CRANKCASE

50355-K28-910

$70.01

RUBBER B, STOPPER

50363-GN1-760

$4.28

BOLT, FLANGE (10X115)

90018-399-010

$6.94

BOLT, FLANGE (10X155)

90101-K28-910

$6.86

BOLT, FLANGE (10X100)

90103-K28-910

$6.04

BOLT, FLANGE (10X85)

90154-K28-910

$5.53

BOLT-WASHER (8X20)

93405-08020-08

$2.59

NUT, FLANGE (10MM)

94050-10000

$1.66

BULK HOSE, VINYL (9X11X3000) (9X11X100)

95003-25003-10M

Unavailable
