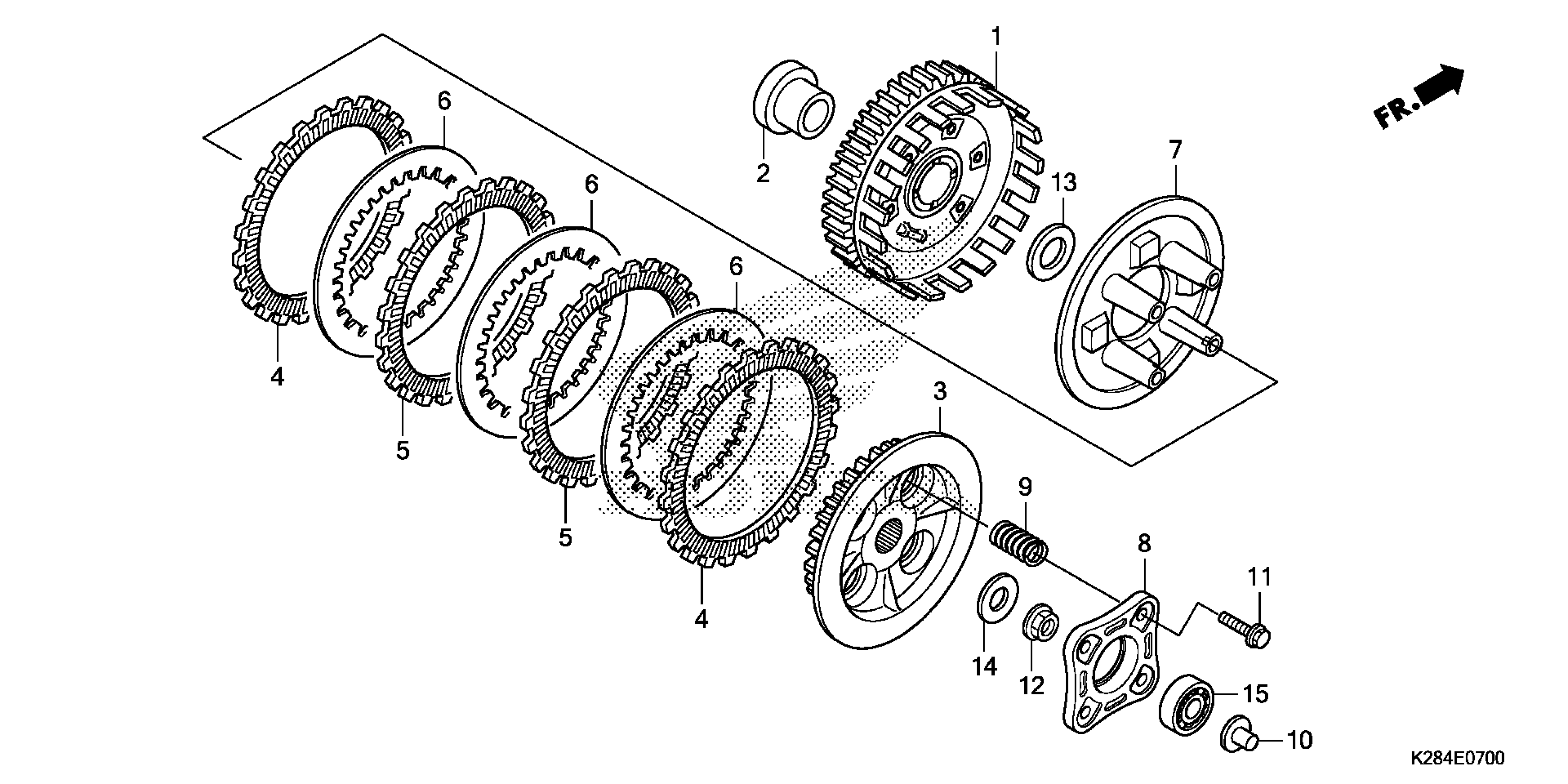

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 CLUTCH Diagram

CLUTCH OUTER

22100-KYY-901

$261.87

GUIDE, CLUTCH (OUTER)

22115-KWS-900

$14.13

CENTER, CLUTCH

22120-KWS-901

$61.72

DISK, CLUTCH FRICTION

22201-KWS-901

$8.53

DISK B, CLUTCH FRICTION

22204-KWS-901

$9.41

PLATE, CLUTCH

22321-KWB-601

$5.71

PLATE, CLUTCH PRESSURE

22355-KWS-901

$34.67

PLATE, CLUTCH LIFTER

22361-KFM-900

$6.56

SPRING, CLUTCH

22401-KYY-901

$4.17

ROD, CLUTCH LIFTER

22847-KCC-900

$5.83

BOLT, SPECIAL FLANGE (6X25)

90050-KFL-850

$0.93

NUT, SPECIAL FLANGE (14MM)

90202-KRM-840

$0.74

WASHER, THRUST (17MM)

90403-KPH-900

$0.94

WASHER (14.2X26X3)

90432-KPT-A00

$1.64

BEARING, RADIAL BALL (6200)

91016-KZV-J01

$8.86
