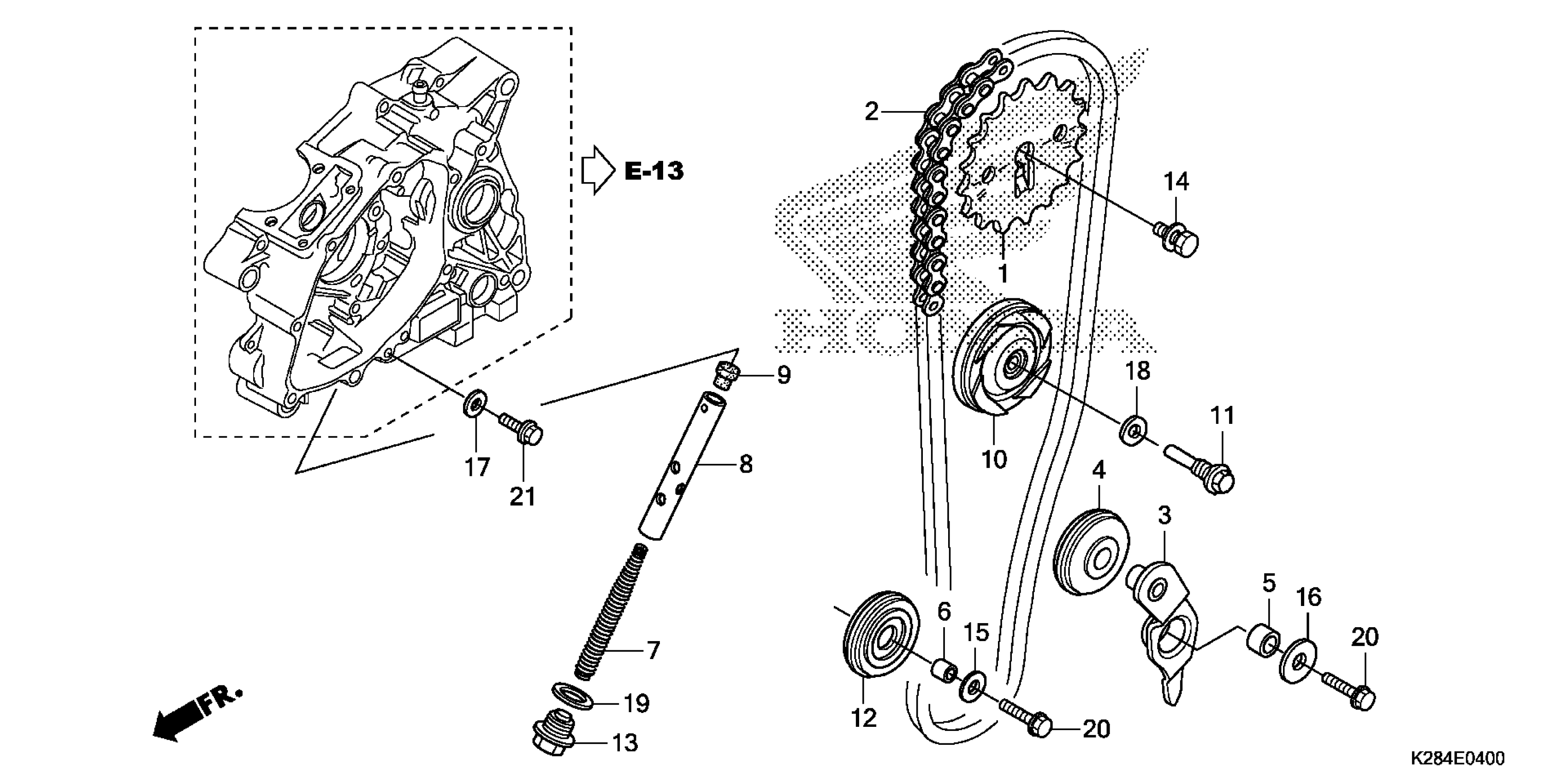

Honda CRF125FAC (17) CRF125F, CHN, VIN# LALJE031-H3300001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T)

14321-KYY-900

$34.56

CHAIN, CAM (90L) (DAIDO)

14401-KWB-601

$12.15

ARM, CAM CHAIN TENSIONER This part replaces 14500-KYY-900.

14500-KYY-901

$20.44

ROLLER, CAM CHAIN TENSIONER

14502-K28-911

$15.77

COLLAR, CAM CHAIN TENSIONER

14531-KYY-900

$2.26

COLLAR, CAM CHAIN ROLLER

14532-KWS-900

$2.26

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

ROD, TENSIONER PUSH

14550-KYY-900

$15.74

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

ROLLER, CAM CHAIN GUIDE

14610-KYY-901

$19.41

PIN, GUIDE ROLLER

14615-KFL-850

$1.49

ROLLER, CAM CHAIN GUIDE

14670-KYY-901

$19.59

BOLT, SEALING (14MM)

90081-035-000

$4.24

BOLT-WASHER (8X22)

90082-KYY-900

$1.87

WASHER, PLAIN (6.5X15)

90401-KYY-900

$2.30

WASHER (6.5X26X2.3)

90404-KYY-900

$2.70

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

WASHER (8MM)

90475-KWB-600

$1.49

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
