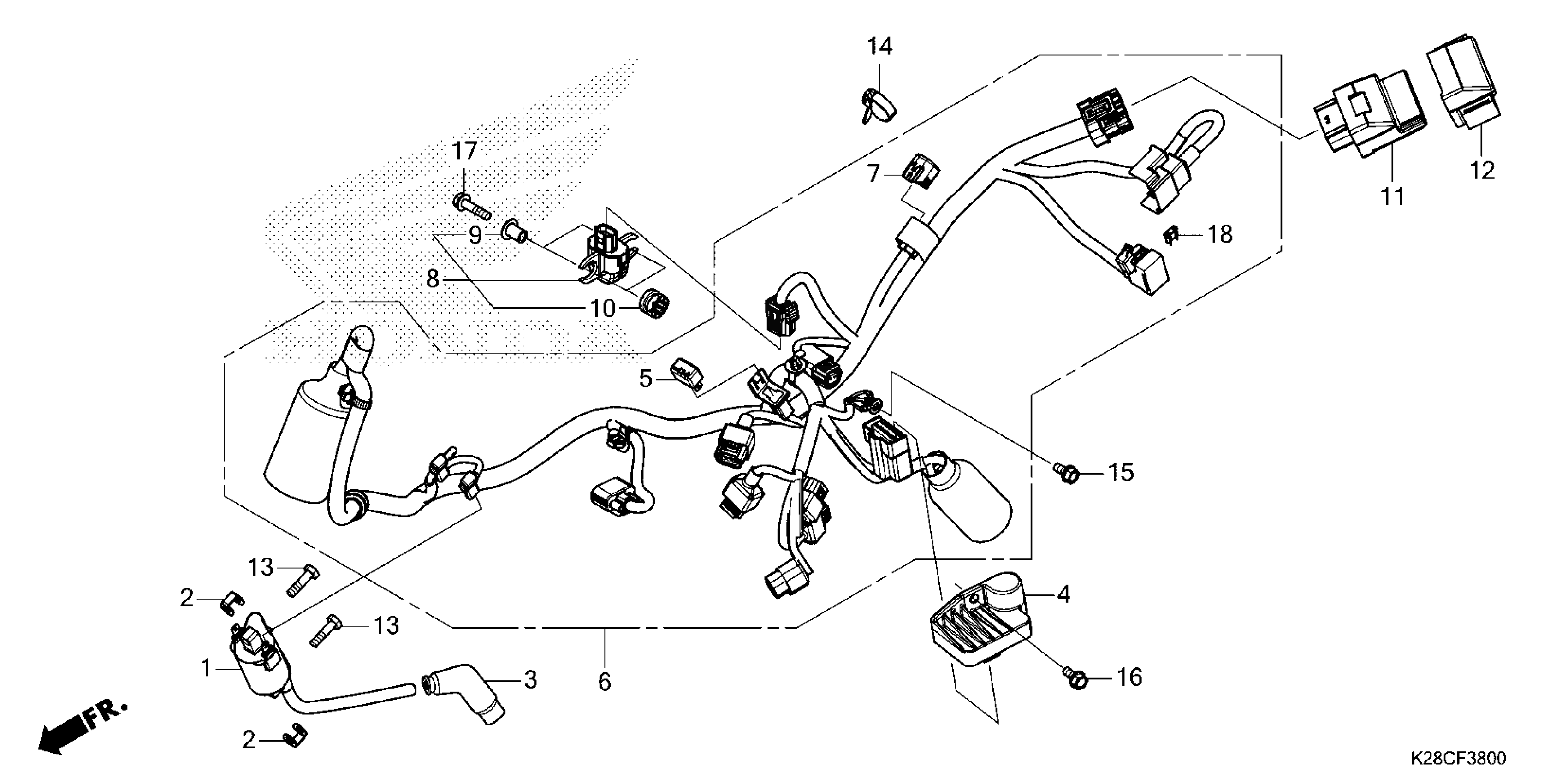

Honda CRF125FA (26) MOTORCYCLE, CHN, VIN# LALJE034-T3800001 TO LALJE034-T3899999 WIRE HARNESS Diagram

COIL, IGNITION

30510-K28-A61

$62.41

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-KYK-911

$27.23

RECTIFIER, REGULATE

31600-KZP-671

$166.74

RECTIFIER ASSY., SILICON

31700-KVX-701

$15.77

WIRE HARNESS

32100-K28-A60

$489.15

CONNECTOR, DUMMY (4P 090 M) (RED)

32606-GGC-C01

$4.77

SENSOR ASSY., BANK ANGLE

35160-KRE-G01

$84.36

COLLAR

35162-KRE-G00

$2.59

GROMMET

35163-KRE-G00

$21.72

PGM-FI UNIT

38770-K28-A62

$279.93

SUSPENSION, ENGINE CONTROL UNIT

38771-KVG-V40

$2.85

BOLT, HEX. (6X22)

90106-GFM-900

$2.05

BAND, WIRE

90650-KW3-000

$4.48

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.72

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.49
