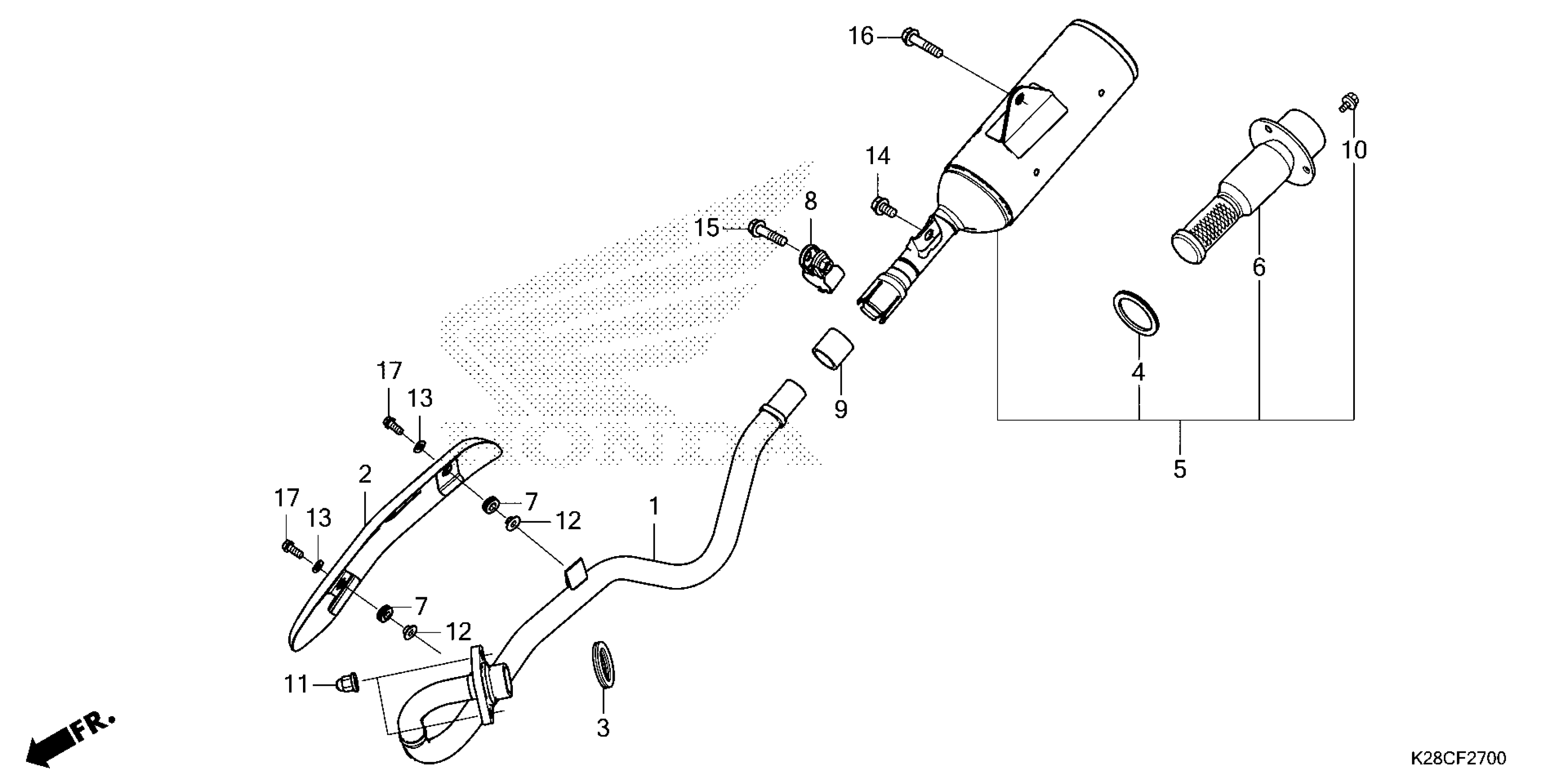

Honda CRF125FA (26) MOTORCYCLE, CHN, VIN# LALJE034-T3800001 TO LALJE034-T3899999 MUFFLER Diagram

PIPE, EX.

18210-K28-A60

$91.65

PROTECTOR, EX. PIPE

18240-K28-A60

$19.34

GASKET, EX. PIPE

18291-GE2-920

$6.18

GASKET A, EX. PIPE

18291-KR1-680

$8.00

MUFFLER ASSY.

18300-K28-A60

$230.60

ARRESTER, SPARK (COO)

18317-KYK-305

Unavailable

ARRESTER, SPARK (COO) This part replaces 18318-KYK-305.

18317-KYK-305

Unavailable

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

BAND, MUFFLER

18371-K28-A60

$30.09

GASKET, MUFFLER

18391-K28-A60

$11.93

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.63

BOLT, FLANGE (6X10)

96001-06010-07

$1.63

NUT, EX. PIPE (8MM)

90305-KSP-900

$3.06

COLLAR

90501-K28-910

$3.09

WASHER, PLAIN (6MM)

94101-06700

Unavailable

BOLT, FLANGE (8X14)

95701-08014-00

$1.21

BOLT, FLANGE (8X32)

95701-08032-00

$1.28

BOLT, FLANGE (8X35)

95701-08035-07

$1.29

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
